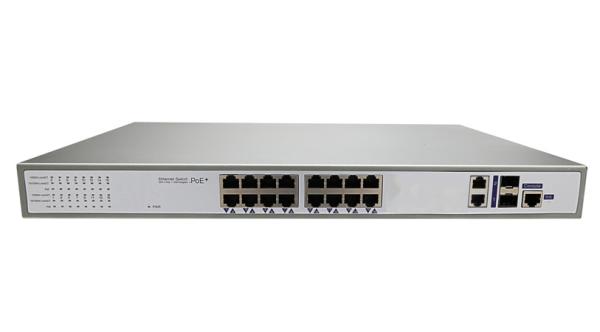

RJ45 100M Managed 16 Port PoE Ethernet Switch With 19 Inch Standard Cases
RJ45 100M Managed 16 Port PoE Ethernet Switch With 19 Inch Standard Cases
Specifications
Brand Name :
NEWBRIDGE
Model Number :
ND-PSN1116F-AT
Certification :
FCC,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Packaging Details :
packing can be done by customer's requested, usually used in carton
Delivery Time :
According to the quantiy and stocking , 3-4 working days after payment
Payment Terms :
T/T , Western Union
Supply Ability :
According to the different products , the monthly output is different
Price :
Negotiation
Poe Maximum power :
30 wawtts
Key words :
16
Total Power :
52V 8.7A 450W
size :
440*290*44mm
Transmission Rate :
10/100Mbps
Connector type :
RJ45
Description

RJ45 100M Managed 16 Port PoE Switch with 19 Inch Standard Cases

Non management*Compatible IEEE802 3af at,IEEE802 3az function*16 X 10 100Mbps RJ45 port*16 X PSE port, Output power up

Feature

Support IEEE802.3af/IEEE802.3at standard
802.3az support energy-efficient features
Automatically detect the PD
PoE port support a single output power up to 30W
Port power is automatically assigned
Dynaic Power Allocation

Specification

● 16 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports, Data transmission up to 100m
● Uplink port:2 Gigabit Ethernet port,Data transmission up to 100m, or 2 Gigabit Fiber Ports,Data transmission:depends on the optical module
● Maximum 30 watts power for each PoE port
● IEEE 802.3af, IEEE 802.3at PoE Standard Compliant.
● PoE Power Supply Type:End-Span(1/2+,3/6-)
●Total Power:52V8.7A 450W,build-in power supply

Connection diagram

RJ45 100M Managed 16 Port PoE Ethernet Switch With 19 Inch Standard Cases

Order information

Part No Description of product Unit
ND-PSN1116F-AT ND-PSN1116F-AT PoE Switch pcs
