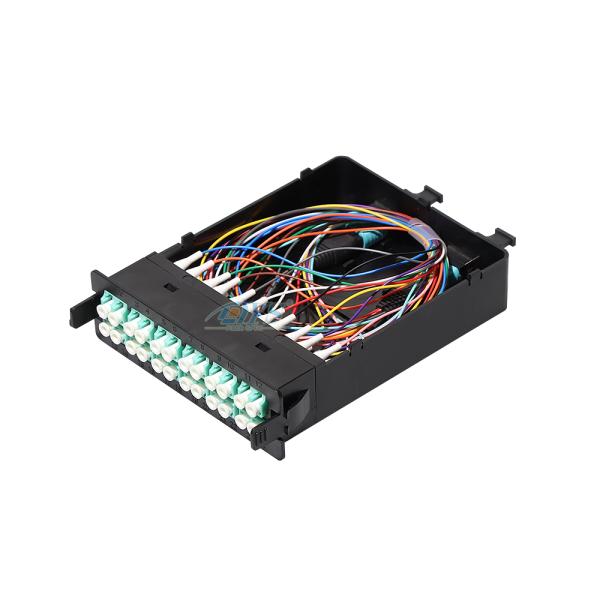

LGX MPO Cassette Module 24 Fiber MPO to LC Cassette for MPO Fiber Optic Patch Panel
LGX MPO Cassette Module 24 Fiber MPO to LC Cassette for MPO Fiber Optic Patch Panel
LGX MPO Cassette Module 24 Fiber MPO to LC Cassette for MPO Fiber Optic Patch Panel
LGX MPO Cassette Module 24 Fiber MPO to LC Cassette for MPO Fiber Optic Patch Panel
LGX MPO Cassette Module 24 Fiber MPO to LC Cassette for MPO Fiber Optic Patch Panel
LGX MPO Cassette Module 24 Fiber MPO to LC Cassette for MPO Fiber Optic Patch Panel
Specifications
Brand Name :
DYS/OEM
Model Number :
24 Fibers LC MPO Cassette LGX BOX
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T or L/C,Western Union
Supply Ability :
500000PCS / Month
Delivery Time :
3days
Packaging Details :
Individual box or according to customer's request
Adapter port :
MPO-LC
Product name :
Fiber Optic MPO Patch Panel Cassette
Fiber Count :
24 Cores
Color :
Black or Customized
MPO Gender :
Male
Fiber Type :
SM, OM3, OM4
Cassette material :
ABS+PC
Description

LGX MPO Cassette Module 24 Fiber MPO to LC Cassette for MPO Fiber Optic Patch Panel

Specification
Item
Parameter
Model Number
12 Fibers LC MPO Cassette LGX BOX
Brand Name
UNIKIT/OEM
Max Capacity
12/24 Cores
Connector Type
SC, LC, FC, ST, MTP, MPO
Pre-Connection
Optional
Material
ABS+PC
Insertion Loss
≤0.35dB (SM), ≤0.30 dB (MM)
Return Loss
≥60dB (SM), ≥30 dB(MM)
Wavelength
850nm~1310nm
Adapter Type
SM, OM3, OM4
Durability
≥500 Times
Color
Black or Customized

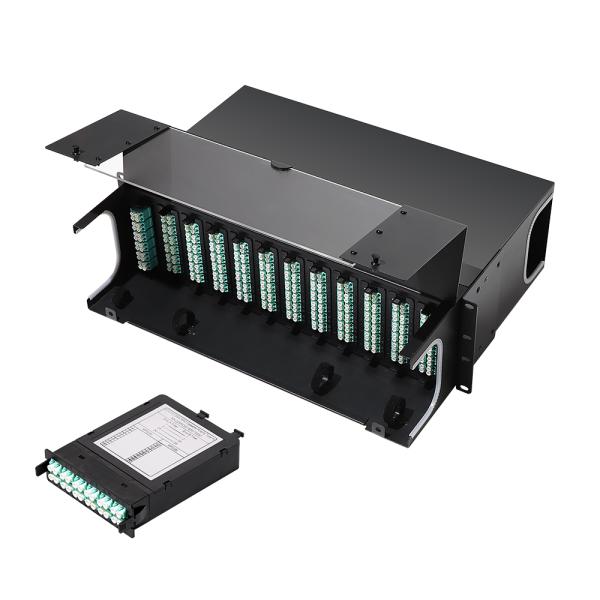

The MPO/MTP box can receive 6-24 optical fibers. These boxes are suitable for single-mode, multimode 62.5 and 50um, and laser optimized OM3 applications, and provide LC, SC, ST, FC, MTRJ connector types. The MPO/MTP box comes pre loaded with the required adapters and has zirconia ceramic sleeves for enhanced compatibility with all applications. The adapter is color coded according to the application used (blue=9/125; beige=62.5 and 50um; water=OM3; green=APC). All adapters are equipped with dust covers as standard.

LGX MPO Cassette Module 24 Fiber MPO to LC Cassette for MPO Fiber Optic Patch Panel

LGX MPO Cassette Module 24 Fiber MPO to LC Cassette for MPO Fiber Optic Patch Panel
