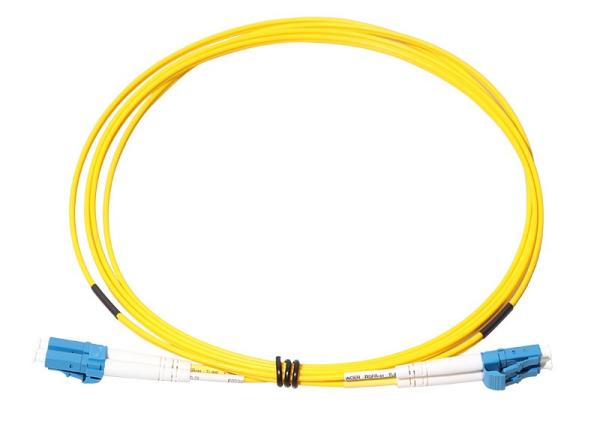

2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network
2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network
2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network
2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network
2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network
2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network
Specifications
Brand Name :
DYS/OEM
Model Number :
LC PC
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Product name :
LC to LC connector patch cord
Fiber count :
Duplex
Color :
Yellow
Application :
FTTH FTTB FTTX Network
Connector type :
LC
Length :
1m 2m 3m or Customized
Material :
PVC/LSZH
Quality control :
100% test before shipping
Fiber Type :
Single mode
Description

Shenzhen DYS 13 years LC to LC connector patch cord UPC duplex patch cord 2 core

Description
Fiber Optic Patch Cord is important of optical network.They have same or different connectors which are installed on the end of
fiber optic cable.The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill
your demand for the deployment.

Feature
> Price-Competitive
> Low Insertion Loss & PDL
> Factory-terminated and Tested
> Fiber Options:G.652/G.657/OM1/OM2/OM3 and
> Polishing Options:PC/UPC/APC> Feature Connector with Ceramic Ferrules

2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network

2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network

PRODUCT PARAMETERS

Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.30dB ≤0.20dB ≤0.20dB
Return Loss ≥50dB ≥60dB ≥30dB
Test Wavelength 1310/1550nm 850/1310nm
Durability(500 Matings) ≤0.2dB
Operating Temperature -40℃~+60℃
Storage Temperature -45℃~+85℃
Fire Resistant IEC 60794-2-30
Standards-Compliant ROHS,IEC and GR-326

Fiber type Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A,G657A2 (4)9/125-G657B3
Multimode: (5)50/125-OM2 (6)62.5/125-OM1 (7)50/125-OM3 (8)50/125-OM4 (9)50/125-OM5
Fiber Brand YOFC, Corning, Sumitomo, Fujikura
Connector SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type Simplex ,Duplex
Cable diameter 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket PVC, OFNR, LSZH, OFNP
length(M) 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized

2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network

2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network

2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network

2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network

2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network

2 Core UPC Duplex LC To LC Patch Cord For FTTH FTTB FTTX Network
