Plug type 1dB 3dB 5dB 10dB 20dB 25dB ST UPC Fiber Optic Attenuator For High Speed Fiber Optical Transmission System
Plug type 1dB 3dB 5dB 10dB 20dB 25dB ST UPC Fiber Optic Attenuator For High Speed Fiber Optical Transmission System
Plug type 1dB 3dB 5dB 10dB 20dB 25dB ST UPC Fiber Optic Attenuator For High Speed Fiber Optical Transmission System
Plug type 1dB 3dB 5dB 10dB 20dB 25dB ST UPC Fiber Optic Attenuator For High Speed Fiber Optical Transmission System
Specifications
Brand Name :
DYS/OEM
Model Number :
ST
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500000PCS / Month
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Connector type :
ST
Return Loss :
> 55dB (UPC) ≥ 65dB (APC)
Operational Temperature :
-40 to+ 75℃
Attenuation Tolerance :
1 to 10dB ± 0.5dB;11 to 30dB ±5%dB
operation wavelength :
1260 to 1650nm
Attenuation level range :
from 1 to 30dB
Description

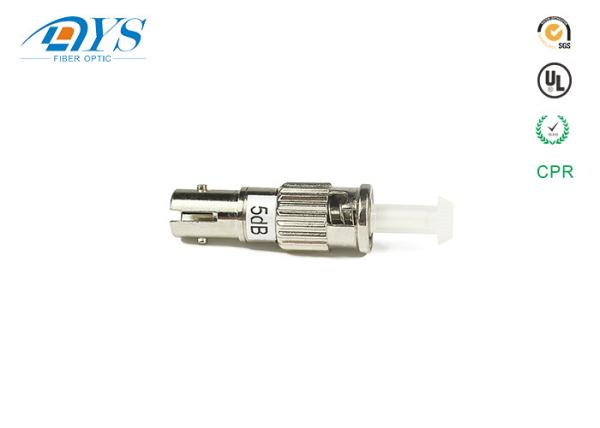

Fiber Optic female to male 3dB 5dB 7dB 10dB ST Attenuator

Available for Singlemode 9/125, Multimode 50/125 and Multimode 62.5/125 applications. Our Male to Female buildout Optical Attenuation (pads) are availabe in all fiber modes. LC attenuaros, ST, SC, LC/APC, SC/APC, FC and FC/APC types

Product Description

*Dope fiber technology
*Attenuation level is stable with temperature and wavelength
*Wide operation wavelength:1260 to 1650m
*Low back reflection
*High Durability over high power
*Attenuation level range from 1 to 30dB

Application

1)FTTH, LAN, PON & Optical CATV, Local ring net
2) Optical fiber communication system
3) Optical fiber test equipment
4)Optical fiber sensor
5) Industry and military application

Plug type 1dB 3dB 5dB 10dB 20dB 25dB ST UPC Fiber Optic Attenuator For High Speed Fiber Optical Transmission System

Item

Attenuation Value

1~30dB

Attenuation Precision

≤5dB±0.3dB, ≥10dB±1dB, ≥10dB±10%

Return Loss

PC≥55dB; APC≥60dB

Operation Wavelength

1310nm and 1550nm(SM)

Polarization Loss

≥0.1dB

Operation Temperature

-40℃~ +75℃

Storage Temperature

-40℃~ +85℃

Temperature(Un-encapsulation)

95%RH Apply Telecordia Standard(GR-910-CORE)
