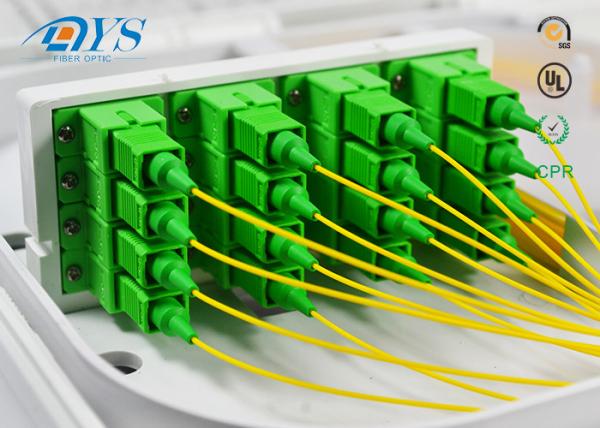

16 Ports FTTH Wall Mount Fiber Optic Termination Box
16 Ports FTTH Wall Mount Fiber Optic Termination Box
16 Ports FTTH Wall Mount Fiber Optic Termination Box
16 Ports FTTH Wall Mount Fiber Optic Termination Box
Specifications
Brand Name :
DYS/OEM
Model Number :
FTTH-005
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500000PCS / Month
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Product name :
8 12 16 24 cores Fiber optic distribution box
Adapter type :
SC Simplex
Operating temperature: :
-40℃~85℃
Size :
320*260*90mm
Cable diameter :
5mm-10mm
Material :
ABS OR PC
Type :
outdoor/indoor Wall mountable
Adaptor ports :
12, 16, 24port
Connector suit :
SC, ST, FC
Description

FTTH - 004 16 Ports FTTH Wall Mount Fiber Optic Joint Box Fiber Optic Termination Box China Supplier

FEATURES

Industry Standard User Interface, be made of high impact plastic.

Can accommodate 1x8 & 1X16 PLC splitter.

Anti-UV, Ultra violet resistant and rainfall resistant.

Up to 16 FTTH drops.

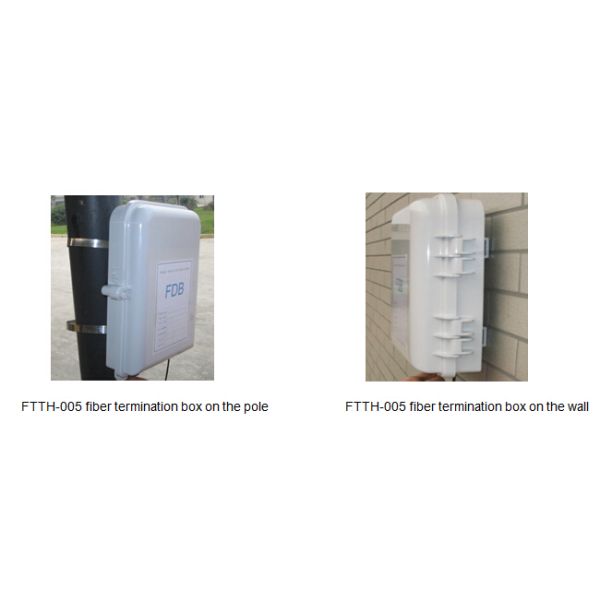

Wall and pole mountable.

2 inlet ports, 16 outlet ports.

Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.

Job stress: 70 kpa to 108 kpa;

Using the temperature:- 40 ~ + 60 ℃

Relative humidity: ≤95% (+ 40 ℃).

Protection grade: IP55.

APPLICATION

widely used in FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks

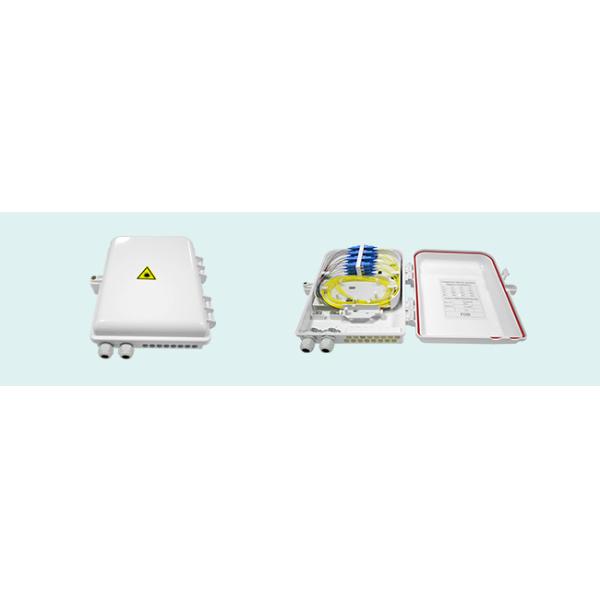

16 Ports FTTH Wall Mount Fiber Optic Termination Box

MECHANICAL DATA

 Material............................... PC

 Dimensions

Model Capacity Size
FTTH-005 16 port 260mm(W)x320mm(D)x90mm(D)

PRODUCT CONFIGURATION LIST:

Product Name Specifications Quantity Note
Box FTTH-005 1 PC
Optical fiber heat shrinkable casing Ф1.2×40mm 16PCS
Nylon cable tie 3×100mm 8 PCS
Expansion bolt M8×40mm 4 EST
Key 1 PC

PACKING INFORMATION

Model N.W (kg/pcs) Dimension of outer carton (mm) G.W of outer Carton (kg/carton) No of Products (pcs/carton)
FTTH-005 1.15 550*340*560 14.1 10

16 Ports FTTH Wall Mount Fiber Optic Termination Box
