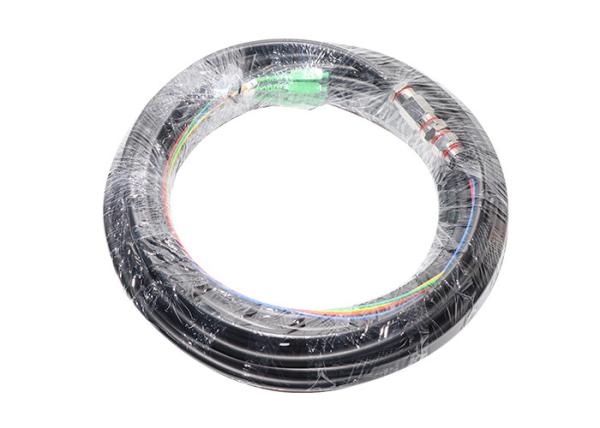

2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail
2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail
2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail
2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail
2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail
2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail
2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail
2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail
2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail
2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail
Specifications
Brand Name :
DYS/OEM
Model Number :
SC Outdoor Waterproof Pigtail
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Connector :
SC LC FC ST
Insertion loss :
IL<0.2db
Return Loss :
UPC 60dB
Function :
equipment connecting
Durability :
≥1000matings
Application :
FTTH FTTB FTTX Network
Material :
PVC/LSZH
Quality control :
100% test before shipping
Real factory :
Yes
Description

2/4/8/12/24 Core SM Outdoor Waterproof Fiber Optic Pigtail

Description

The waterproof optical fiber pigtail is composed of high-quality connector, high-quality waterproof optical cable and qualified waterproof copper connector assembly. It has the characteristics of strong environmental adaptability, convenient installation, long service life, high tensile strength and good grounding. Due to its strong water resistance, it can work normally even under many harsh conditions. The waterproof fiber pigtail can be configured with FC, SC, LC, St, mu, MTRJ, SMA and other connectors according to the specific requirements of customers.

Characteristics
1. Fiber core: 2, 4, 6, 8,12 24 or customized
2. Waterproof features & reliable performance
3. Pull & erosion resistance, good grounding
4. Low insertion loss, high return loss, excellent exchangeability, high stability
5. The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction.

Application scope of the product
The data transfer.
Telecommunication network.
Test equipment.
Mixer broadband network.
CATV

2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail

PRODUCT PARAMETERS

Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.30dB ≤0.20dB ≤0.20dB
Return Loss ≥50dB ≥60dB ≥30dB
Test Wavelength 1310/1550nm 850/1310nm
Durability(500 Matings) ≤0.2dB
Operating Temperature -40℃~+60℃
Storage Temperature -45℃~+85℃
Fire Resistant IEC 60794-2-30
Standards-Compliant ROHS,IEC and GR-326

Fiber type Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A,G657A2 (4)9/125-G657B3
Multimode: (5)50/125-OM2 (6)62.5/125-OM1 (7)50/125-OM3 (8)50/125-OM4 (9)50/125-OM5
Fiber Brand YOFC, Corning, Sumitomo, Fujikura
Connector SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type Simplex ,Duplex
Cable diameter 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket PVC, OFNR, LSZH, OFNP
length(M) 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized

2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail

2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail

2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail

2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail

2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail

2 4 8 12 24 Core SM Outdoor Waterproof Fiber Optic Pigtail
