Outdoor IP67 Waterproof Duplex ODVA LC Adapter
Outdoor IP67 Waterproof Duplex ODVA LC Adapter
Outdoor IP67 Waterproof Duplex ODVA LC Adapter
Outdoor IP67 Waterproof Duplex ODVA LC Adapter
Outdoor IP67 Waterproof Duplex ODVA LC Adapter
Outdoor IP67 Waterproof Duplex ODVA LC Adapter
Outdoor IP67 Waterproof Duplex ODVA LC Adapter
Outdoor IP67 Waterproof Duplex ODVA LC Adapter
Specifications
Brand Name :
DYS/OEM
Model Number :
Odva LC Adapter
Certification :
IS09001-2015.ROHS
Place of Origin :
Shenzhen（China）
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T or L/C,Western Union or Paypal
Supply Ability :
500000PCS /DAY
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Model NO.: :
ODVA LC adapter
Type: :
Fiber Optic Adapter
Certification: :
ISO
Condition: :
New
Specification: :
IP67
Transport Package: :
Standard Carton
Product name :
fiber optic adapter
Type :
Single mode/ Multi-mode
Application :
FTTH FTTB FTTX Network
Connector type :
SC,MPO,LC
Description

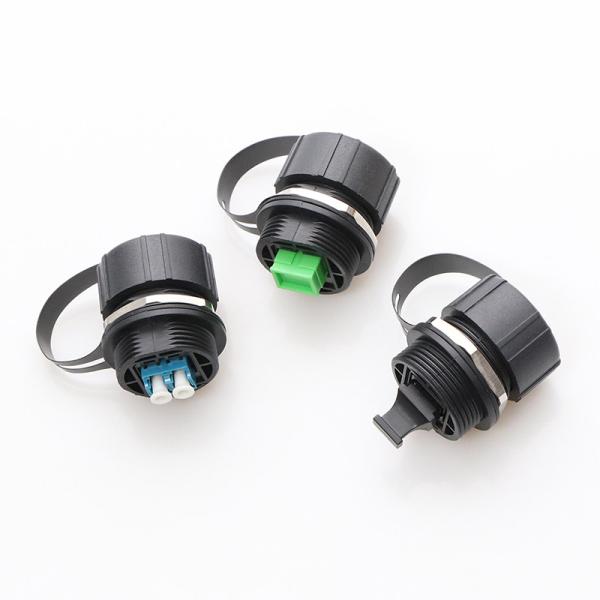

Duplex Outdoor Water-Proof Fiber Optic IP67 Odva LC Adapter

The IP67 LC ODVA waterproof adapter is used for harsh industrial or outdoor environments, mounts case side to panel or enclosure, female simplex singlemode LC pass-thru receptacle to female duplex LC connectors, quick-release quarter-turn bayonet locking to cable shield, gasket seals provide IP67 rated water tight and dust free protection.

Applications

· CATV networks

· LAN

· Fiber optic transmission system

· Testing/Measurement Instruments

· Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets

Feature

· With excellent handling at high packing density

· Bulkhead adaptor

· Self-retentive mechanism enables

· Low the ferrules compression force off the back panel

　Operating Performance Outdoor LC ODVA Waterproof Adapter
PC APC
Insertion Loss (dB) < 0.3 < 0.3
Durability (500 Mating) (dB) < 0.1 < 0.1
Operation Temperature (°C) -40 to 80 -40 to 80
Retention Force (N) 200-600 200-600
Tensile Strength (kgf) 10 10
Housing Material PC PC
Mounting Style Screw/Clip Screw/Clip
Sleeve Alignment Material Ceramic (Grade A) Ceramic (Grade A)
Housing Color Black Black

Outdoor IP67 Waterproof Duplex ODVA LC Adapter

Outdoor IP67 Waterproof Duplex ODVA LC Adapter

Outdoor IP67 Waterproof Duplex ODVA LC Adapter

Outdoor IP67 Waterproof Duplex ODVA LC Adapter

Outdoor IP67 Waterproof Duplex ODVA LC Adapter
