Specifications
Brand Name :
DYS/OEM
Model Number :
CPRI Patch cord
Certification :
IS09001-2015.ROHS
Place of Origin :
Guangdong, China (Mainland)
Payment Terms :
L/C, T/T, Western Union
Inserion Loss :
IL<0.2dB
Connector type :
CPRI ,LC
Fiber Type :
OS2,OM1,OM2,OM3
Cable jacket size :
7.0mm, 4.5mm
Operating Temp :
-40 to +85 degree
Certifaction :
RoHS,ISO9001
MOQ :
Negotiable
Price :
Negotiable
Description

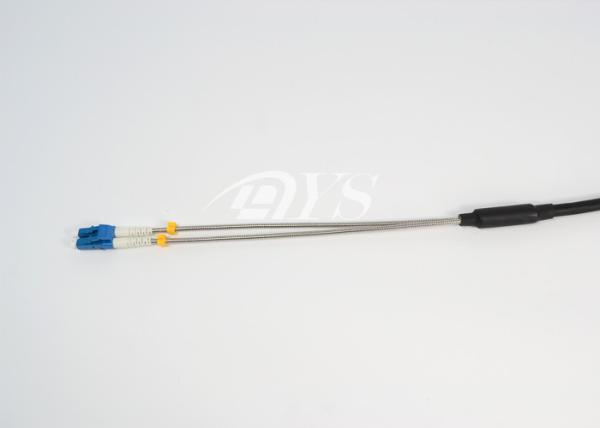

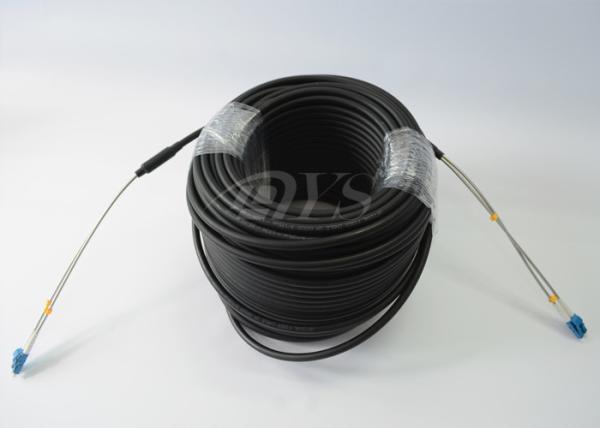

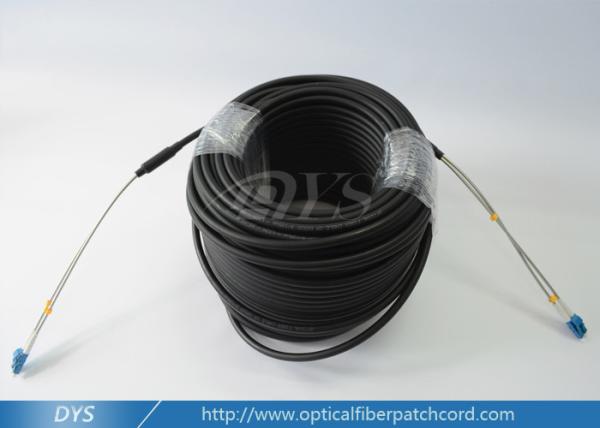

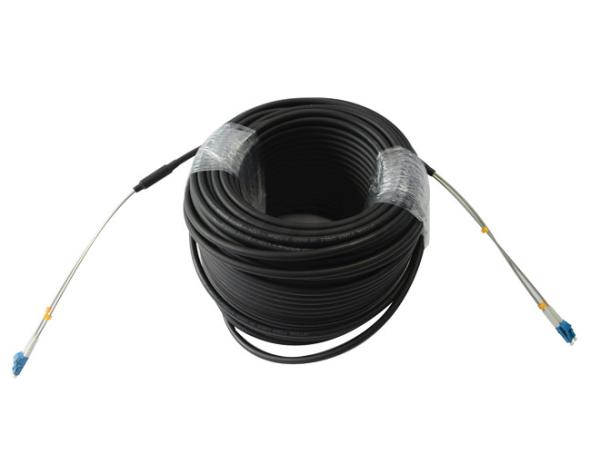

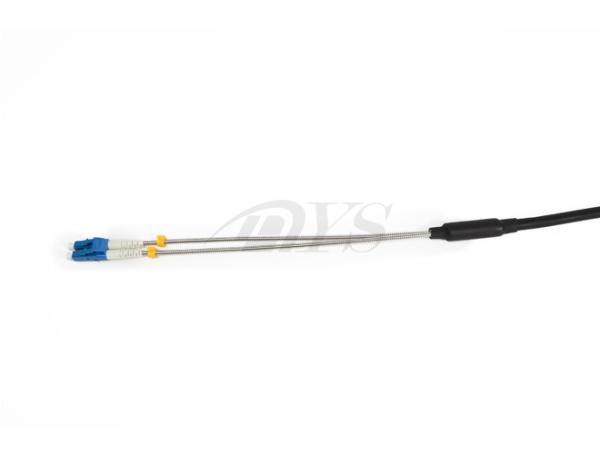

CPRI - FTTA Outdoor Fiber Optic Cable Assemblies With RoHS , UL

1. Feature:CPRI - FTTA Outdoor Fiber Optic Cable Assemblies With RoHS UL Certifaction

1> FTTA , WiMax base station,CATV outdoor Application;

2> Optional Diameter:4.8mm,7.0mm or Customized;

3> Optional Jacket:LSZH,PE.,Armoured or Non Armoured;

4> IP67 Waterproof protection;

CPRI - FTTA Outdoor Fiber Optic Cable Assemblies With RoHS UL Certifaction

2. Drawing:

ITEM

Description

Q'TY

1

2Core Indoor/Outdoor Fibers cable

1 PCS

2

Break Out Kits

2 PCS

3

3.0mm Armoured Tube

4 PCS

4

LC Boot

4 PCS

5

LC Duplex Clips

2 PCS

6

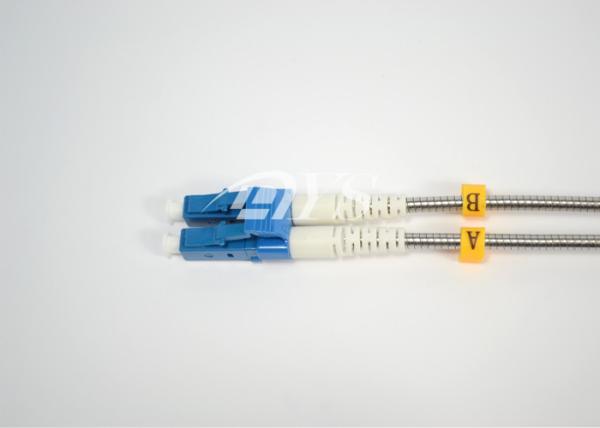

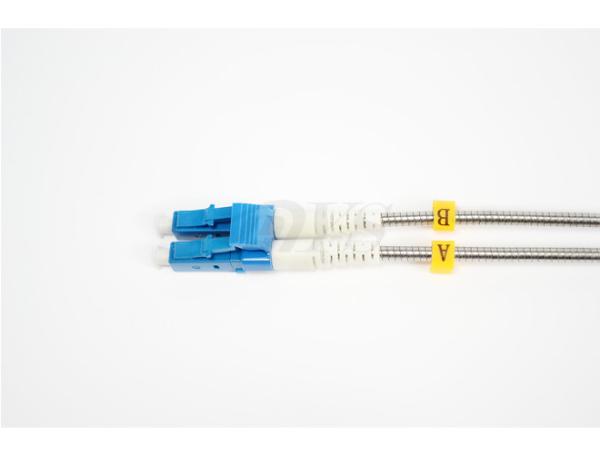

LC/UPC SM duplex connector blue

2 PCS

3. Assembly Performance:

Item

Data

Insertion Loss

≤0.2dB

Return Loss

SM/UPC≥55dB,SM/APC≥65dB,MM≥35dB

Mechanical life

500cycles

Working temperature

-40°C~+70°C

Storage temperature

-40°C~+70°C

Operating temperature

-10°C~+50°C

Protection Level

IP67

Tensile Data

Tensile between junction and fiber cable≥100N

Authentication

Meet with RoHS

4. Cable Specification:

Item

Data

fiber

OS2,OM1,OM2,OM3,OM4

Tension member

Aramid Kevlar,Armoured Tube

Max. attenuation

SM:≤0.34dB/km at 1310nm,≤0.20dB/km at 1550nm

MM:≤0.60dB/km at 1300nm,≤2.3dB/km at 850nm

Tensile resistance(short term)

500N(no breakage)

Crush resistance(short term/long term)

1000N/100mm

inflaming retarding

IEC 60332-3

Temperature

-40~+70°C

Uvioresistant

PASS

Authentication

Meet with RoHS &UL
