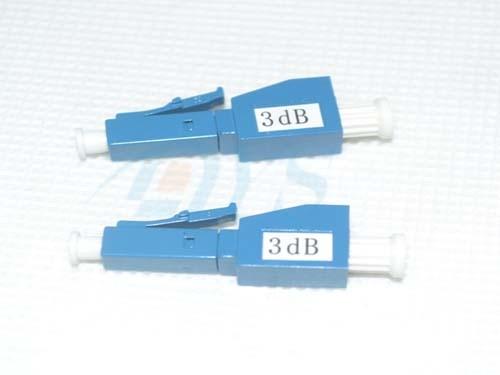

Singlemode LC 3dB Optical Attenuator Male to Female LC / UPC 1240nm - 1620nm
Singlemode LC 3dB Optical Attenuator Male to Female LC / UPC 1240nm - 1620nm
Specifications
Brand Name :
DYS/OEM
Model Number :
LC/UPC
Certification :
ISO9001
Place of Origin :
GuangDong Cina
MOQ :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50000/week
Delivery Time :
in 3 days
Packaging Details :
Individual Box or According to Customer's Request
Price :
Negotiable
Wavelength :
1240nm - 1620nm
Warranty :
1 Year
Connector type :
LC SC FC ST
Product name :
Optical Attenuator
Material :
Plastic
Description

Singlemode LC 3dB Optical Attenuator Male to Female LC / UPC 1240nm - 1620nm

Quick Detail:

Name:LC/UPC

values:3-20dB

Brand Name: DYS/OEM

Delivery Detail:In 3 days

Singlemode Male to Female fiber optic LC/UPC attenuator

1: Fixed plug in optical attenuators (Fixed Build-out or Fixed Male to Female) use doped fiber to provide fixed level of optical attenuation.
2: Typical attenuation values are between 3 and 20 dB.
3: It is used in optical systems where the optical power from a source is too high for the test equipment in use.
4: Fixed plug type fiber attenuator provides a connector plug (male) and an adapter socket (female) to connect between fiber patch cord and fiber adapter.
5: Fixed plug type optical attenuator introduces an in-line fixed loss that will reduce the source power to an acceptable detection level.
6: The attenuation level should be stable with temperature and wavelength for a stable reliable system.
Detail:

Our Fixed plug type Optical Attenuators and our Fixed In-Line Optical Attenuators are devices that convert optical power into heat using specialty Metal Ion Doped Optical Fibers allowing the optical power to be attenuated to a desired level.

Specifications:

Attenuation Value 1dB ~ 30dB

Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm)

Premium

Return Loss

UPC >55dB

APC >65dB

Attenuation

Accuracy

1 ~ 7 dB ±0.5dB

8 ~ 12 dB ±0.7dB

13 ~ 17 dB ±1.0dB

18 ~ 25 dB ±1.3dB

Maximum Optical Input Power 1000mW

Polarization Dependent Loss ≤0.1dB

Operating Temperature Range -40 to 75

Storage Temperature Range -40 to 85

Humidity 95%RH

Singlemode LC 3dB Optical Attenuator Male to Female LC / UPC 1240nm - 1620nm

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
