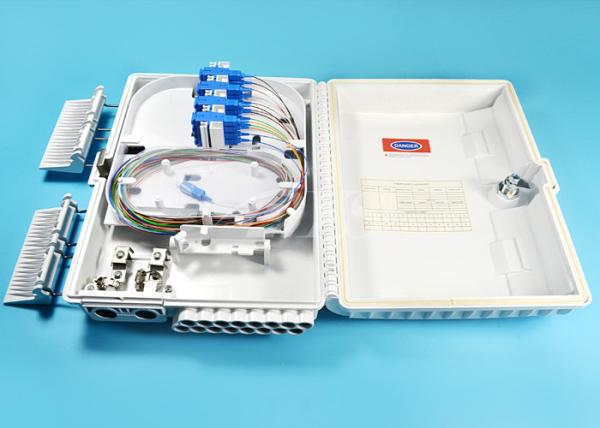

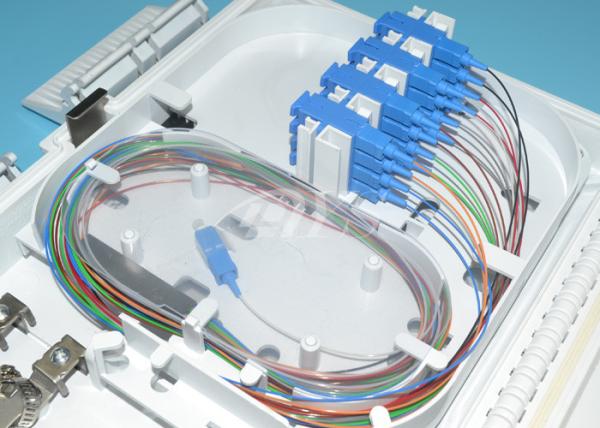

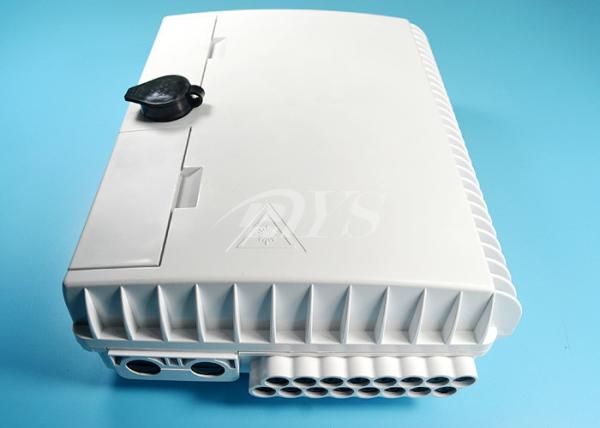

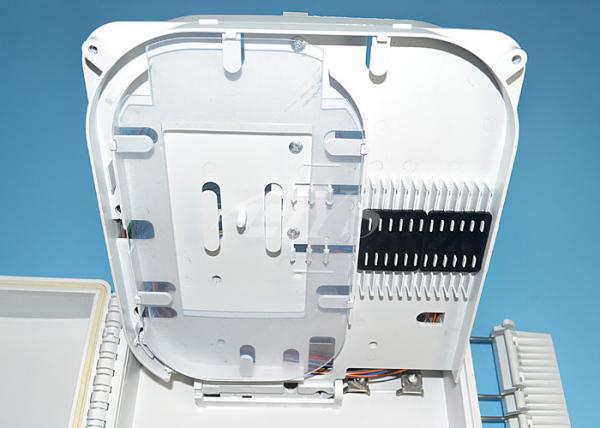

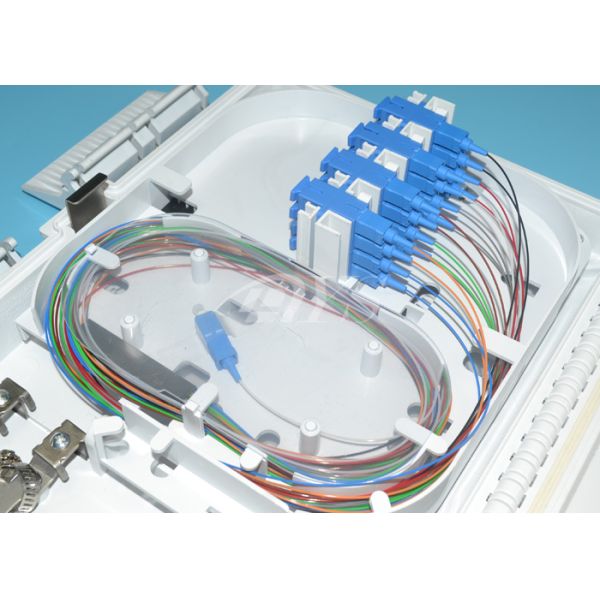

16 Core Outdoor Waterproof Fiber Optic Distribution Box / Closure Pc Material
16 Core Outdoor Waterproof Fiber Optic Distribution Box / Closure Pc Material
16 Core Outdoor Waterproof Fiber Optic Distribution Box / Closure Pc Material
16 Core Outdoor Waterproof Fiber Optic Distribution Box / Closure Pc Material
16 Core Outdoor Waterproof Fiber Optic Distribution Box / Closure Pc Material
16 Core Outdoor Waterproof Fiber Optic Distribution Box / Closure Pc Material
16 Core Outdoor Waterproof Fiber Optic Distribution Box / Closure Pc Material
16 Core Outdoor Waterproof Fiber Optic Distribution Box / Closure Pc Material
Specifications
Brand Name :
DYS/OEM
Model Number :
FTTH - 024
Certification :
IS09001-2015.ROHS
Place of Origin :
shenzhen
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500000PCS / Month
Delivery Time :
3-5 work days
Packaging Details :
Individual box or according to customer's request
Model Number: :
Terminal box
Name: :
Fiber optic clean air
Certification: :
ISO9001:2008, ROHS
Material: :
PC
Transport Package: :
260mm(W)x320mm(D)x90mm(D)
Operating temperature: :
-40℃~85℃
Origin: :
China
Type :
iber Optic Distribution Box
Description

16 Core Outdoor Waterproof Fiber Optic Distribution Box / Closure Pc Material

Introduction

Fiber optic distribution box is use for the joint of backbone optic cable and branching fiber cables, realize reserve and direct transmission of backbone optic cable and branching fiber cables at node and distribution and dispatching of fibers. The max capacity is 96 cores, and it can be used for both single core and ribbon optic fiber cable, adapt to all kinds of urban construction planning needs.

Environmental temperature:-40℃~+60℃

Relative humidity:≤95%(+40℃)

Insulation resistance between box and earth device:>2×104MΩ/500VDC

Voltage resistance strength between box and earth device:non-puncture, no arc-over under 3KVDC/1min.

Work environmental temperature -40℃~60℃
Work environmental atmosphere pressure 70kpa~106kpa
Body material Stainless steel
Grade of Protection IP55(body),IP68(cable inlet)
Connector intrusive loss ≤0.18dB
Plug durability lifetime >1000times
Echo Loss (FC/PC) ≥40dB
Echo Loss (FC/APC) ≥50dB
Echo Loss (FC/UPC) ≥60dB

Unti-vibration performance

Vibration range:≥0.6mm

Vibration frequency:≥80

acceleration:≥15m/s2 (X,Y,Z three directions)

Time:≥3h

No mechanical damage, reliable contact , stable performance.

16 Core Outdoor Waterproof Fiber Optic Distribution Box / Closure Pc Material

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
