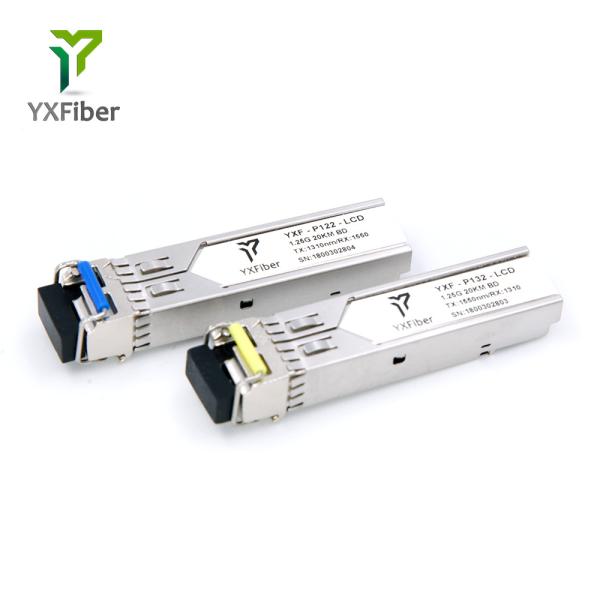

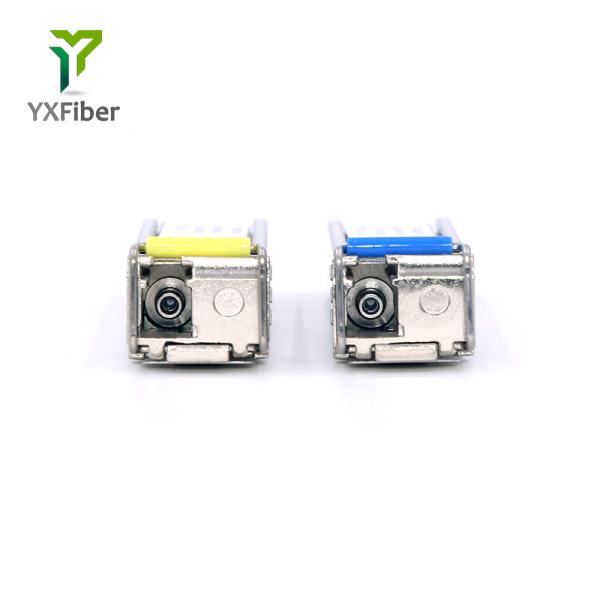

Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module
Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module
Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module
Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module
Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module
Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module
Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module
Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module
Specifications
Place of Origin :
Hubei, China
Brand Name :
YXFiber
Model Number :
YXF-P122-LCD/YXF-P132-LCD
Certification :
RoHS, ISO9001
Supply Ability :
8000 Piece/Pieces per Day
Packaging Details :
10pcs/ anti-static box
MOQ :
1.0 Pair/Pairs
Price :
$8.00 - $12.00 / Pair
Type :
Fiber Optic Transceivers
No. of Fiber :
1.
Use :
FTTH
Supply Voltage :
3.3V
Power :
-3~-9dBm
Data rate :
1.25Gbps
Wavelength :
1310nm/1550nm
Transmission distance :
20km
Interface :
BIDI LC
Fiber Type :
SMF
DDMI :
yes
Warranty :
3 years
Port :
Wuhan
Description

Product Description

Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module

SFP 1.25G 20km 1310 / 1550nm SFP Module BIDI LC DDM

Features:

1. Industry standard Small Form Pluggable (SFP) package.

2. Digital diagnostic monitor interface compliant with SFF-8472.

3. 1310nm FP/1550nm DFB Laser and PIN receiver.

4. Very low EMI and excellent ESD protection.

5. Power consumption less than 1.0W.

6. Hot-pluggable capability.

Advantages:

1. The transceiver is a low power, high performance, cost effective module supporting data-rate up to 1.25Gbps 20km transmission distance.

2. The low jitter and high sensitivity are extinguished advantages with 1310nm FP/1550nm DFB

LD and PIN/TIA receiver.

3. The transceiver incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions.The devices are Class I laser safety compliant.

Parameter Symbol Min Max Unit
Storage Temperature TSTG -40 85 ºC
Ambient Operating Temperature TA 0 70 ºC
Optical Rise/Fall Time Tr /Tf - 0.26 ns
Eye Diagram IEEE 802.3z and ANSI Fibre Channel Compliant
Power Supply Current Icc - 200 mA
Extinction Ratio ER 9 13 dB
Sensitivity S - -23 dBm
Warning assert>-34dBm,de-assert<-26dBm

Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module

Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module

Application

Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module

Our Advantages

Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module

Related Products

Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module

Company Information

Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module

Production Flow

Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module

Packaging & Shipping

Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module

FAQ

Small Form Factor Pluggable 20km SMF Fiber Optic Transceiver Module
