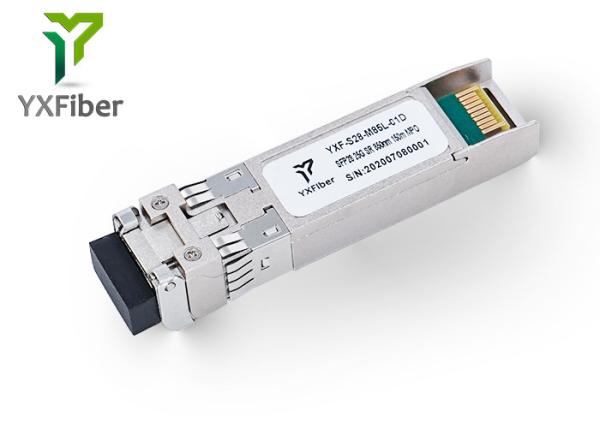

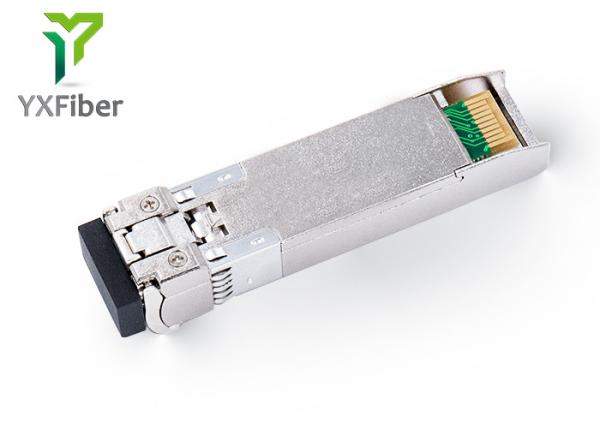

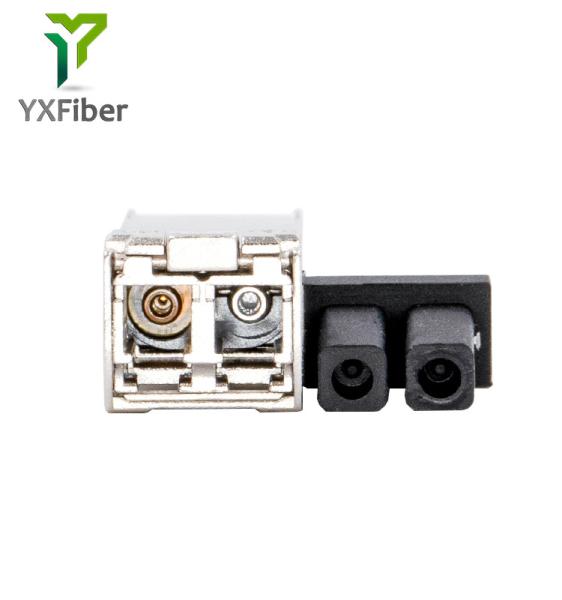

850nm 150m Multi Mode SFP Module 25G SFP28
850nm 150m Multi Mode SFP Module 25G SFP28
850nm 150m Multi Mode SFP Module 25G SFP28
850nm 150m Multi Mode SFP Module 25G SFP28
850nm 150m Multi Mode SFP Module 25G SFP28
850nm 150m Multi Mode SFP Module 25G SFP28
Specifications
Brand Name :
YXFiber
Model Number :
YXF-S28-M85L-01D
Certification :
CE RoHS FCC
Place of Origin :
Hubei, China
MOQ :
1pcs
Price :
$20 / Piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
1~3working days after payment
Packaging Details :
10pcs in Plastic tray
Type :
Optical Fibers
No. of Fiber :
2.
Use :
FTTX
Fiber type :
Mutimode
Connector Type :
MPO
Data Rate :
25Gbps
Wave length :
850nm
Distance :
150m
Selling units :
single
Warranty :
1 year
Output power :
-8.4~-2.4dBm
DDMI :
Yes
Description
25G SFP28 Duplex 100m 850nm MPO Connector

Features

l Up to 100m transmission on MMF

l Up to 25Gbps

l 850nm VCSEL laser and PIN receiver

l SFI electrical interface

l 2-wire interface for integrated Digital Diagnostic monitoring

l SFP+ MSA package with duplex LC connector

l Hot pluggable

l Very low EMI and excellent ESD protection

l +3.3V power supply

l Power consumption less than 1.0W

l Operating case temperature: 0~+70°C

Technical Parameters Descriptions Technical Parameters Descriptions
Model Number YXF-S28-M85L-01D Interface LC
Fiber type MMF Laser/Detector VCSEL/PIN
Form Factor MPO DDM Yes
Data Rate 10Gbps Output Power -8.4~-2.4dBm
Wavelength 850nm Power Supply 3.3V
Distance 150m Temperature 0~70°C
Warranty 1 Year Certificate CE,ROHS,FCC,ISO9001,SGS
Production Flow

850nm 150m Multi Mode SFP Module 25G SFP28
