Specifications
Brand Name :
FT
Model Number :
GFS-8ZT-2
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T
Delivery Time :
15 WORK DAYS
Packaging Details :
CARTON
Description

1,Description:

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

2,Features:

  • Total enclosed structure.
  • Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP54.
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
  • Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.

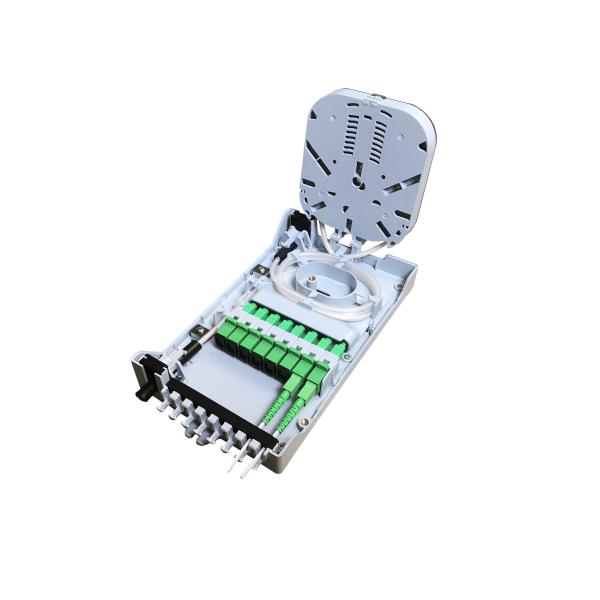

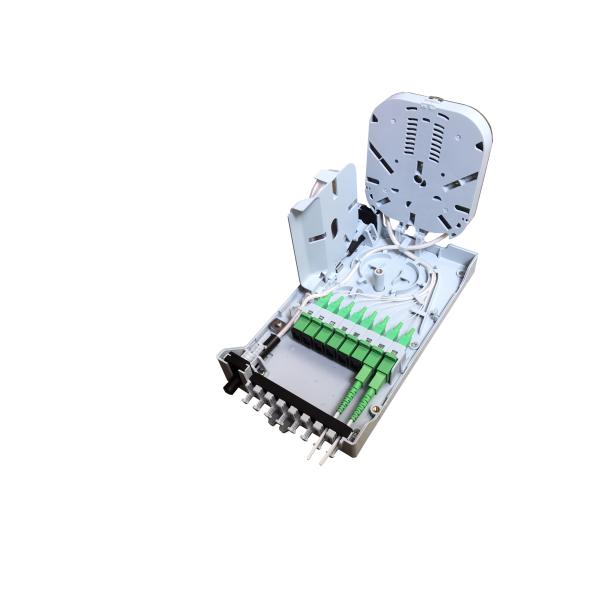

  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
  • Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

3,Specification:

1,Environmental requirement

Working temperature:-40℃～+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa～106Kpa

2,Main technical datasheet

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:＞1000 times

3,Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC)；IR≥2MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover；U≥3000V

4,Configuration table:

Model Size(Pic 1)A*B*C(mm) Max Capacity Installation SizeD (mm) Into the largest cable diameter (mm)

Cable outlet size

(mm)
8 CORE 235*126*52 8 225 10 Ø5
