Specifications
Brand Name :
FT
Model Number :
GFS-24QX
Certification :
ROSH
Place of Origin :
CHINA
MOQ :
100PCS
Price :
10-25USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000PCS/DAY
Delivery Time :
15-30 DAYS
Packaging Details :
CARTON
material :
PP or PC+ABS.
COLOR :
BLACK OR GREY OR CUSTOMIZATION
IP :
68
CAPACITY :
max 72CORES
Description

1.1 Description

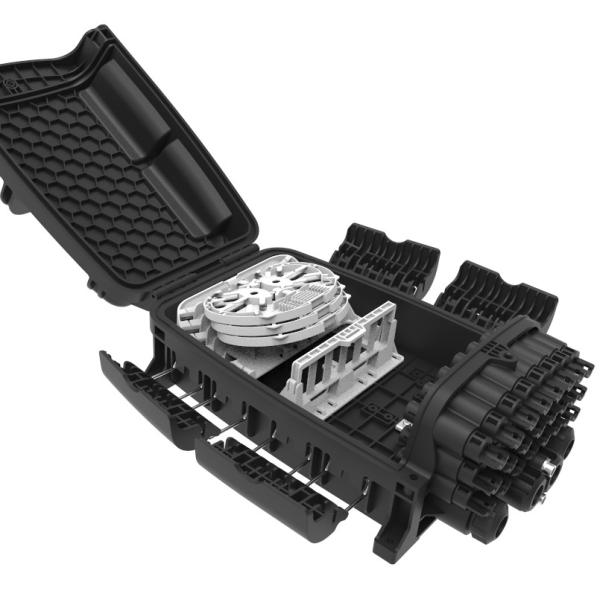

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Production type Classification
GFS-24QX Optical fiber cable distribution box

2. Characteristics

2.1. Advanced structure design, easy operation and reasonable routing.

2.2. Material: PP or PC+ABS.

2.3. Moisture proof, waterproof, dust-proof, anti-aging.

2.4. Protection level up to IP68.

2.5. 1 oval optical cable entry, 2 branch optical cable entries and 24pcs of household

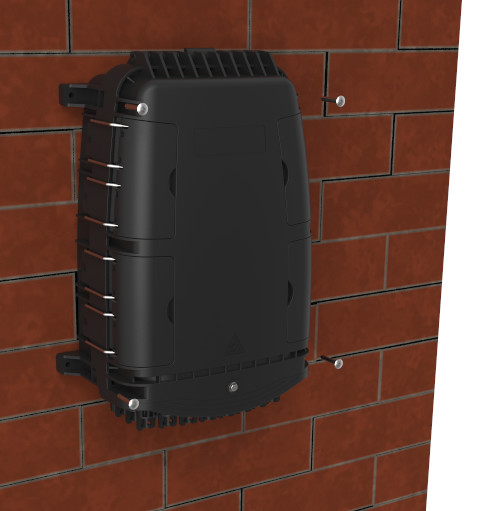

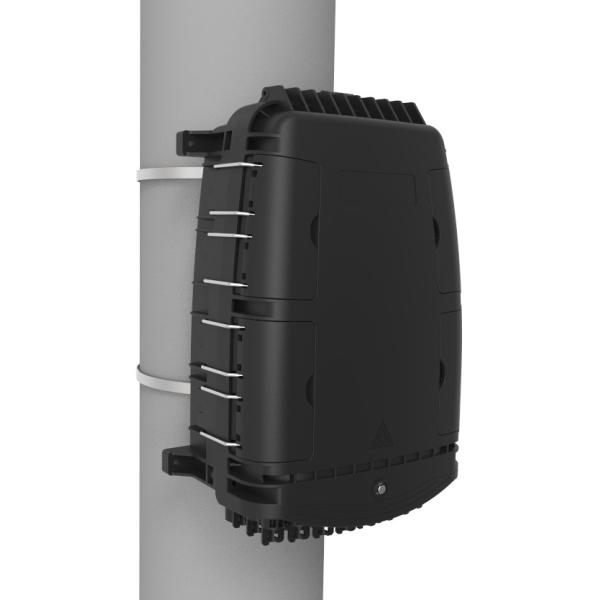

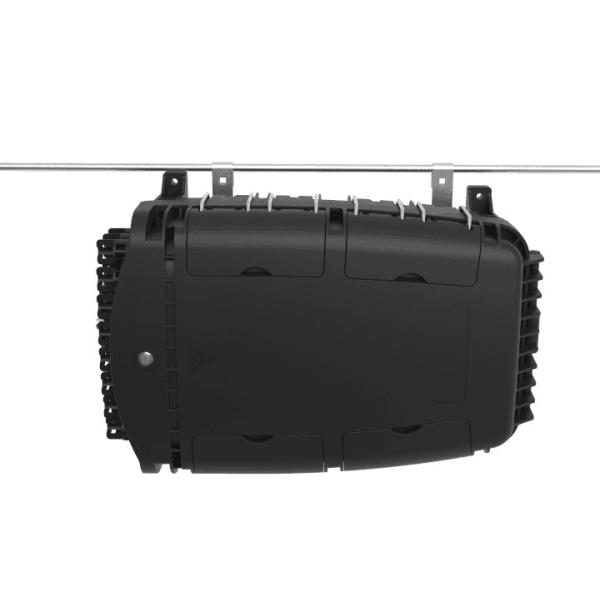

2.6. Installation method: pole-mounted, aerial-mounted, wall-mounted.

3.1 Mechanical specifications

Item Specifications Remark
External dimension(mm) 378*255*116(A*B*C)
Installation hole position(mm) 215*266*239(D*E*F)
Color Black Customizable

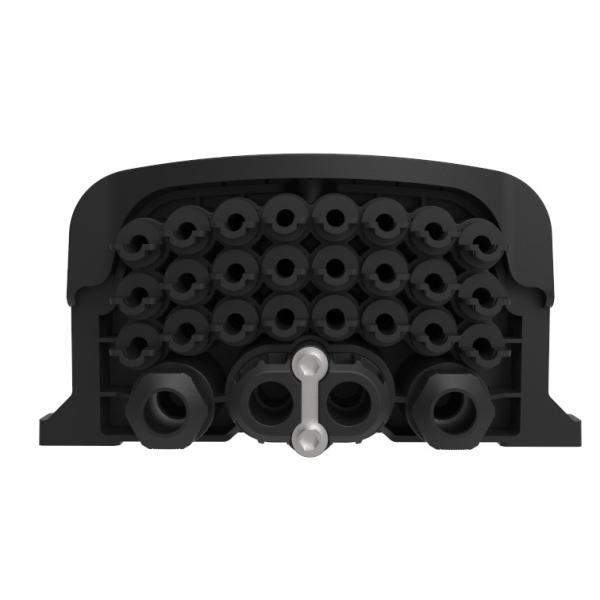

Size and quantity of optical cable hole 1 oval optical cable entry, 2 branch optical cable entries and 24pcs of household
Capacity(Max) 3 type A(36 cores) or 6 type B (48 cores) or 6 type C(72 cores) melt fiber discs It can be combined or selected
Into the largest cable diameter (mm) ᴓ15
Maximum size of bifurcation hole (mm) ᴓ12
Cable outlet size(mm) 2*3~ᴓ7
IP protection level IP68
Flammability HB(Conventional) can be customized according to requirements
Neutral salt spray test (NSS) 48 h
