Pre-Polished LC Fast Connector with 1310 / 1550 nm Wavelength for Within 1 Minute Installation and ISO9001 Certified
Pre-Polished LC Fast Connector with 1310 / 1550 nm Wavelength for Within 1 Minute Installation and ISO9001 Certified
Pre-Polished LC Fast Connector with 1310 / 1550 nm Wavelength for Within 1 Minute Installation and ISO9001 Certified
Pre-Polished LC Fast Connector with 1310 / 1550 nm Wavelength for Within 1 Minute Installation and ISO9001 Certified
Pre-Polished LC Fast Connector with 1310 / 1550 nm Wavelength for Within 1 Minute Installation and ISO9001 Certified
Pre-Polished LC Fast Connector with 1310 / 1550 nm Wavelength for Within 1 Minute Installation and ISO9001 Certified
Pre-Polished LC Fast Connector with 1310 / 1550 nm Wavelength for Within 1 Minute Installation and ISO9001 Certified
Pre-Polished LC Fast Connector with 1310 / 1550 nm Wavelength for Within 1 Minute Installation and ISO9001 Certified
Specifications
Brand Name :
NEW LIGHT OPTICS
Model Number :
NLAFC-001
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
$0.9 ~10
Payment Terms :
Western Union,T/T,MoneyGram
Supply Ability :
100000000
Delivery Time :
7~15
Packaging Details :
Box
Use :
FTTA Solutions
Certifaction :
ISO9001, ROHS
St Pigtails Type :
12cores OM3
Fiber Diameter :
62.5/125um 50/125um
Wave Length :
1310 /1550
Material :
PVC / LSZH
Type :
Single mode/Multi-mode
Cable Type :
indoor cable
Tensile Strength :
≥10KGS
Fiber Optic Connector :
ST - ST
Durability :
≥1000 Times
Repeatability :
≤0.1
Cable Diameter :
2.0mm / 3.0mm
Insert Loss :
≤0.2dB
Connector Material :
Ceramic ferrule with plastic housing
Description

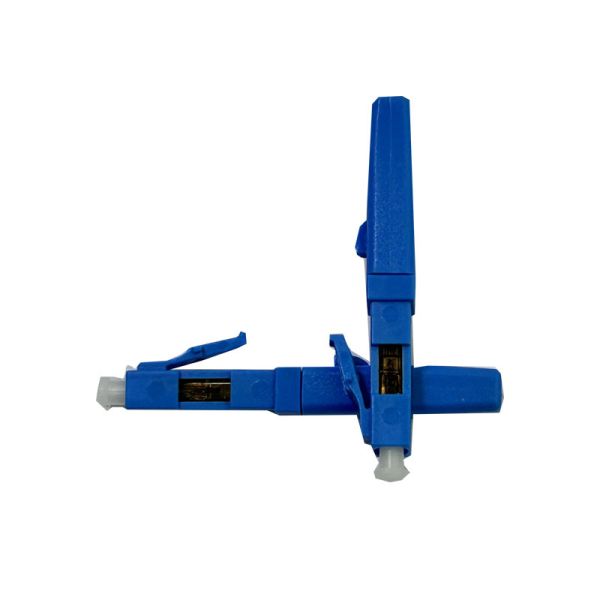

Pre-Polished LC Fast Connector – Field Installable

This pre-polished fast connector enables simple field installation with superior optical performance.

  • Connector Type: LC
  • Pre-polished Ferrule: Yes
  • Splicing Method: Mechanical
  • Operating Wavelength: 1310 / 1550 nm
  • Typical Return Loss: UPC ≥ 50 dB; APC ≥ 60 dB
  • Installation Time: Within 1 minute
  • Use Case: Emergency repairs, quick deployments, drop cable installation.
Technical Specifications
Specification Details
Ferrule Type 2.5mm ceramic ferrule
Fiber Mode Singlemode / Multimode optional
Insertion Loss ≤ 0.3 dB
Return Loss ≥ 50 dB (UPC), ≥ 55 dB (APC)
Cable Diameter 2.0mm / 3.0mm / 0.9mm
Operating Temperature -40°C to +85°C
Applications FTTH, Optical Distribution Networks, Data Centers
