3.0mm LSZH Round MPO MTP Patch Cord with Low Insertion Loss ≤0.35dB for 10G OM3 OM4 Multimode Applications
3.0mm LSZH Round MPO MTP Patch Cord with Low Insertion Loss ≤0.35dB for 10G OM3 OM4 Multimode Applications
3.0mm LSZH Round MPO MTP Patch Cord with Low Insertion Loss ≤0.35dB for 10G OM3 OM4 Multimode Applications
3.0mm LSZH Round MPO MTP Patch Cord with Low Insertion Loss ≤0.35dB for 10G OM3 OM4 Multimode Applications
3.0mm LSZH Round MPO MTP Patch Cord with Low Insertion Loss ≤0.35dB for 10G OM3 OM4 Multimode Applications
3.0mm LSZH Round MPO MTP Patch Cord with Low Insertion Loss ≤0.35dB for 10G OM3 OM4 Multimode Applications
Specifications
Brand Name :
NEW LIGHT
Model Number :
MPO
Certification :
CE , ISO , RoHS
Place of Origin :
ShenZhen , China
MOQ :
100pcs
Price :
0.1~100
Payment Terms :
T/T,Western Union,MoneyGram,paypal
Supply Ability :
12000 pcs / day
Delivery Time :
5-7 working days after receive payment
Packaging Details :
OPP bag + carton box
connector type :
mtp
mode type :
MM/SM
cable color :
8/12
cable diameter :
3.0mm 0.9mm
cable length :
15m/5m/10m
insertion loss :
≤0.35db
return loss :
APC≥65dB; PC≥55
Description
3.0mm LSZH Round MPO MTP Patch Cord Multimode Duplex 10G OM3 OM4
Product Overview

Low insertion loss 3.0mm 50/125 Multimode MPO-8LC Fiber Optic Patch Cord

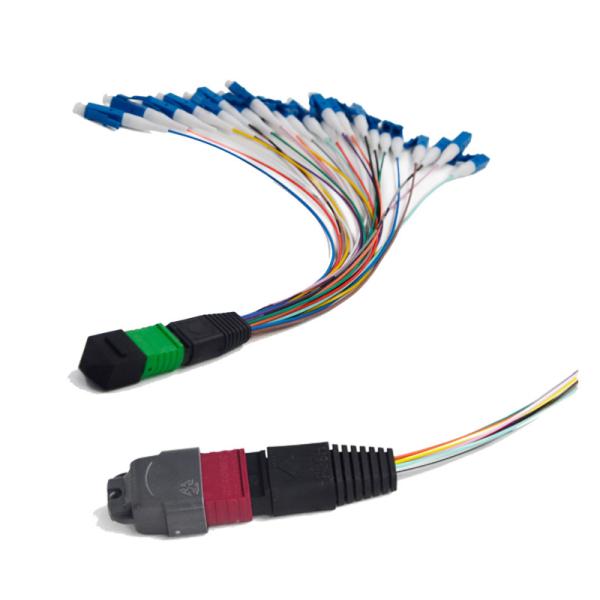

MTP/MPO harness cable, also known as MTP/MPO breakout cable or MTP/MPO fan-out cable, is a fiber optic cable terminated with MTP/MPO connectors on one end and various connector types (MTP/MPO/LC/FC/SC/ST/MTRJ) on the other end. The main cable features 3.0mm LSZH Round construction with 2.0mm breakout cables.

We provide MTP/MPO-8LC duplex 10G OM3 OM4 fiber optic patch cords for single mode, multimode, simplex, duplex, or multi-fiber applications. OEM services are available with customization options for cable length, color, cover materials, and packaging. All products are RoHS Compliant and undergo 100% insertion loss testing before shipment.

Key Features
  • Single mode and multi mode (flat) APC (8 degree angled) available
  • High fiber density (maximum 24 fibers for Multimode)
  • Fiber options: 4, 8, 12, 24 fibers per connector
  • Insert/Pull latching connector design
  • High reflection loss with APC connectors
  • Compliant with Telcordia GR-1435-CORE specification and RoHS standards
Applications
  • FTTH, CATV, LAN, MAN, WAN, Test & Measurement
  • Video transmission, Data transmission
  • Active Device Termination
  • Premise Installations
  • Telecommunication and Data processing Networks
  • Industrial, medical & optic fiber applications
  • Systems Integration for Long Haul, Metro and Access Networks
Product Specifications
Parameter Value Parameter Value
Fiber Count 12 Fiber Mode 9/125μm
Connector Type 1 LC Connector Type 2 Unterminated
Fiber Mode SM Breakout Length 1.5m
Wavelength 1310/1550nm Jacket Material PVC/LSZH
Insertion Loss ≤ 0.25dB Interchangeability ≤0.2dB
Return Loss ≥ 50dB Vibration ≤0.2dB
Operating Temperature -40~75°C Storage Temperature -45~85°C
Geometric Specifications (3D Interferometer Tested)
Type Vertex Offset (μm) Curvature Radius (mm) Fiber Height (nm) Angle Offset (°)
2.5mm UPC ≤50 10~25 (-50, +50) None
2.5mm APC ≤50 5~12 (-50, +50) 8±0.2
1.25mm UPC ≤50 7~25 (-50, +50) None
1.25mm APC ≤50 5~12 (-50, +50) 8±0.2
3.0mm LSZH Round MPO MTP Patch Cord with Low Insertion Loss ≤0.35dB for 10G OM3 OM4 Multimode Applications 3.0mm LSZH Round MPO MTP Patch Cord with Low Insertion Loss ≤0.35dB for 10G OM3 OM4 Multimode Applications
Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact Information

WHATSAPP: +8613534063703

Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer located in Shenzhen, China.
Q: What's your MOQ?
A: MOQ can be 1 piece, but we recommend larger quantities for better pricing as single unit costs are higher.
Q: What's the price?
A: Pricing depends on quantity. We provide competitive pricing for bulk orders upon request.
Q: Can you quote FOB price?
A: We primarily ship via air freight (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is recommended. For large sea shipments, we can provide freight quotes.
Q: How is your quality?
A: We follow IEC and European standards with near dust-free workshops, imported production equipment, and 100% testing before delivery.
Q: What's your lead time?
A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are in stock.
Q: What's your warranty?
A: 2-year warranty for patch cords covering non-artificial damage. Artificial damage repairs are free but require customer to cover freight.
Q: What's your packing?
A: International export packaging with optional custom logo printing available.
Q: Can you do OEM/ODM?
A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.
Q: Can I have a sample?
A: Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). For high-value products, sample charges apply but are refundable with orders.
Q: How can I order?
A: Contact us with product specifications and quantity. We'll provide pricing and lead time. Payment required before production begins.
Q: What are your payment terms?
A: T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
