12 Fiber Low Loss Yellow MTP MPO Trunk Cable 1 Meter ST APC Patch Cord 3.0mm Diameter
12 Fiber Low Loss Yellow MTP MPO Trunk Cable 1 Meter ST APC Patch Cord 3.0mm Diameter
12 Fiber Low Loss Yellow MTP MPO Trunk Cable 1 Meter ST APC Patch Cord 3.0mm Diameter
12 Fiber Low Loss Yellow MTP MPO Trunk Cable 1 Meter ST APC Patch Cord 3.0mm Diameter
12 Fiber Low Loss Yellow MTP MPO Trunk Cable 1 Meter ST APC Patch Cord 3.0mm Diameter
12 Fiber Low Loss Yellow MTP MPO Trunk Cable 1 Meter ST APC Patch Cord 3.0mm Diameter
Specifications
Brand Name :
New Light
Model Number :
MTP - ST APC
Certification :
CE , ISO , RoHS
Place of Origin :
Shenzhen,China
MOQ :
1~10000
Price :
6~15
Payment Terms :
T/T,Western Union,MoneyGram,paypal
Supply Ability :
500 pcs per day
Delivery Time :
2-7 working days ( according to your quantity )
Packaging Details :
OPP bag + carton box
connector type :
MTP/male - ST APC
core type :
12core
insertion loss :
≤ 0.3dB
Length :
1-500 m
cable diameter :
3.0mm
Fiber mode :
SM G657A1 /G657A2
Application :
FTTX,CATV,LAN,Telecom/network,GPON
Fiber core can be :
8 core,12core,24core
Description

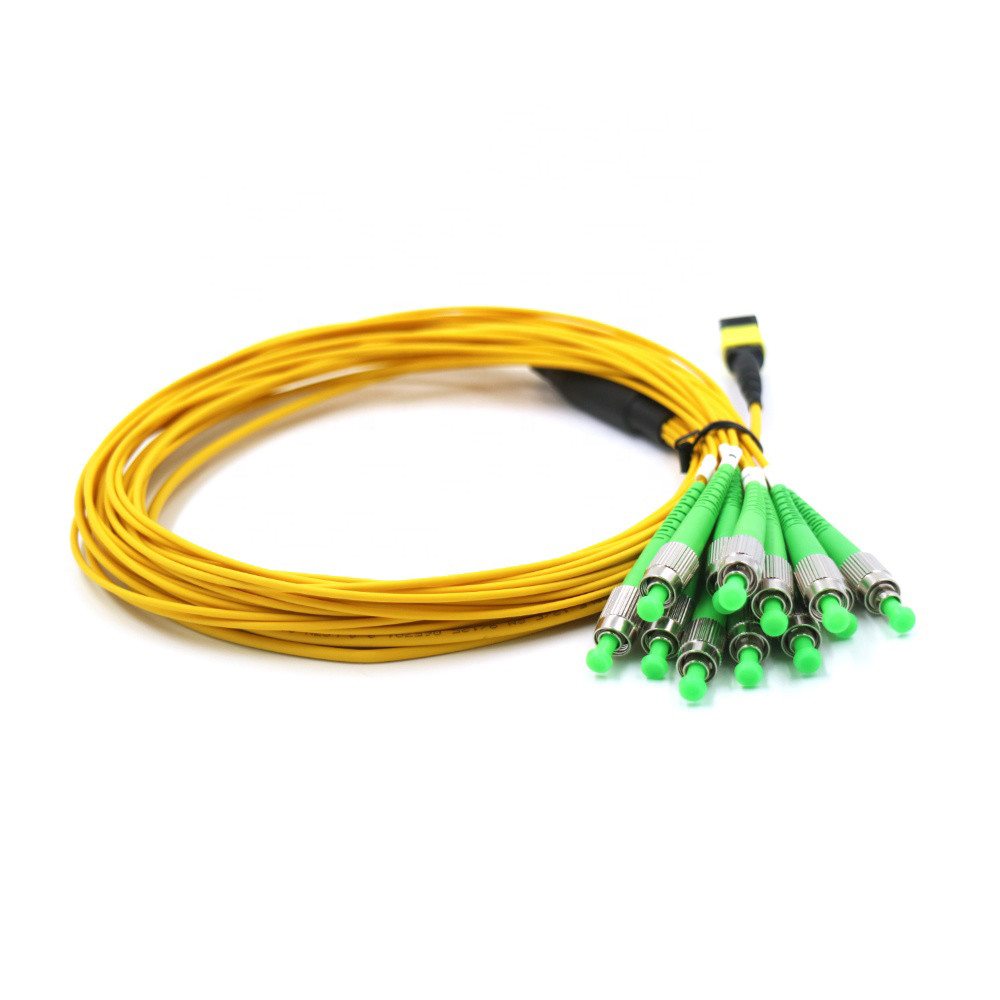

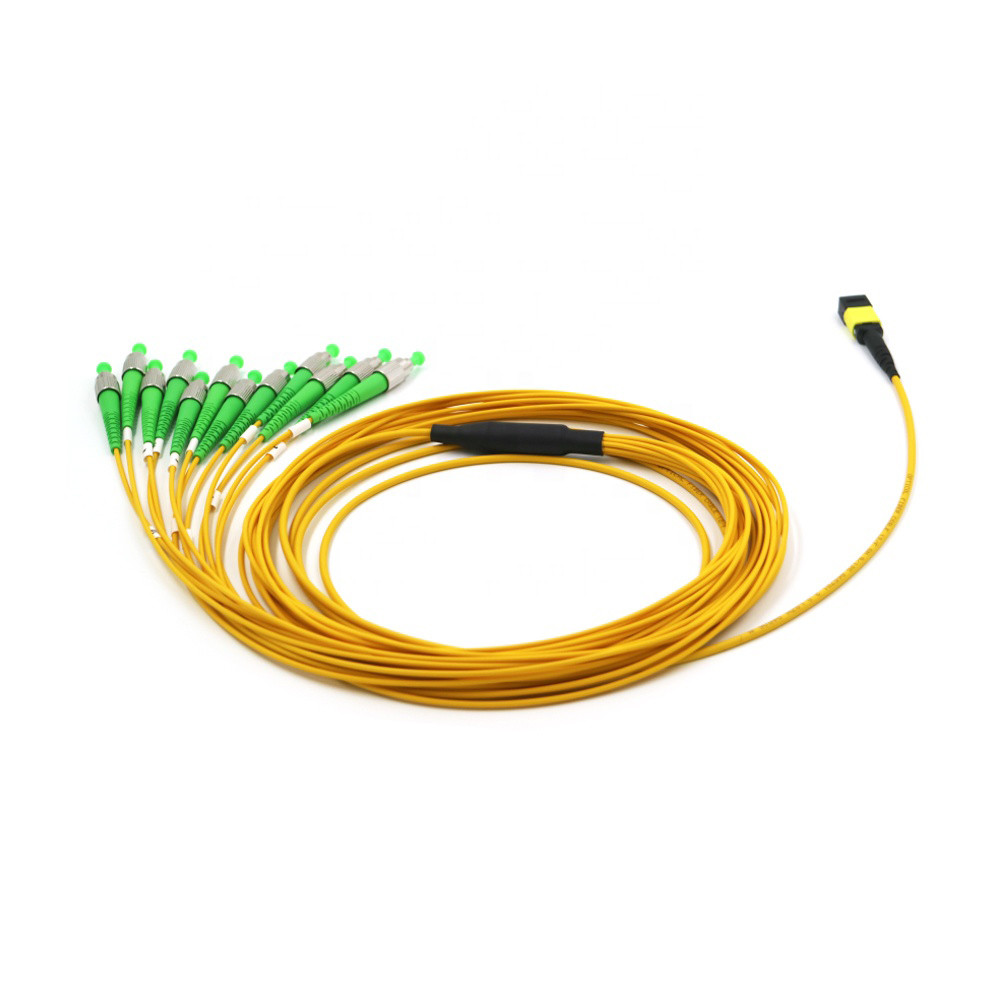

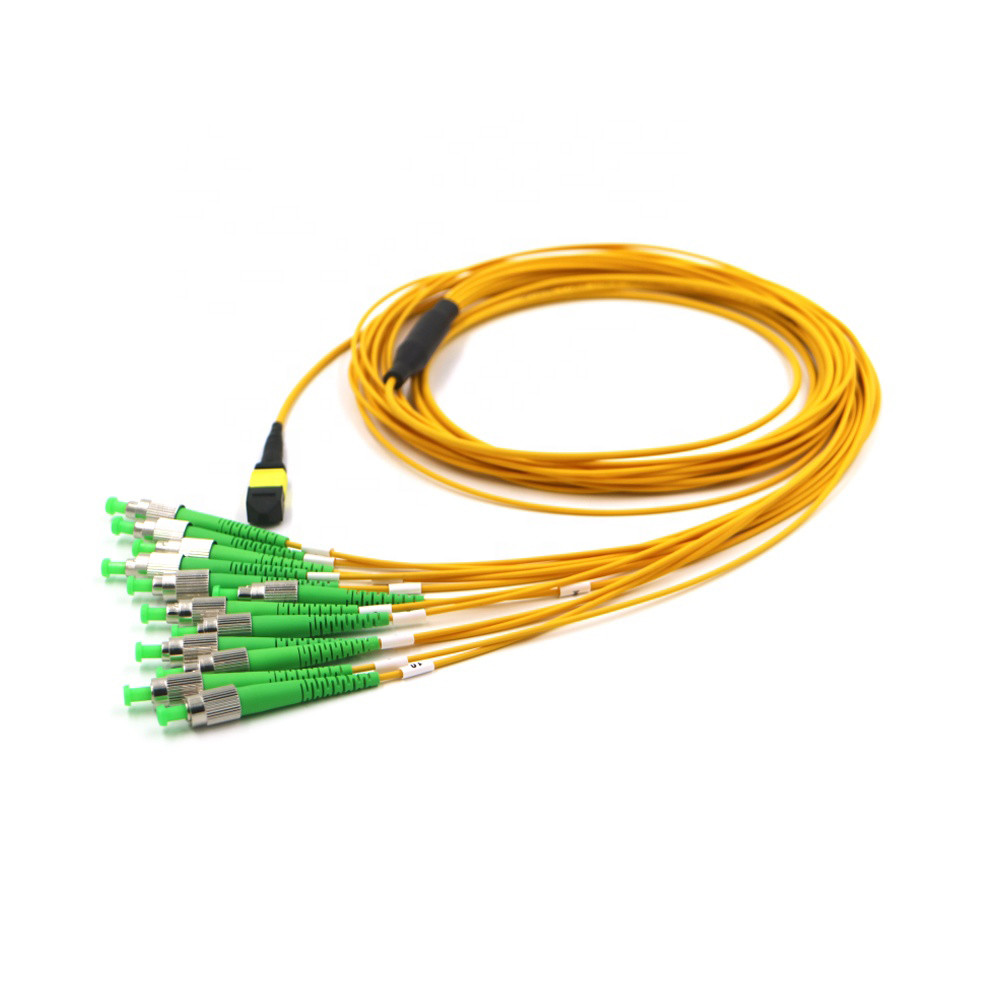

12Fiber fan out low loss yellow MTP MPO to ST APC mpo trunk cable patch cord length 1meter



MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning , HAD and EDA zones, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration.


MPO/MPT trunk cables using a compact and rugged microcable structure, according to different colors divided into SM, MM and 10G MM. The fiber ranges from 12 to 144, MTP polarity options are TIA way is Style A(up), Style B(down) and Style C(up/up). The cable length belongs to a custom product, please kindly email your requirements to us.


FEATURES AND APPLICATIONS

100% factory tested with traceable test data
- Comply Telcordia GR-326 Core, TIA 604-18 and IEC(61754-3) standards


Ultra high fiber count cabling solution
- Support 400G transmission for Hyperscale Data Center


Available in different fiber modes including singlemode(OS2) & multimode (OM1 ~ OM5) with customized length and structure

- Satisfies client's needs in different industries


Stringent manufacturing process
- Superior optical performance to satisfy customers' need




Parameter


products name 12Fiber fan out low loss yellow MTP MPO to ST APC mpo trunk cable patch cord length 1meter
mode type single mode
cable count 12 core ( can be 4/8/12/16/24/32 core )
core type G657a1
cable color yellow
cable diameter 3.0
patch cord length 1 meter ( can be customized according to your request )
out jacket material LSZH ( can be PVC or LSZH )
insertion loss ≤ 0.3dB
return loss ≥25 dB
wave length 1310/1550nm
core type 9/125um
connector type male
connector color yellow
ferrule material plastic
operater temperature -40~ +85℃
cable print standard print ( can customized )
OEM/ODM acceptable
warranty 3 years after delivery
Delivery time 2-15 working days ( according to your quantity )



Connector you can choose :

12 Fiber Low Loss Yellow MTP MPO Trunk Cable 1 Meter ST APC Patch Cord 3.0mm Diameter


Related products:

12 Fiber Low Loss Yellow MTP MPO Trunk Cable 1 Meter ST APC Patch Cord 3.0mm Diameter

12 Fiber Low Loss Yellow MTP MPO Trunk Cable 1 Meter ST APC Patch Cord 3.0mm Diameter

12 Fiber Low Loss Yellow MTP MPO Trunk Cable 1 Meter ST APC Patch Cord 3.0mm Diameter


How to order


1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
