Color Customized Fiber Optic Parts LC Tail Set For Optical Fiber Access Network
Color Customized Fiber Optic Parts LC Tail Set For Optical Fiber Access Network
Specifications
Brand Name :
New Light
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
100
Price :
0.1~100
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000 per week
Delivery Time :
7 working days
Packaging Details :
100 pcs per pack
Name :
LC tail set
Connector :
LC
Diameter :
2.0/3.0mm
Color :
Pink or Customized
Mode :
SM/MM
OEM :
Available
Description

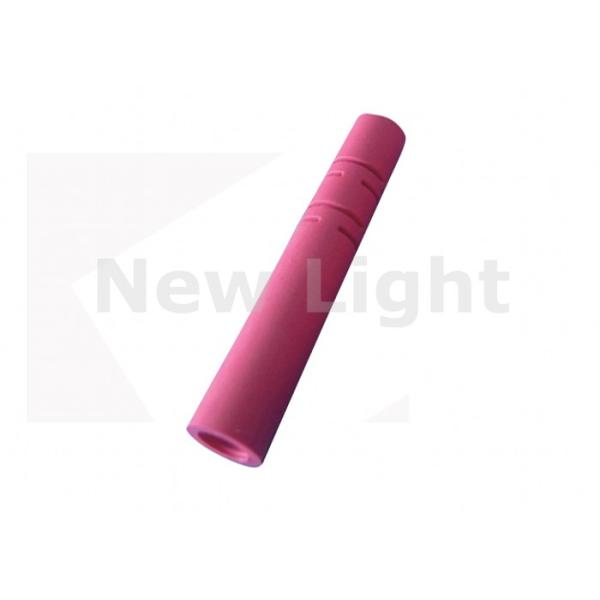

Fiber patch cord use LC tail set 2.0 / 3.0 mm diameter Pink color

Fiber optic connector ordering guide

Connector type FC, SC, ST, LC, SMA, MU, MTRJ, Big D, Small D and so on
Mode type Singlemode, Multimode or APC
Fiber count Simplex,Duplex
Ferrule Ceramic/Zirconia ferrule, made in China or Japan
Polish/Endface PC, UPC, APC
Housing color Standard(Blue/Beige/Green) or OEM color
Packing

Multi-piece or one piece type available,Normally polybag+carton box, can be customized

Description & technical parameter of Fiber optic connector:

Item Mode Type PC UPC APC
Insertion Loss SM ≤0.25dB ≤0.20dB ≤0.20dB
MM ≤0.30dB ≤0.20dB ≤0.30dB
Return Loss SM ≥50dB ≥55dB ≥65dB
MM ≥35dB ≥35dB ≥35dB
Repetition Test Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40°C~85°C) Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature -40°C ~ +85°C
Storage Temperature -40°C ~ +85°C
Ferrule concentricity: SM < 1um; MM < 1.4um
Ferrule inner diameter tolerance +/- 0um

Ferrule outer diameter tolerance +/- 0.5um

Features:

1. Accurate mechanical dimensions

2. Low insertion loss,high return loss

3. Excellent compatibility

4. Excellent repeatability

5. No polishing,no Epoxy

6. More convenient to install

7. Life time: at least 1 year

Description:

An optical fiber connector is a flexible device that connects fiber cables requiring a quick connection and disconnection, keeping the ends of the fiber properly aligned, let the fiber receiver can get the maximum light from the launching fiber, and minimize the energy loss for the system because of the intervention of the optic link, this is the basic requirement for the fiber optic connector. To some extent,The fiber optic connectors have some effect on the stability and performance of the fiber-optical transmission system.

Specification:

Parameter

Unit

 LC,SC,FC,ST,MTRJ,MOP
SM MM
PC UPC APC PC
Insertion Loss (Typical) dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30
Exchangeability dB ≤0.2
Repeatability dB ≤0.2
Durability Time >1000
Operating temperature ℃ -40~75
Storage temperature ℃ -40~85

Color Customized Fiber Optic Parts LC Tail Set For Optical Fiber Access Network
