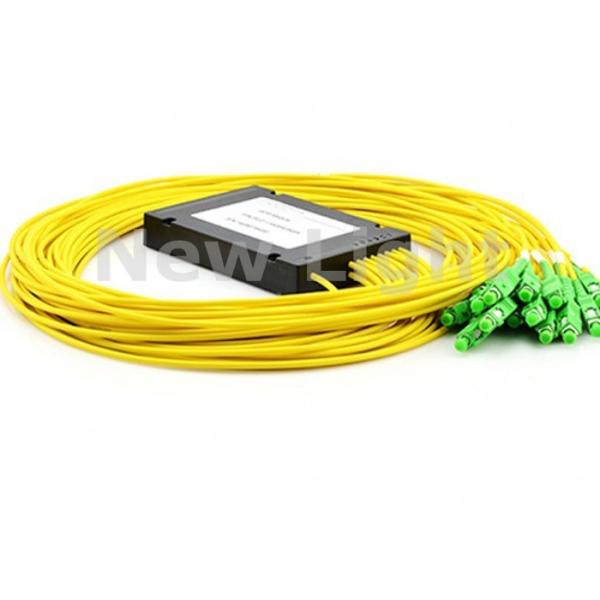

1×16 Fiber Optic PLC Splitter with SC/UPC Connectors and Single Mode for High Reliability
1×16 Fiber Optic PLC Splitter with SC/UPC Connectors and Single Mode for High Reliability
Specifications
Brand Name :
New Light
Certification :
ISO ,ROSH
Place of Origin :
China
MOQ :
10
Price :
1~30
Payment Terms :
Western Union,T/T,MoneyGram
Supply Ability :
1000000
Packaging Details :
export packing
Delivery Time :
15 working days
Color :
Yellow cable,green connector
Connector type :
SC
Polish :
UPC
Spliter :
PLC
Mode :
Single mode
OEM :
Available
Description

1×16 Optical PLC Splitter single mode cable with SC/UPC connectors

Specifications

Fiber To The Home (FTTH)

Passive Optical Networks (PON / GPON / EPON )

CATV Network (Cable Television Network) Communication Systems

Fiber Optic Test Equipment

Fiber Optic Sensing

Local Area Networks (LAN)

Excellent Environmental

Features

ALL fiber construction

High Reliability

Outstanding Optical Performance

Different Fiber Types Available

Performance

Parameter Unit Premium A B
Operating Wavelength nm 1310±20, 1550±20 /1310±40, 1550±40 or Others
Excess Loss Typ. dB 0.1
Polarization Stability Max dB 0.1 0.1 0.15
Uniformity (50:50) Max dB 0.6 0.8 1.0
Thermal Stability Max dB 0.2 0.3 0.4
Directivity Min dB 50 (1x2), 60 (2x2)
Reflectance Min dB 50 (1x2), 60 (2x2)
Operating Temperature °C -30 ~ 85
Storage Temperature °C -40 ~ 85

Insertion Loss

 50/50 Max dB 3.3/3.3 3.4/3.4 3.6/3.6
45/55 3.8/2.9 3.9/3.0 4.0/3.1
40/60 4.3/2.5 4.4/2.6 4.6/2.7
35/65 4.9/2.1 5.0/2.2 5.2/2.3
30/70 5.6/1.8 5.7/1.85 5.9/1.9
25/75 6.4/1.45 6.5/1.55 6.7/1.6
20/80 7.4/1.15 7.5/1.2 7.7/1.3
15/85 8.7/0.9 8.8/0.95 9.0/1.0
10/90 10.5/0.6 10.6/0.7 10.8/0.8
5/95 13.7/0.35 13.8/0.4 14.0/0.5
1/99 21.0/0.15 21.3/0.2 21.6/0.25
