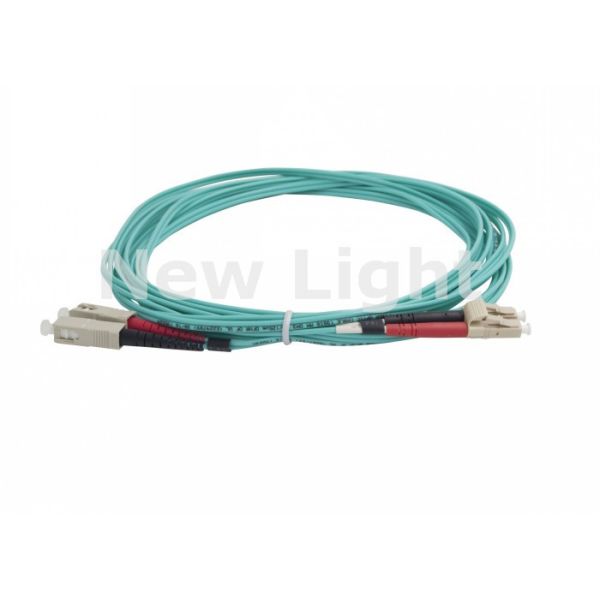

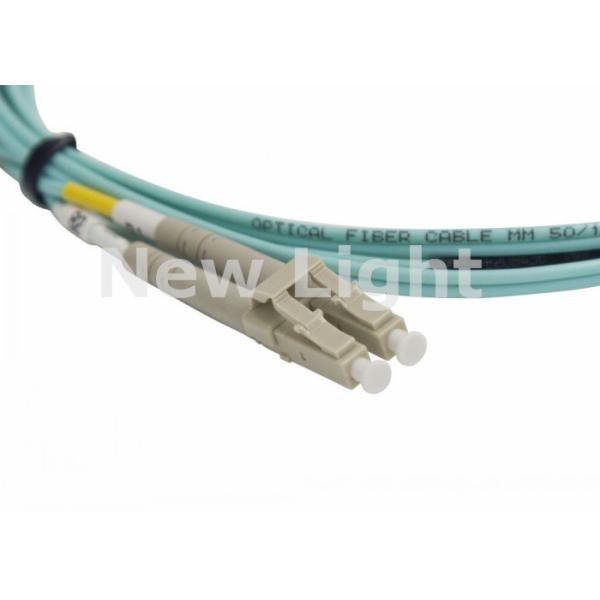

LC to SC Duplex Fiber Optic Patch Cord 50/125 Multimode with Good Durability
LC to SC Duplex Fiber Optic Patch Cord 50/125 Multimode with Good Durability
LC to SC Duplex Fiber Optic Patch Cord 50/125 Multimode with Good Durability
LC to SC Duplex Fiber Optic Patch Cord 50/125 Multimode with Good Durability
Specifications
Brand Name :
NewLight
Certification :
ISO ,ROSH
Place of Origin :
China
MOQ :
1~100000
Price :
0.1~100
Payment Terms :
T/T,Western Union,,Paypal
Supply Ability :
1000000
Delivery Time :
7 working days
Packaging Details :
1 pcs per pack
Name :
LC-SC Fiber Patch Cord
Diameter :
2.0mm
Model :
Multimode
Connector :
LC-SC
Color :
Green
Length :
3 meter
Description

LC - SC OM3 Multimode 50/125 Duplex Optical fiber patch cord PVC Green cable UPC polish connector

Connector body color:

Connector type Specification Color

FC

 Single mode/UPC Blue,black,yellow
Single model/APC Green
Multimode/UPC Black

SC

 Single mode/UPC Blue
Single model/APC Green
Multimode/UPC Gray

LC

 Single mode/UPC Blue
Single model/APC Green
Multimode/UPC Gray

ST

 Single mode/UPC Black
Multimode/UPC Gray

MU

 Single mode/UPC Brown
Single model/APC Green
Multimode/UPC Gray
MT-RJ Single mode/UPC Black
Multimode/UPC Black

Standard:

* Meet the requirement of IEC standards for fiber optic connectors

* Meet the technical requirements of Telcordia GR-326

Description:

Fiber Optic Patch cord is necessary part of optical network. They have some or different connectors which are installed on the end of fiber optic cable. The fiber optic patch cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for different requirements.

Specification:

Connector LC to SC Jacket OD 2.0mm
Fiber Mode 9/125µm Jacket Color Green
Polish UPC to UPC Wavelength 1310/1550nm
Fiber Type Duplex Jacket Material PVC
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥50dB Vibration ≤0.2dB
Operating temperature -40~75℃ Storage temperature -45~85℃
Polarity A(Tx) to B(Rx) Fiber Grade

G652D

Features

* Good durability

* Good exchangeability

* High temperature stability

* Low insertion loss and back reflection loss

* Superior quality standard PC/UPC/APC Polishing

* Standard: Telcordia GR-326-CORE,TIA/EIA and IEC

LC to SC Duplex Fiber Optic Patch Cord 50/125 Multimode with Good Durability
