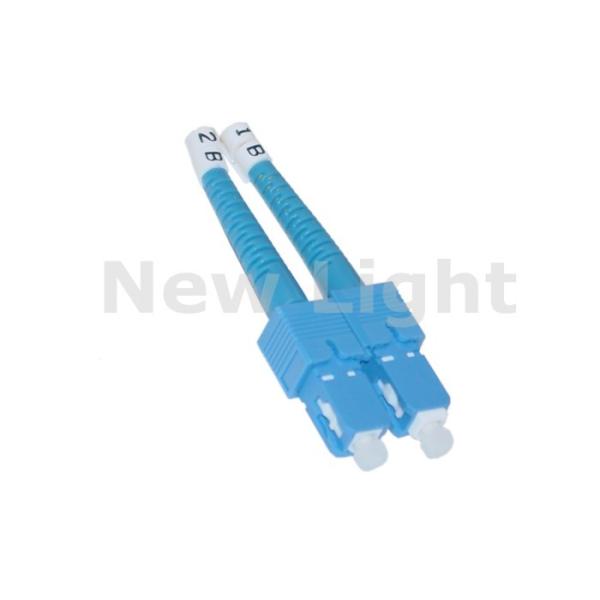

High Reliability Single Mode Duplex SC Fiber Optic Connector for OEM Applications
High Reliability Single Mode Duplex SC Fiber Optic Connector for OEM Applications
Specifications
Brand Name :
New Light
Certification :
CE
Place of Origin :
China
MOQ :
100
Price :
0.1~100
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000/month
Delivery Time :
7 working days
Packaging Details :
10pcs per pack
Color :
Blue
NAME :
SC single mode fiber connectors
Fiber Type :
Duplex
Model :
Single mode
MOQ :
100pcs
OEM :
Available
Description

SC Fiber Connector Sm Duplex Blue fibre connectors high reliability

Basic Info

Model NO.: SC
Structure: SC
Ferrule Endface: PC(UPC)
Light Source TYPE: Fiber
Insertion Loss: <0.2dB
Operating Temperature: -40′c ~ +85′c
Transport Package: Individual Box or According to Customer′s Request
Origin: Guangdong, China (Mainland)
Transmission Medium: Single-Mode
Number of Cores: Multi-Core
Application: Fiber Distribution Frame, Network Equipment, Fiber Module
Connector Type: SC-PC
Model Number: Sc
Insert-Pull Test: 1000 Times
Trademark: DYS or OEM
Specification: RoHS, ISO9001
HS Code: 8536700000

2. Features:

1) Superior qualified standard polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
4) φ0.9mm, φ2.0mm, φ3.0mm cable optional
5) Simplex and duplex connector available;
6) Good exchange ability and good durability;
7) Available in fiber bunch, ribbon fan-out, pigtail available;
8) Meets ISO9001, ROHS and Bell core GR 326-core standards;
9) Customized specifications are welcomed.

2. Applications:

1) CATV, metro test equipment; FTTH;
2) Telecommunication networks;
3) Local area networks (LAN);
4) Wide area networks (WAN);
5) Premise installations;
6) Data processing networks;
7) Video and military active device termination.
8) Optical Distribution Frame
9)Optical Network Equipments


3. Specification

Item(Connector) Parameter
Fiber Type Single-mode
Insertion Loss <0.2dB
Return Loss ≥45dB
Polishing Type PC UPC
Operation Temp -40°C ~ 70°C
Tensile strength >50N

High Reliability Single Mode Duplex SC Fiber Optic Connector for OEM Applications
