Specifications
Brand Name :
New Light
Model Number :
FC male -SC female
Certification :
ISO ,ROSH
Place of Origin :
China
MOQ :
100
Price :
0.08~1.5
Payment Terms :
L/C,T/T,Western Union,MoneyGram,paypal
Supply Ability :
1000000
Delivery Time :
7 working days
Packaging Details :
standard export package
material :
metal
connector type :
SC APC
repeatability :
>1000 times
return loss :
PC ≥ 45dB UPC ≥55dB APC ≥65dB
packing :
standard export package
certificate :
CE , ISO , RoHS
Description

Fiber Optic Adaptor Product Name

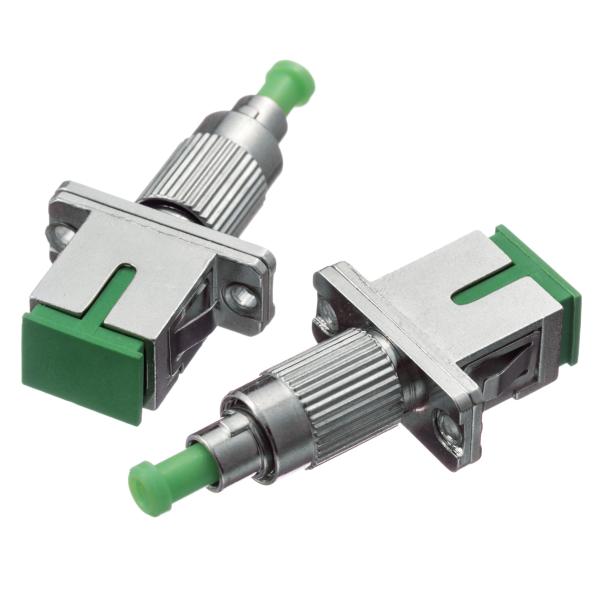

SC Female To FC Male Fixed Type Fiber Optical Adapter APC Polishing Type

Fiber optic adaptor Product Description

This is a male to female fixed type adaptor . It have UPC and APC single mode . UPC normal use black color cap ,and APC is green color cap .


Single mode type is more hot sale , because single mode cable and patch cord are widly used in the data transmission . That is according to the character of the fiber .


Single mode is widly used because it can use in long distance transmission . but the wavelength band is less than multi mode .


Single mode wavelength is 1310/1550nm , and multi mode is 850/1300nm .


Fiber optic adaptor Feature :

  • Fiber Connectors: SCAPC male-female
  • Operating Wavelengths: 1310nm, 1550nm
  • Polish Type: Ultra Physical Contact (UPC)
  • Maximum Optical Input Power: 200nW
  • Return Loss: ≥55dB


Fiber optic adaptor Specification:

Product name SC Female To FC Male Fixed Type Fiber Optical Adapter APC Polishing Type
Item Parameter
Model Female&Male
Operating Wavelength SM:1310/1550nm
Return Loss PC:≥50dB UPC: ≥55dB APC: ≥60db
Attenuation Tolerance ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Working Temperature -40°C~+75°C
Storage Temperature -40°C~+ 85°C
Humidity 95%RH


Fiber optic adaptor Ordering Information:

Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Mode: Fixed, Female&Male, In-line, Variable
Step 5: Wavelength: 1310nm, 1550nm, 850nm, 1300nm



FQA :


1. Q : Are you manufacturer ?

A: yes, we are manufacturer in Shenzhen,China


2. Q : What's your MOQ ?

A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .


3. Q : What's the price ?

A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .


4. Q: Can you quote FOB price ?

A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .


We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .


EXW price or CFR price will be better . You can contact us for more solution if you need .


5. Q: How is your quality ?

A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .


All the products are 100% test before delivery .


6. Q : Whats your lead time ?

A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

For fiber optic patch cord , the lead time can be 2 -3 working days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .


7. Q : Whats your warranty ?

A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .


8. Q : Whats your packing ?

A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing


9. Q: Can you do OEM/ODM ?

A: yes , we can . We are manufacturer , all products accept OEM /ODM . we can sign the Confidentiality agreement .


10. Q: Can I have a sample ?

A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide the sample for free . But freight repaid by your side .

For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.


11. Q: How can I order ?

A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

3. When you accept the quotation , we will make Profoma Invoice with our bank account .

4. We will arrange the production for you after we received payment .

5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

6. We will try our best to meet your requirements for long-term cooperation .


12. Q: What your payment term ?

A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
