Specifications
Brand Name :
New Light
Model Number :
Male To LC Female
Certification :
ISO ,ROSH
Place of Origin :
China
MOQ :
100
Price :
0.08~1.5
Payment Terms :
L/C,T/T,Western Union,MoneyGram,paypal
Supply Ability :
1000000
Delivery Time :
7 working days
Packaging Details :
standard export package
material :
plastic / metal
connector type :
Male To LC Female
mode type :
single / multi mode
repeatability :
>1000 times
attenuation :
1-30 dB
return loss :
PC ≥ 45dB UPC ≥55dB APC ≥65dB
delivery time :
2-10 working days after receive payment
packing :
standard export package
payment term :
T/T , L/C , PAYPAL , WESTEN UNION , MONEY GRAM
certificate :
CE , ISO , RoHS
Description

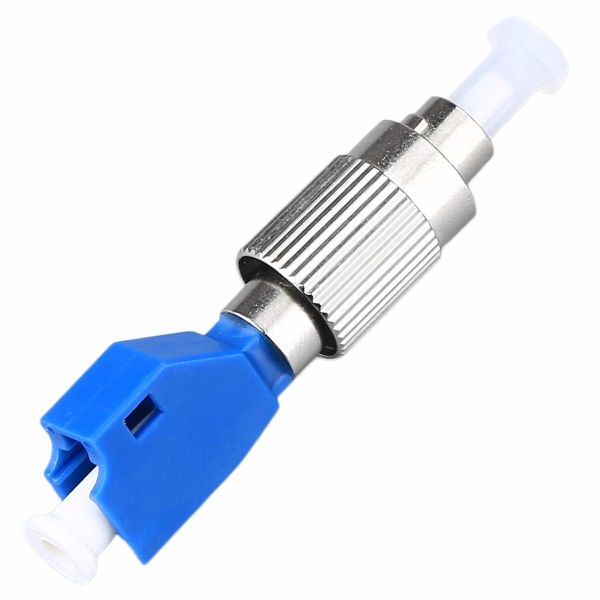

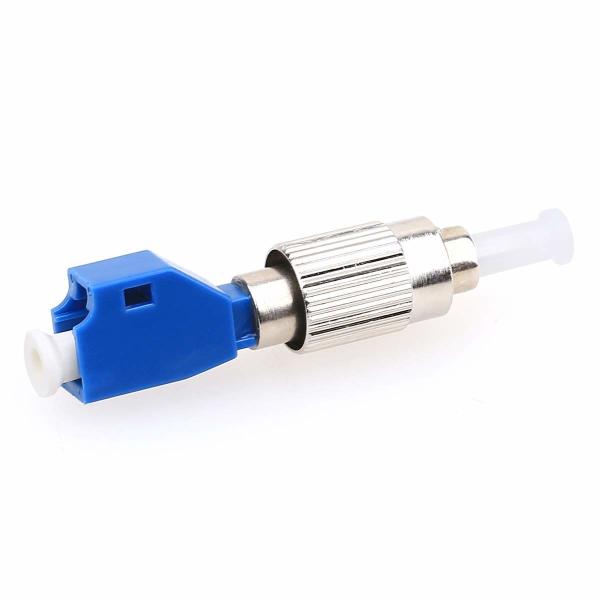

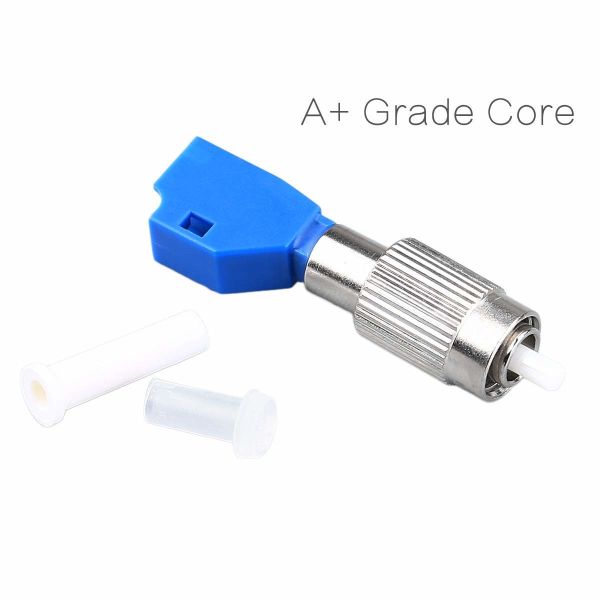

Single Mode Fiber Attenuator 1 - 30 DB FC Male To LC Female Indoor

Properly tested



This LC/UPC Male – Female Attenuator feature a Wide operation wavelength:1260 to 1650nm that match the standards in the ANSI/TIA-568.3-D.


Specifications

(20dB) Optical Attenuation Level. Return Loss LC/UPC≥ 50dB.


Indoor Use.


Simplex.


Flat response over all wavelengths
.


Wide operation wavelength:1260 to 1650nm.


Attenuation Tolerance: 5dB ± 0.5dB,10dB ±1dB.


Operational Temperature: -40 to+ 75°C


Attenuation level range from 1 to 25dB.


RoHS Compliant.


Specification:

Item Parameter
Model Fixed, Female&Male, In-line, Variable
Operating Wavelength SM:1310/1550nm MM: 850/1300nm
Attenuation Range 1~30dB
Return Loss PC:≥50dB UPC: ≥55dB APC: ≥60db
Attenuation Tolerance ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Working Temperature -40°C~+75°C
Storage Temperature -40°C~+ 85°C
Humidity 95%RH



Application:

  • Testing equipment
  • Fiber optical CATV
  • Fiber optical sensor
  • Fiber optical telecommunication system


Feature

♦ Low insertion loss , high return loss
♦ Height Reliability And Stability
♦ Wide operation temperature from -40°C to 85°C
♦ Fixed Attenuator(Fixed Type FC, SC, ST, LC)
♦ Female to male type ( FC, SC, ST, LC)
♦ In-Line Attenuator(Fused and Fiber Jumpers Type)
♦ High Return Loss(In-Line and High RL Type)
♦ Exact and Stable Attenuation(Variable Type)



More picture





Your may like








Company introduction

New Light Optics Technology Limited specialized in the Optical communication products R & D, manufacture,sales and service as high-tech company.Our factory was established in 2011 and with 6 years OEM and manufacture experience for customer all over the world.

Our product line include: Patch Cord/Pigtails,Patch Cord Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber optical connector... Etc.

Our products widely used in Telecommunication,Fiber optical CATV, digital internet fiber transmit,data base station,etc.

Company have high tech technology, professional R & D team, advanced production equipment,sophisticate skill engineers. And high quality control system,our products offer to customers to USA,European,Brazil,Middle East,and Asia more than 60 countries and areas.

Products received high reputation and feedback from all customers!

Please contact us if any we can support and cooperate together!

Whatsapp 008613534063703

Delivery and payment

1. Delivery time : 2-15 working days after received payment
2.package: export sdandard package
3. payment term: T/T ,PAYPAL,westen union ,L/C . 30% deposit , 70%balance paid before delivery
4.warranty : 3 years
5.Delivery method : by aire ( DHL, UPS,FEDEX ,TNT,etc ) by sea




Ordering Information:

Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
