Professional HDMI video over Coaxial converter,HDMI-OVER-Coaxial converter,Coaxial BNC to HDMI video converter
Professional HDMI video over Coaxial converter,HDMI-OVER-Coaxial converter,Coaxial BNC to HDMI video converter
Professional HDMI video over Coaxial converter,HDMI-OVER-Coaxial converter,Coaxial BNC to HDMI video converter
Professional HDMI video over Coaxial converter,HDMI-OVER-Coaxial converter,Coaxial BNC to HDMI video converter
Specifications
Brand Name :
BEYONDOPTO
Model Number :
BY-HDMI-CA1SMV1
Certification :
CE.FCC,Rosh
Place of Origin :
ShenZhen,China
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000 pairs per month
Delivery Time :
3-5 working days
Packaging Details :
Paper box packing for export
Connector :
HDMI, type A, female
HDMI version :
HDMI1.1 1.2 1.3
HDCP :
HDCP1.2
resolution :
1080p/1080i/720p/720i/576p/576i/480p/480i
Video color format :
24bit/deep color 30bit/deep color 36bit
Audio format :
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
Weight :
240g /pair
Description

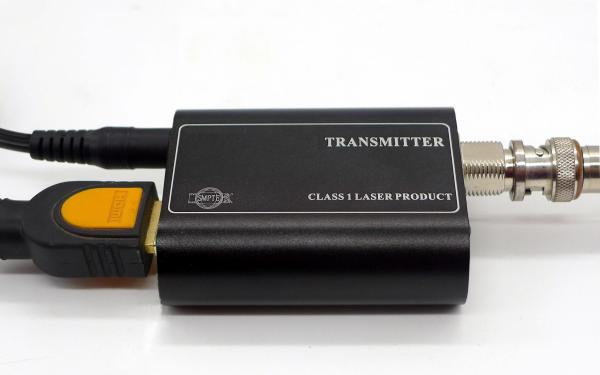

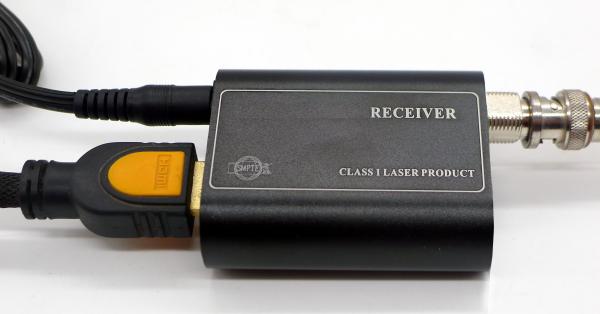

HDMI to Coax converter, HDMI over Coax Extender,the device includes a transmitter and a receiver, which can extend HDMI signal to a remote location over single copper- core 75Ohm Coax cable.
The device support HDMI / DVI transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz, max distance 100m (1080P HDMI)/ 200m (720P HDMI).
The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
Product feature:
1, Support 1920×1080@60Hz
2, Max extension distance 100m (1080P HDMI)/ 200m(720P HDMI) over Coax cable.
3, Pure hardware design, no driver needed, compatible with all operation systems, support plug and play
4, Support HDMI / DVI interface
Product specification:

HDMI Connector HDMI, type A, female
HDMI version HDMI1.1 1.2 1.3
HDCP HDCP1.2
HDMI resolution 1080p/1080i/720p/720i/576p/576i/480p/480i
Video color format 24bit/deep color 30bit/deep color 36bit
Audio format DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
TMDS 0.5-1.5Vp-p(TTL)
DDC 5Vp-p(TTL)
Input cable length ≤20m AWG26 HDMI 1.3 standard cable
Output cable length ≤20m AWG26 HDMI 1.3 standard cable
Coax Connector BNC
Impedance 75Ohm
Physical Size (L× W ×H) 85mmx52mmx22mm
Case Aluminum
Color Black
N.W. 240g /pair (with Power supply 500g/pair)
Power Voltage 5~12V DC
sender power consumption 2.5W
receiver power consumption 2.5W
Environment Working temperature -20℃-70℃
Storage temperature -40-85℃
Humidity 0-95% (non-condensing)

Panel diagram:
Professional HDMI video over Coaxial converter,HDMI-OVER-Coaxial converter,Coaxial BNC to HDMI video converter

Connection diagram:

Professional HDMI video over Coaxial converter,HDMI-OVER-Coaxial converter,Coaxial BNC to HDMI video converter
