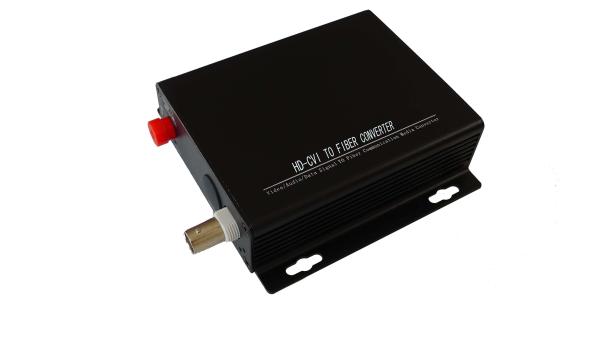

1 channel High definition CVI over fiber extender for 720P CVI camera,singlemode,FC/SC
1 channel High definition CVI over fiber extender for 720P CVI camera,singlemode,FC/SC
Specifications
Place of Origin :
ShenZhen
Brand Name :
Bedond
Certification :
ISO9001
Model Number :
BY-CVI-1VSM001
MOQ :
1 pair
Price :
Negotiable
Packaging Details :
standrad packing
Delivery Time :
3 working days
Payment Terms :
T/T
Supply Ability :
2000 pairs per month
Description

HDCVI TO Fiber Converter can simultaneously transmit 1-16 channels HDCVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission.

Specifications

Opitcal:

Wavelength

1310nm&1550nm

Output Power

-8~3dBm

Optic fiber

50/125u multimode,62.5/125u multimode,9/125u single mode

Rx sensitivity

-25dBm

Optical connector

FC,ST,SC (optional)

Distance

0~550M (MM) / 0~20KM (SM)

Video:

Number of Channels

4

Input/output impedance

BNC 75Ω (unbalance)

Standard video input/output voltage

1.0Vp-p

Video Bandwidth

45MHz

Sampling Bandwidth

10bit

Sampling Frequency

108MHz

Rise and Fall time

<0.8ns

Optical Signal Intrinsic Jitter

<0.2 UI

Differential Gain

< ±1.5%

Differential Phase

< ±1°

Connector

BNC

Other

Power

DC5V 2A

Power Consumption

≤6W

Temperature

-40ºC ~75ºC

Humidity

10%~90% RH

Unit Weight

1.45KG(pair)

Dimension

183mm×154mm×30mm

Installation

Wall mount

MTBF

≥ 100000Hours

System connection diagram

HDCVI TO Fiber Converter system design:

1 channel High definition CVI over fiber extender for 720P CVI camera,singlemode,FC/SC
