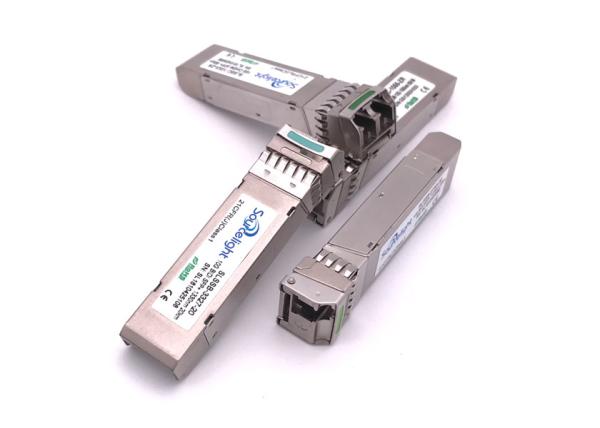

SFP-10G-BX20 SFP Modules Tx1330nm Rx1270 20km Single Mode Transceiver
SFP-10G-BX20 SFP Modules Tx1330nm Rx1270 20km Single Mode Transceiver
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
SFP-10G-BX20
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1pc Independent Box.
Datarate :
10Gbps
Wavelength :
TX1270 / RX1330NM
Distance :
20km
Diagnostics :
Digital Monitor
Transmitter :
FP Laser
Temp. :
0~70 / -40~85
Description

Tx1330nm Rx1270 20km Single Mode Transceiver For SFP Modules SFP-10G-BX20

Overview

The SFP+ BIDI 20KM series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.

Features

  • Supports 9.95Gb/s to 10.3Gb/s data rates
  • Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
  • Single 3.3V Supply
  • Up to 20km on 9/125um SMF
  • A:1270nm DFB Laser transmitter,1330nm receiver
  • B:1330nm DFB Laser transmitter,1270nm receiver
  • Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
  • SFP+ MSA SFF-8431 Compliant
  • Digital Diagnostic SFF-8472 Compliant

Parameter

Package (Form Factor) BIDI SFP+ 20KM
Data Rate (typical) 10.3 Gb/s
Centre Wavelength Tx1270nm/Rx1330nm
Distance 20km
Diagnostics yes
Transmitter DFB Laser
Receiver PIN photo detector
TX Output Power -1~+5(dBm)
RX Sensitivity -15(dBm)
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Simplex LC/UPC

Application
  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • Other Optical Links

SFP-10G-BX20 SFP Modules Tx1330nm Rx1270 20km Single Mode Transceiver

Quality Certification

Quality and standards are the foundation of Sourcelight. We are dedicated to providing customers with outstanding, standards-compliant products and services. Sourcelight has passed many quality system verifications, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
