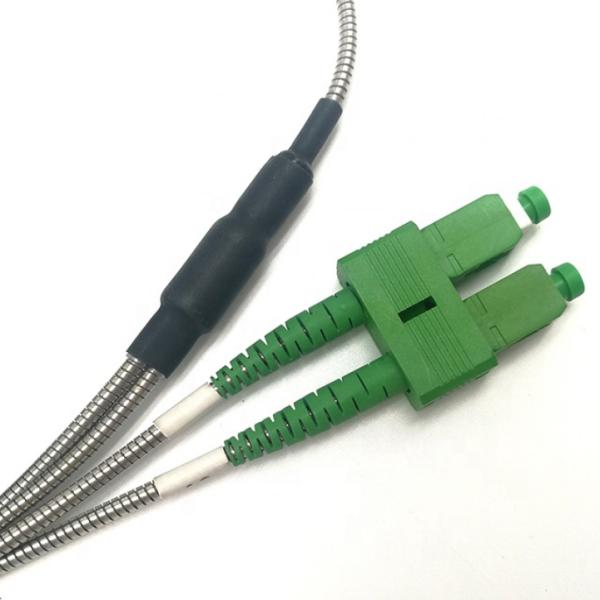

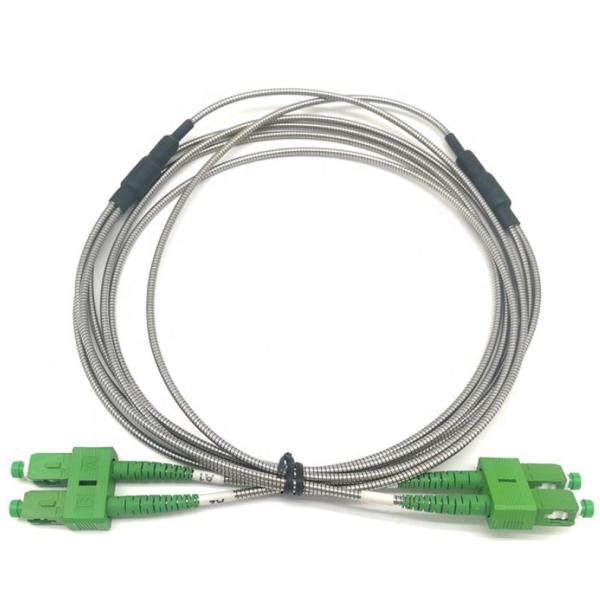

Indoor / Outdoor Armoured 12 core Fiber Optic Cable
Indoor / Outdoor Armoured 12 core Fiber Optic Cable
Specifications
Brand Name :
SUNWISE
Model Number :
K-SW-2D2
Certification :
ISO9001,CE RoHS FCC,CE/TUV/ISO9001
Place of Origin :
CHINA
Application :
FTTH FTTB FTTX Network,Telecom/network
Color :
blue
Fiber type :
G657A2,Singlemode or multimode
Connector type :
SC; FC; LC; ST; MTRJ; MU; E2000; MPO; SMA; FDDI; DIN4; D4
Product name :
Armored Fiber Optic Patch Cable Cord
Insertion loss :
PC/UPC/APC< 0.2dB
Return loss :
PC >45dB UPC >55dB APC >60dB
Wavelength :
1310nm/1550nm/850nm/1300nm
Material :
LSZH,PVC
Cable length :
0.5/1.0/2.0/3.0/As Customer Requested
Connector :
SC/LC/FC/ST,LC- SC,MPO/MTP,Elite or Standard,SC/APC
Operating temperature :
-40 ~+75 Degree
Fiber counts :
duplex,50/125um,ect,simplex
Cable type :
indoor armored patch cord cable
Fiber mode :
SM/MM
Description

Indoor / Outdoor Armoured 12 core Fiber Optic Cable

Features :

High strength yarn member; lightweight, small out diameter; flame-retardant, soft and easy to strip; anti-rat flexible steel armored, environment friendly etc.

Application :

1: Building to building connecting;

2: Indoor / Outdoor soft cable along the wall ceiling, between layers and in conduits;

3: Make pigtails, movable, connectors and patch cord for communication equipment.

Geometrical Characteristic

Item Singlemode Multimode
Outer diameter 6.0mm 6.0mm
Standard color blue gray
Cable weight 50kg/km approx
Operating temperature PVC,OFNP is -20℃~+70℃;LSZH,TPU,PE is -40℃~+80℃
Storage temperature -40℃~+80℃
Tensile strength Short term 800N
Long term 400N
Compression resistant strength ≥3000N/100MM
General attenuation 1310nm ≤0.4dB/km 850nm ≤3.0dB/km
1550nm ≤0.3dB/km 1300nm ≤1.0dB/km
Minimal Bending radius ≥30D ≥30D
Printing contents OPTICAL CABLE SM(9/125) 6.0mm 12C XXXXM OPTICAL CABLE MM(62.5/125) 6.0mm 12CXXXXM

Indoor / Outdoor Armoured 12 core Fiber Optic CableIndoor / Outdoor Armoured 12 core Fiber Optic Cable
