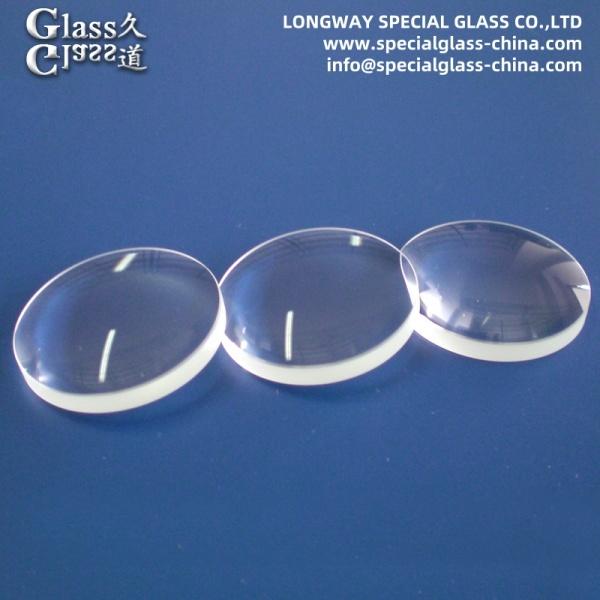

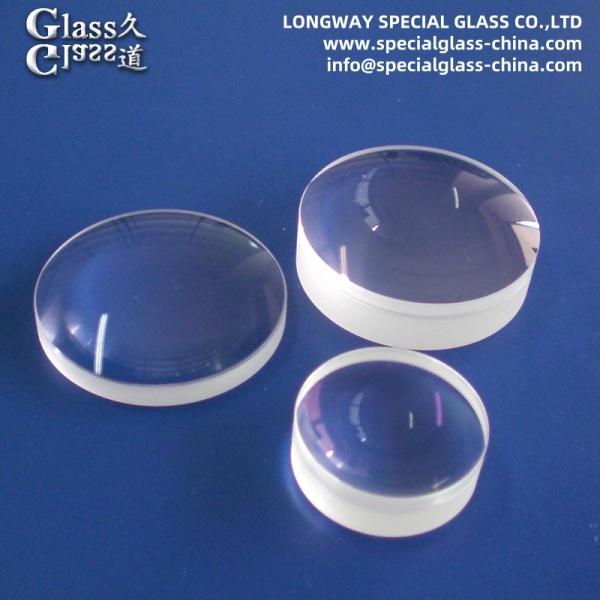

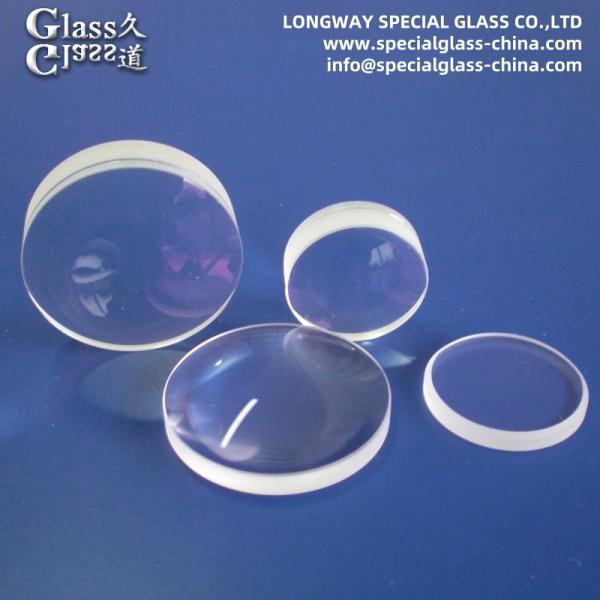

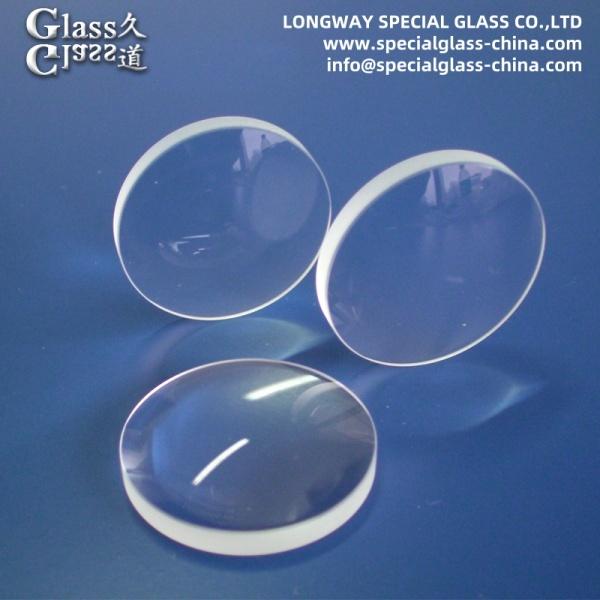

High Precision Optical Focusing Lens for Laser Applications
High Precision Optical Focusing Lens for Laser Applications
High Precision Optical Focusing Lens for Laser Applications
High Precision Optical Focusing Lens for Laser Applications
High Precision Optical Focusing Lens for Laser Applications
High Precision Optical Focusing Lens for Laser Applications
High Precision Optical Focusing Lens for Laser Applications
High Precision Optical Focusing Lens for Laser Applications
Specifications
Brand Name :
LONGWAY
Model Number :
LW160922
Certification :
ISO9001
Place of Origin :
Shanghai, China
MOQ :
700 pieces
Price :
NEGOTIATION
Payment Terms :
T/T,Western Union
Supply Ability :
40000 Pieces per Month
Packaging Details :
paper,foam,carton
Structure :
Convex
Surface :
Polished
Transmission :
over 92%
Coating :
available
Application :
Optics
Material :
Optical glass
OEM :
available
Description

High Precision Optical Focusing Lens for Laser Applications


1. Material Composition‌

  • ‌Lens substrate‌: Fused silica (SiO₂) or N-BK7 optical glass for high laser damage threshold (10-15 J/cm² @1064nm).
  • ‌Coatings‌: Multi-layer AR coatings (R<0.25% per surface) optimized for common laser wavelengths (e.g., 355nm, 532nm, 1064nm).
  • ‌Mounting‌: Anodized aluminum or titanium barrels for thermal stability.

‌

2. Key Properties‌

  • ‌Surface accuracy‌: λ/10 wavefront distortion for diffraction-limited performance.
  • ‌Focal length‌: 10-500mm with ±1% tolerance (telecentric options available).
  • ‌Aperture‌: f/1.4 to f/8 with <0.1% spherical aberration.
  • ‌Temperature range‌: -50°C to +300°C (coefficient matched to laser systems).


‌3. Core Functions‌

  • ‌Beam shaping‌: Converts Gaussian beams to flat-top profiles for uniform energy distribution.
  • ‌Spot size control‌: Achieves micron-scale focal spots (e.g., 5μm @532nm).
  • ‌Collimation‌: Corrects divergence in fiber-coupled laser systems.

‌

4. Applications‌

    • ‌Laser cutting/welding‌: Focuses high-power CO₂/YAG lasers (1-6kW).
    • ‌Medical lasers‌: Used in ophthalmology (LASIK) and dermatology devices.
    • ‌LIDAR systems‌: Optimizes signal-to-noise ratio in automotive/industrial scanners.


Item Optical Convex Focusing Lens
Material Optical glass, Qurartz glass, Pyrex, borosilicate glass, Float glass
Diameter Tolerance +0/-0.2 mm
Thickness Tolerance +/-0.2 mm
Processed by grinding, polishing
Surface Quality 80/50,60/40
Material Quality no scratches and air bubble
Transmission above 90%
Chamfer 0.1-0.3 mm x 45 degree
Surface Coating Available
Usage Photography, Lighting system, Electronic apparatus
