Specifications
Brand Name :
LONGWAY
Model Number :
LW16092025
Certification :
ISO9001
Place of Origin :
Shanghai, China
MOQ :
800 pieces
Price :
Negotiation
Payment Terms :
T/T,Western Union,D/P
Supply Ability :
450000 Piece/ Month
Packaging Details :
electrolytic paper,foam,carton
Item :
Optical Plano Lens
Structure :
Plano-convex
Surface quality :
60/40
Transmission :
over 95%
Coating :
AR coating
Processing :
grinding&polishing
Application :
Optics and lighting
OEM :
available
Description

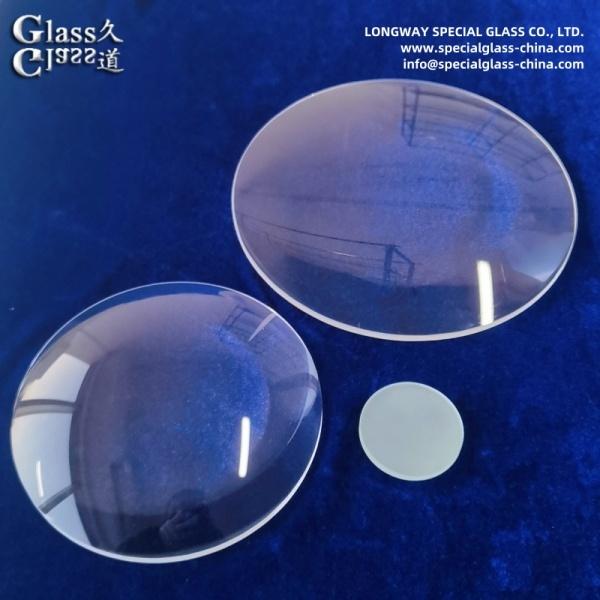

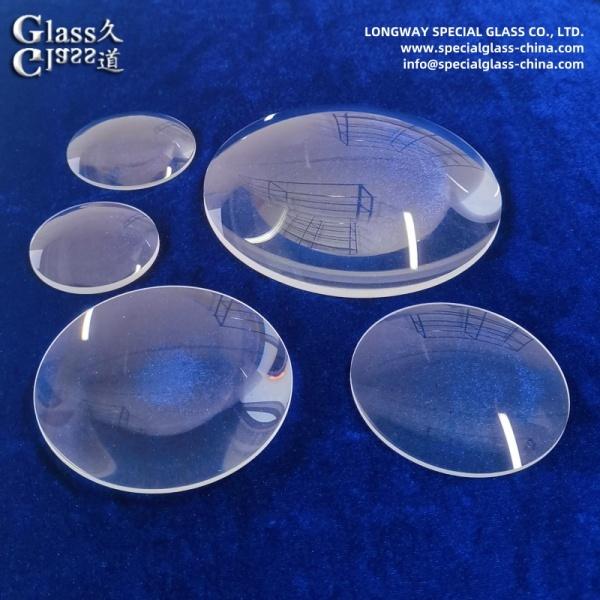

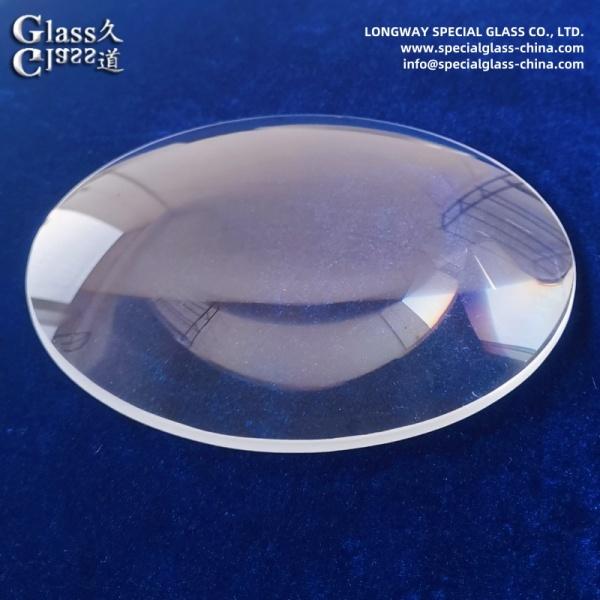

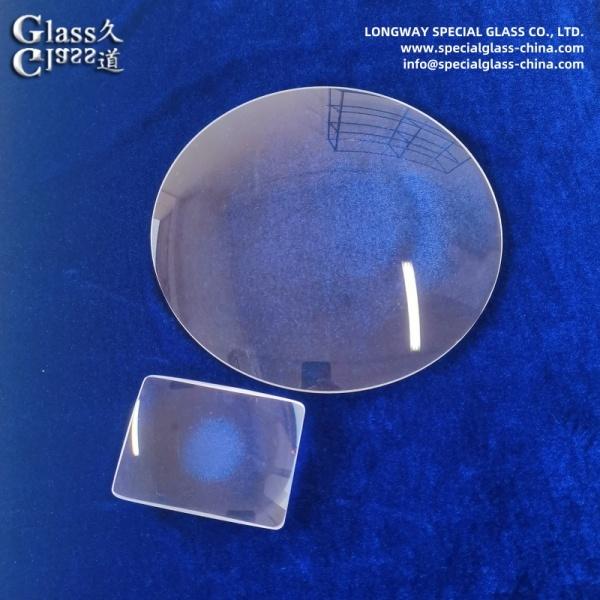

Multi-Layer AR Coating Optical Plano Lens for Scientific and Research Applications


1. Material Composition:

  • Optical Glass Substrate: High-grade materials like Schott N-BK7, fused silica, or specialty crystals ensuring low thermal expansion and homogeneity.

  • Multi-Layer AR Coating: Precision-deposited anti-reflective layers optimized for specific wavelengths (e.g., UV, visible, or IR spectra).


2. Key Properties:

  • Ultra-Low Reflectivity: Achieves >99.5% light transmission per surface with near-zero reflection losses.

  • Wavelength Specificity: Customizable coatings for target ranges (e.g., 400-700nm, 1064nm laser lines, or broadband IR).

  • Environmental Durability: Resists humidity, abrasion, and thermal cycling (-40°C to 300°C operational range).

  • Surface Precision: λ/10 flatness and 10-5 scratch-dig standards for wavefront integrity.


3. Core Functions:

  • Light Transmission Maximization: Eliminates Fresnel reflections to enhance signal-to-noise ratios in optical systems.

  • Beam Steering & Splitting: Serves as a neutral substrate for laser path control or beam combiners.

  • Optical Interface Protection: Shields sensitive instruments from back-reflections and stray light.


4. Applications:

  • Research Microscopy: Confocal, fluorescence, and super-resolution systems requiring minimal glare.

  • Laser Systems: Cavity mirrors, harmonic separators, and interferometry components.

  • Spectroscopy: Windows for spectrophotometers, monochromators, and FTIR instruments.

  • Aerospace & Defense: Targeting systems, LIDAR, and high-energy laser applications.


Name Plano Lens

Material

 Optical Glass,borosilicate glass,Fused Silica,
Diameter Tolerance +0/-0.2 mm
Thickness Tolerance +/-0.2 mm
Cler Aperture over 90%
Surface Quality 80/50~10/5
Transmission above 92%
Chamfer 0.1-0.3 mm x 45 degree
Focal Length Tolerance +/-2%
Back Focal Length Tolerance +/-2%
Coating available
Usage optical system, photographic sysem, Lighting system,laser,camera,monitor,projector,magnifier,telescope, etc.
