Metallurgical Dark Field Microscope 50X 500X Bright Ground Trinocular
Metallurgical Dark Field Microscope 50X 500X Bright Ground Trinocular
Specifications
Brand Name :
Phidix
Model Number :
M18100
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
Carton
Color :
White
Customization :
OEM, ODM
Lead-time :
15-20 Work Days
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Metallurgical Microscope
Objective lens :
5X,10X,20X,50X
Magnification :
50X-500X
Description

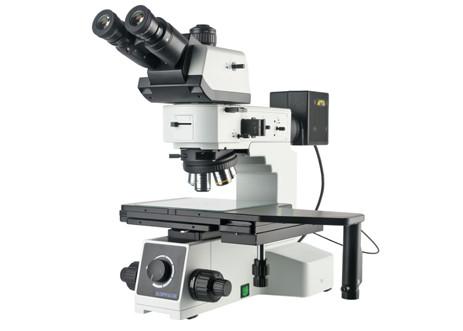

50X-500X Trinocular Bright And Dark Field Metallurgical Microscope

M18100 50X-500X Trinocular Bright And Dark Field Metallurgical Microscope The product could be widely used in various industrial applications with perfect performance.

Item Description / Value
Magnification: 50X,100X,200X,500X
Optical System: Infinity Chromatic Aberration Correction Optical System
Eyepiece: High Eye Point large Field of View flat Field Eyepiece PL10X22mm
Objective lens: LMPL-BD Infinite long Working Distance Bright and Dark Field Metallographic Objective
Observation Tube: Adjustable 5-35° inclination angle Three-Way Observation Tube With Infinite Hinge, Inter-pupillary Distance Adjustment:50-76mm,Unilateral Diopter Adjustment:±5 Diopter, Two-level Split Ratio 100:0 or 0:100
Objective Lens Converter: Inverted Bright and Dark Field Five-Hole Converter With DIC Slot
Coarse and Fine Focusing Mechanism: Translucent and Reflective Frame, Front low-Hand Position Coarse and Fine Coaxial Focus Adjustment Mechanism. Coarse Adjustment Stroke 33mm,Fine Adjustment Accuracy 0.001mm.With Adjustment Elastic Device to Prevent Sliding and Random Upper limit Device
Operating Platform: 6-Inch Three-layer Mechanical Mobile Platform, Low-Hand Position X,Y Direction Coaxial Adjustment, Platform Area 450mm×220mm,Reflected illumination Movement Range:158mm×158mm;Transmission illumination Movement Range:100×100mm,With Clutch Handle, Can Be Used For All Fast Moving Within The Range of Travel, Glass Stage Plate (For Transmission and Reflection)
Upper Lighting System: Built-In 100-240V Wide Voltage System,5W Warm Color LED Transmitted Light illumination System, Independent Control of Upper and Lower Light; With Filter Slot and Polarizing Device Slot; With Bright and Dark Field Switching Mechanism, Preset Center, Light Intensity Continuously Adjustable
Under Lighting System: Single High-Power 5W Warm Color LED White Light, Continuous Adjustable Light Intensity
Condenser: Transmissive Shake-Out Achromatic Condenser (N.A0.9) With Variable Aperture Stop, Center Adjustable
Polarizer: Polarizer Insert Plate,360°Rotating Analyzer Insert Plate
Trinocular Interface: 0.5X C-mount Interface, Adjustable Focus

Metallurgical Dark Field Microscope 50X 500X Bright Ground Trinocular
