DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller
DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller
DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller
DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller
DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller
DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller
DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller
DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller
Specifications
Brand Name :
OPT
Model Number :
OPT-APM0524B-2
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
7 work days at the soonest
Packaging Details :
Craft Box
Product name :
APM Mini Analog Voltage Controller
Model :
OPT-APM0524B-2
Input Voltage :
DC20~24V
Output Power :
12W/CH
Channels :
2
Standby Power Consumption :
≤3W
Dimensions(L*W*H) :
24*62*108.3mm
Weight(kg) :
0.1kg
Description

1.8A Machine Vision Controller APM Mini Analog Voltage Controller DC20~24V 12W/CH OPT-APM0524B-2

Product Features

◆ Compact appearance design
◆ 20 - 24V DC input voltage; can be convenient to use DC power on other devices
◆ Manual stepless light intensity control
◆ Convenient mounting with screws or on DIN rails
◆ External trigger: External trigger input (e.g. camera trigger signal) for related light strobes and other sequences. (Strobe mode can greatly improve light source expectancy.)
◆ Current: 1.8A
◆ Illumination mode: strobe/continuous
◆ Protection forreverse polarity connection is available.
◆ ON/OFF mode conversion is supported.
◆ Product weight(kg): 0.1kg
◆ The APM mini analog voltage controller can normally operate under the environment of temperature from -5℃ to 50℃.
◆ Dimensions(L*W*H): 24*62*108.3mm
◆ The standby power consumption is no more than 3 watt.
◆ The output power is 12W/CH.

Model Meaning

OPT-APM0524B-2
OPT: Brand name
APM: Analog voltage controller
05: Max. output current: 0.5A
24: Max. output voltage: 24V
B: Additionalinfo.: The 2nd generation
2: Channels

Specifications

Model OPT-APM0524B-2
Voltage DC20~24V
Current 1.8A
Illumination Mode Continuous/strobe
Intensity Control Stepless
Trigger Switch
Response Time ≤80μs
Response Frequency ≤1KHz
Channels 2
Output Power 12W/CH
Standby Power Consumption ≤3W
Dimensions(L*W*H) 24*62*108.3mm
Operating Temperature -5℃~50℃
Weight(kg) 0.1
ON/OFF Mode Conversion Support
Protection Forreverse Polarity Connection Yes

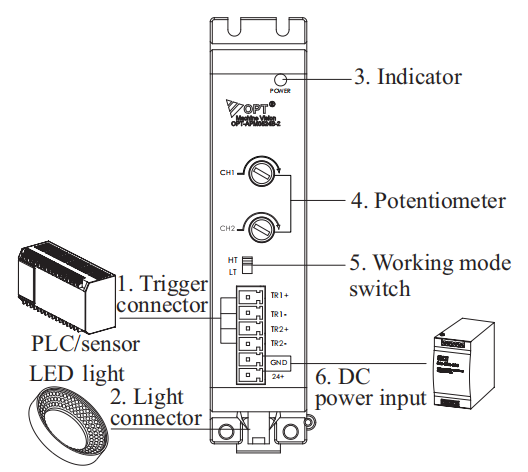

Device Overview

DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller

DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller

DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller

Product Details

DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller

DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller

Mounting

DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller

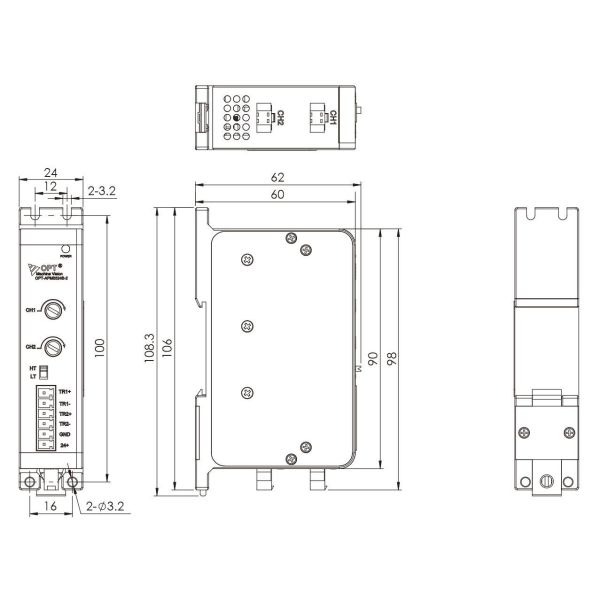

Dimensions (mm)
OPT-APM0524B-2
DC20~24V 12W/CH 1.8A Machine Vision Controller APM Analog Voltage Controller
