Basic Info.
| Model NO. |
SEMI250MGD |
Loading capacity(kg/m²) |
Up shelf: 160 Bottom shelf: 220 |
| Fan Motor |
SAIWEI EC |
Power Source |
Electricity |
| Door Type |
Swing Glass Door |
Temperature Type |
Single-temperature |
| Temperature Control |
Smart Thermostat |
Function |
Cold Storage |
| Defrost Type |
Auto Defrost |
Volume Frequency |
220V/50Hz;110V/60Hz;220V/60Hz |
| Certification |
CE,CB,SABER,GEMS |
Light |
LED |
| Temp Range |
3M0,3M1,3M2,3H1 |
Defrost |
AUTOMATIC |
| Refrigerant |
R290 |
Thermostat |
Digital:Dixell |
| Color |
Customizable |
Specification |
2500*840*1500 |
| Glass Type |
Double Glazed Low-E Glass Door |
Origin |
CHINA |
| Compressor |
SECOP/EMBRACO |
Production Capacity |
1000CS/Year |
| Trademark |
Customizable |
Customization: |
Available |
Our Advantages:
This commercial display chiller adopts a self-contained R290 compressor and supports plug-and-play. It is equipped with 3 layers of adjustable shelving fitted with plexiglass shelf stoppers and price tags. LED lights are mounted under each shelf and at the top. Standard configurations include SAIWEI EC evaporator fan motor and Dixell digital thermostat. The unit features a fully-transparent double glazed Low-E glass door and panoramic endpanel, and custom colour is available. Various optional accessories can be selected to satisfy different commercial demands.
Standard features:
- Self-contained compressor with R290 gas, plug in for use
- 3 layers adjustable shelving, with plexiglass shelf stopper & price tag
- LED light under each shelf & top
- SAIWEI EC evaporator fan motor

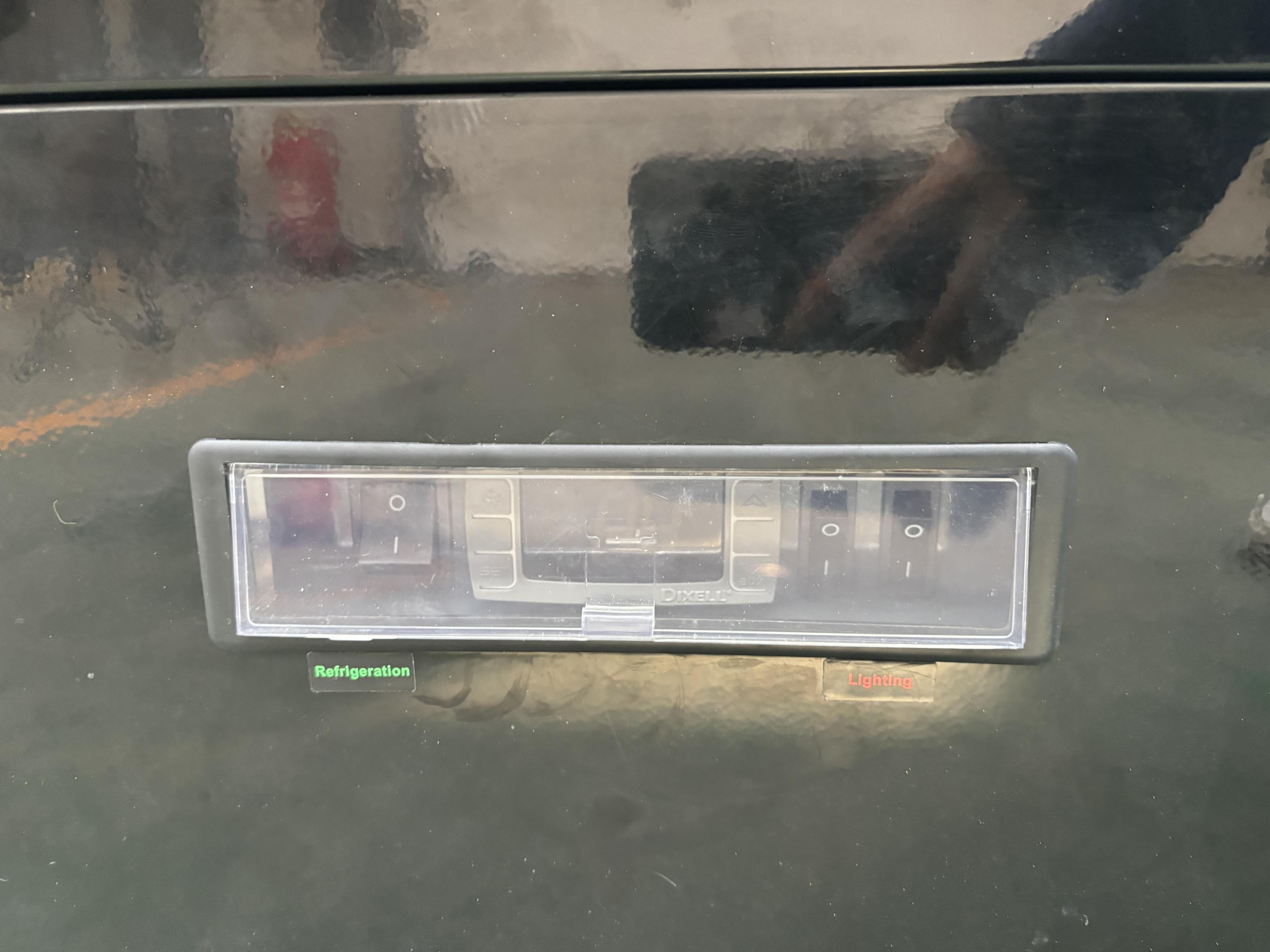

- Dixell digital thermostat
- Fully-transparent double glazed Low-E glass door
- Panoramic endpanel
- Custom color
Accessaries:
- Inverter compressor
- Mirror / Solid endpanel
- Stainless steel pipe bumper
- Sliding door (not available for 1875mm cabinet)
SEMI GD Series:
| SEMI GD |
Unit |
94 |
125 |
150 |
187 |
250 |
| Cabinet length without endpanel (30mm each) |
mm |
998 |
1310 |
1560 |
1935 |
2560 |
| Depth |
mm |
740/840(+45 stainless stell bumper) |
| Height |
mm |
1500 |
| Bottom shelf depth |
mm |
345/445 |
| Up shelf depth |
mm |
200/250/300/350/400 |
| Loading capacity |
kg/m² |
Up shelf: 160 Bottom shelf: 220 |
| Temperature Class |
|
3M0,3M1,3M2,3H1 |
Details:
