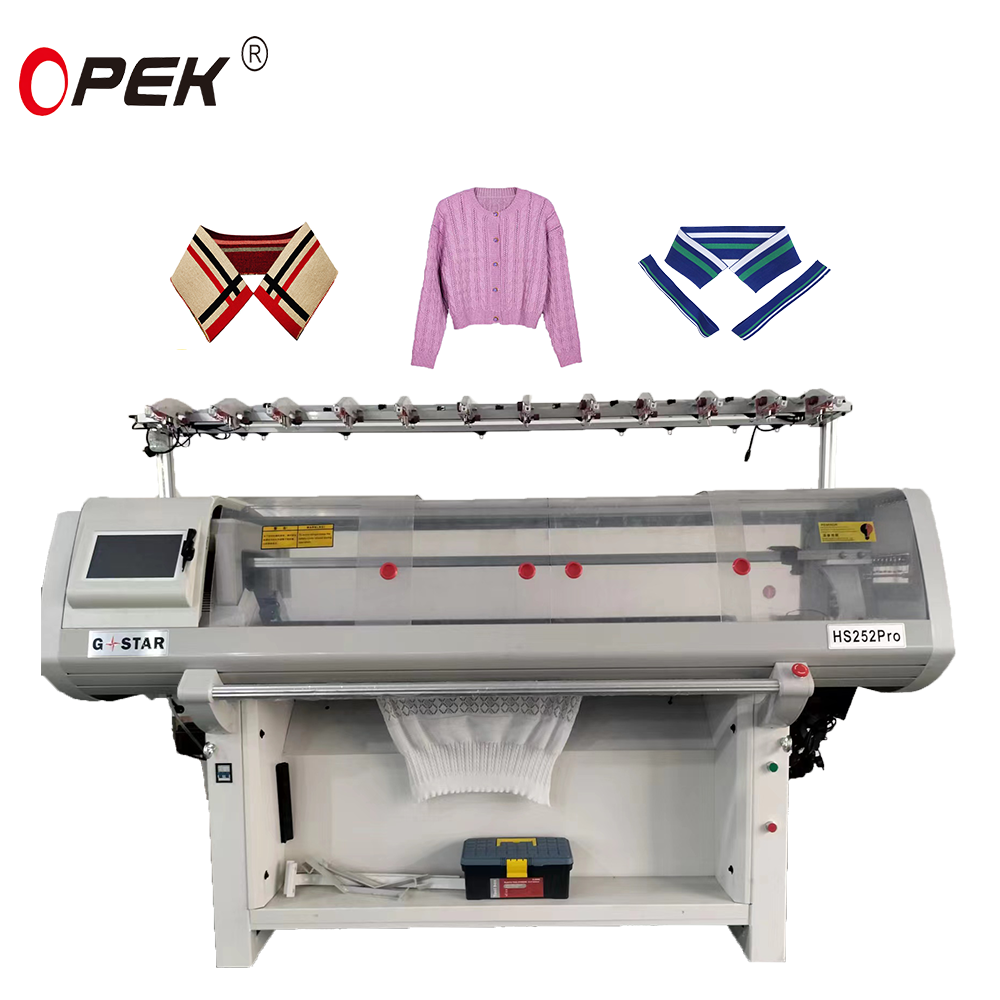

16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
Specifications
Applicable Industries :
Garment Shops, Manufacturing Plant, Farms, Retail, Advertising Company
Condition :
New
Product Type :
Hat, Scarf, SWEATER
Type :
jacquard
Production Capacity :
1.6m/S
Place of Origin :
Anhui, China
Brand Name :
OPEK
Power :
1.5 W
Knitting Style :
flat
Knitting Method :
Double
Computerized :
Yes
Weight :
650 KG
Dimension(L*W*H) :
2500*850*1600mm
Warranty :
1 Year
Key Selling Points :
Low Maintenance Cost
Gauge :
1.5 GG, 3 GG, 12 GG, 14 GG, 2 GG, 16 GG, 9 GG, 5 GG, 10GG, 18GG, 16GG, 8GG, 3-5-7 multi-gauge, 2.5gg,3gg, ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 14gg
Knitting width :
52 inch
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
2 years
Core Components :
Motor, Gearbox
Product Name :
Chinese sweater computerized flat knitting machine
After-sales Service Provided :
Engineers available to service machinery overseas
Knitting system :
Single carriage with double system
Keywords :
computerized flat knitting machine
Knittind width :
52 inch((36-100 inch all available ))
Machine Type :
Fully Jacquard Flat Knitting Machine
Function :
Knititing Shoes Upper/sweater/hat
Speed :
Higher Speed
Price :
$7,000.00/sets 1-9 sets
Description
Product descript
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production

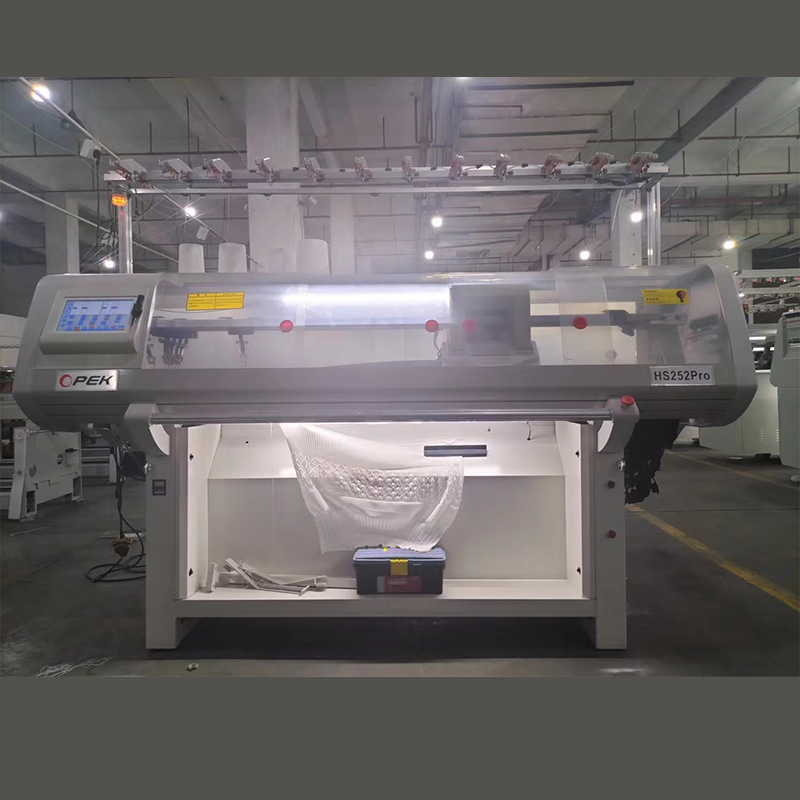

52 inch Economy Double system computerized flat knitting machine

This system is automatic computerized flat knitting machine
It adopts digital technology to realize the knitting functions transfer tuck,eyelet stitch,jacquard,apparent shape, hidden shape and other regular pattern knitting functions.

It can knit basic stitch like plain stitch,rib fabric,links and interlock stitch,etc.
Irregular multi-color jacquard,twisted flower weft organization,cord weave,racked stitch,cable,intarsia,etc.
It is suitable to use synthetic,wool,acrylic,mixed fiber,yarn material etc to knit ready-made sweater,collar ,vamp
,hat,gloves,scarf and accessories of cloth. So as to achieve multi-functional all-in-one machine
Workshop assembly line after layer upon layer of strict testing to ensure the stable and efficient work of the machine


16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production

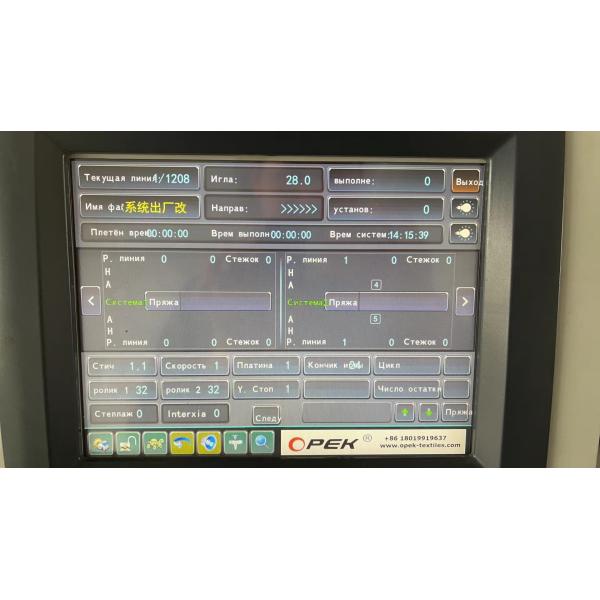

LCD Touch screen

Humanized design control interface large memory capacity, can store about 1000 patterns, for tens of thousands of lines of complex
patterns can also be read quickly without waiting. Stable performance make the operation more convenient, easy to learn
ndunderstand.
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production

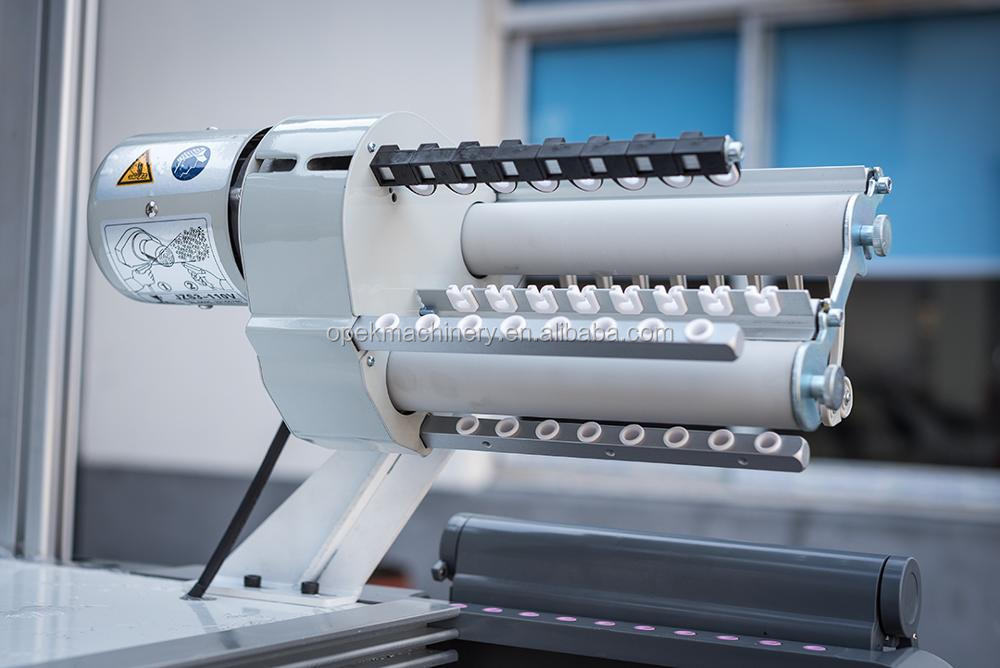

Positive feed yarn device

Positive yarn feed device could reduce resistance while yarn is moving , suit for fabrice with lace of elasticity and brittle
fabric to make the fabric even and improve knitting efficiency.
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production

Motorized inversion bar & Tight handing head

The carriage inversion bar driven by motor ,carriage return is more accurate Tight is controlled by the motor ,to achieve
different degrees of tight tuck,ranging from 0 to 80 .
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production

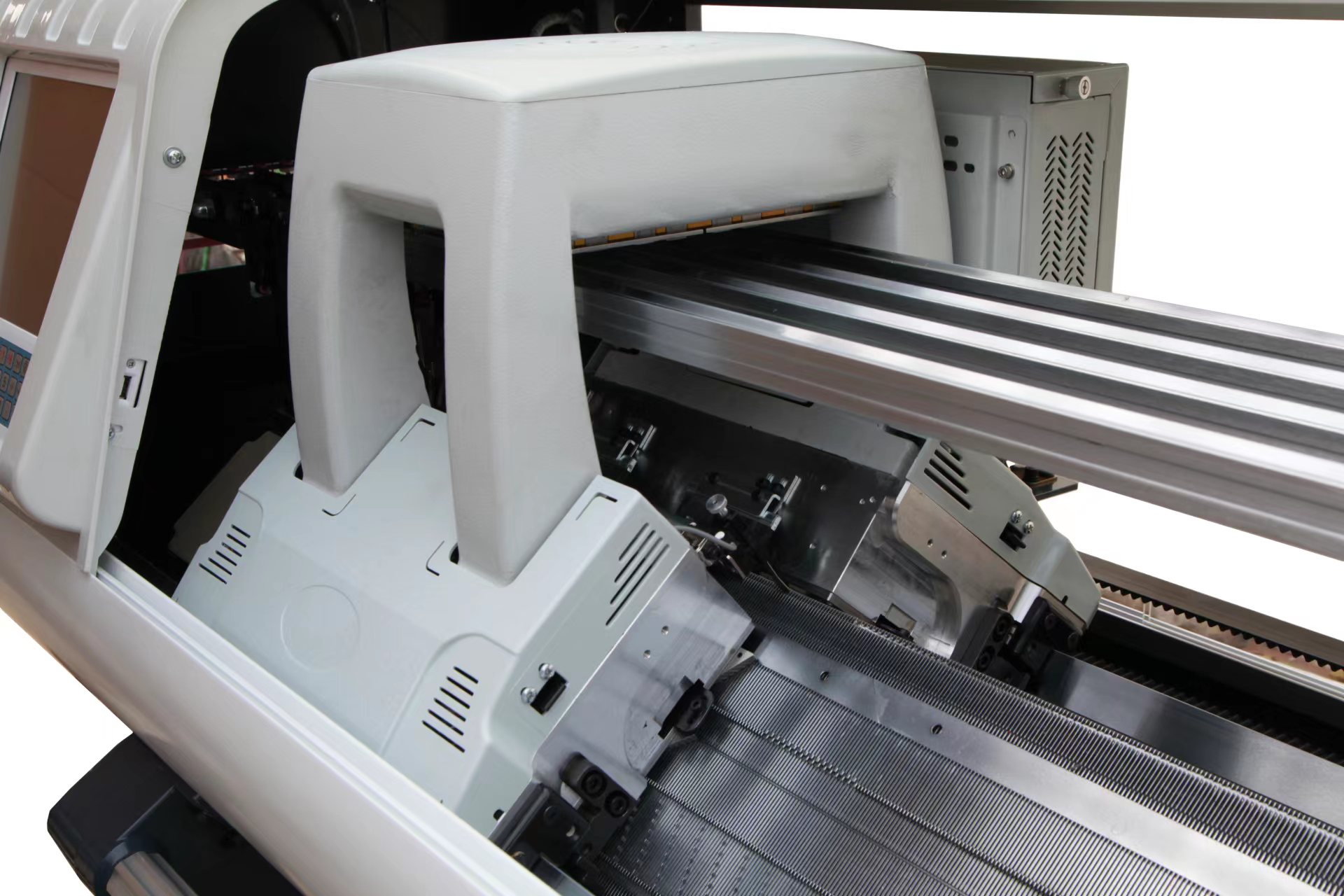

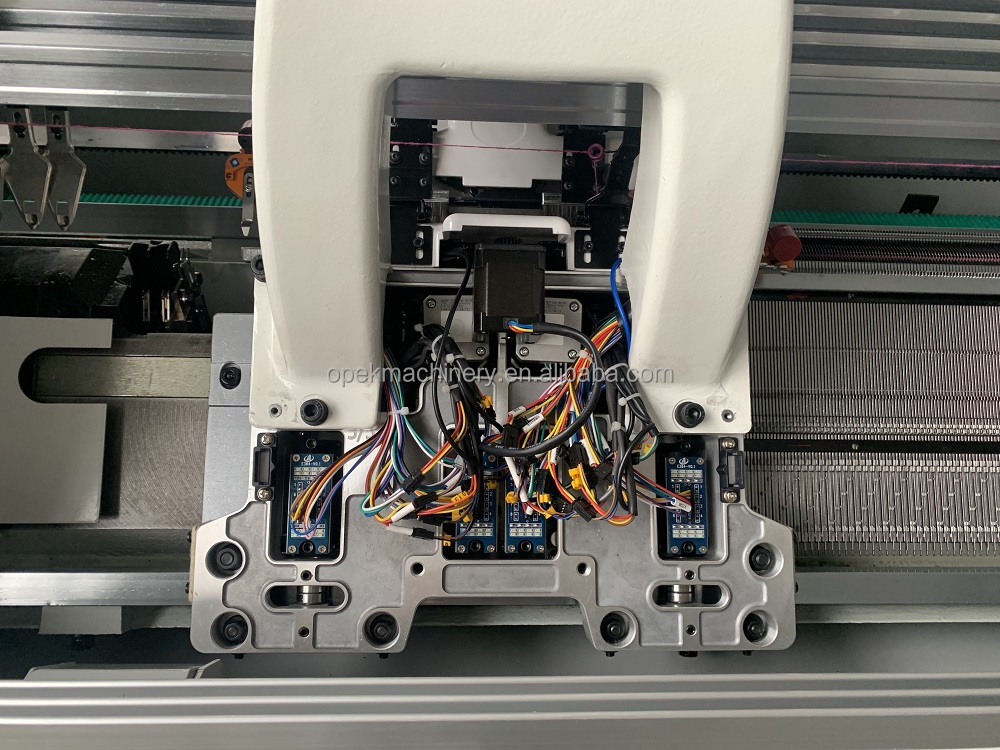

Ultra-small Carriage

Further optimize the size of the machine carriage ,reduce the carriage return distance and improve the efficiency .
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production

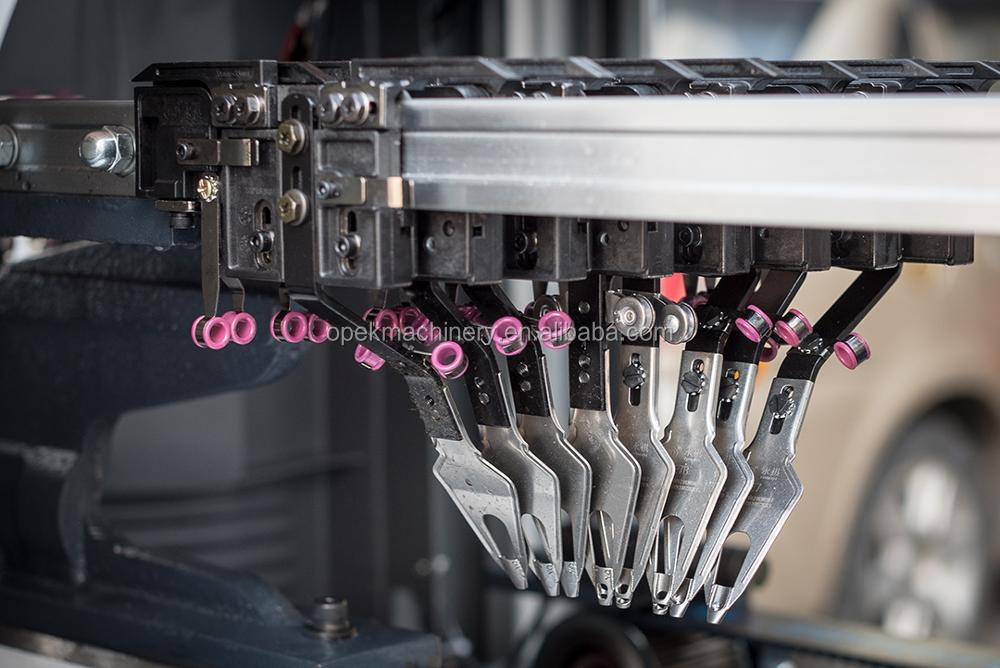

16 yarn carriages

The 16 yarns can be used by any weaving system and can be switched at any position. According to different knitting speed the
control program can automatically adjust the position of the yarn nozzle.
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production

Plus wide transmission belt

Specifical design double row synchronizing transmission belt let the machine with more stable running performance .
Mainly specification
Gauge :
3G,3.5G,5G,7G,8G,9G,10G,12G,14G,16G,3-5-7G multi-gauge
Knitting width :
52 inches (60, 72, 80 inches Customizable)
knitting function:
Jacquard,Transfer,Miss,Intarsia,Pointelle,Cable,Hide And Other Regular Pattern Knitting Fuctions.(Noted:Tuck can't be knitted with
other knitting action in same line)
Knitting speed:
1.4m/Second(Max), 32 section adjustable
Knitting system:
Single carriage with Double System
Stitch density:
Controlled by 32 section electricity, density adjustment driven by stepping motor, range: 0-650
Needle Bed Racking:
AC Servo Motor drive, the maximum racking within 2 inches
Needle Selection System:
8 section electronic needle actuator
Yarn Feeder:
2 pcs Proactive Yarn Feeders
Stitch system:
2*8 yarn carriers are arranged on the left and right sides of the 4 double side guide rails.
Yarn Carriers:
Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width
jacquard needle selector.
Transmission system:
Belt drive, High precision AC servo motor control.
Data input:
Input and output patterns via USB, PC and Internet
Protection system:
Automatic stopping device if yarn broken, yarn knot, batching, striking, completion, overload, designated
starting and stopping, program error
Safety device:
The whole machine cover to reduce noise and dust, the protecting cover is equipped with stopping sensor, emergency
stopping and power off device
Network
Has network interface,enable remote-monitoring via network,and connecting with ERP system.
Power Supply:
Voltage: AC 220V, Frequency: 50HZ/60HZ, Power:1KW
Volume and weight
2450*900*1800mm 700kgs
Knitting samples
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
Company Show
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production

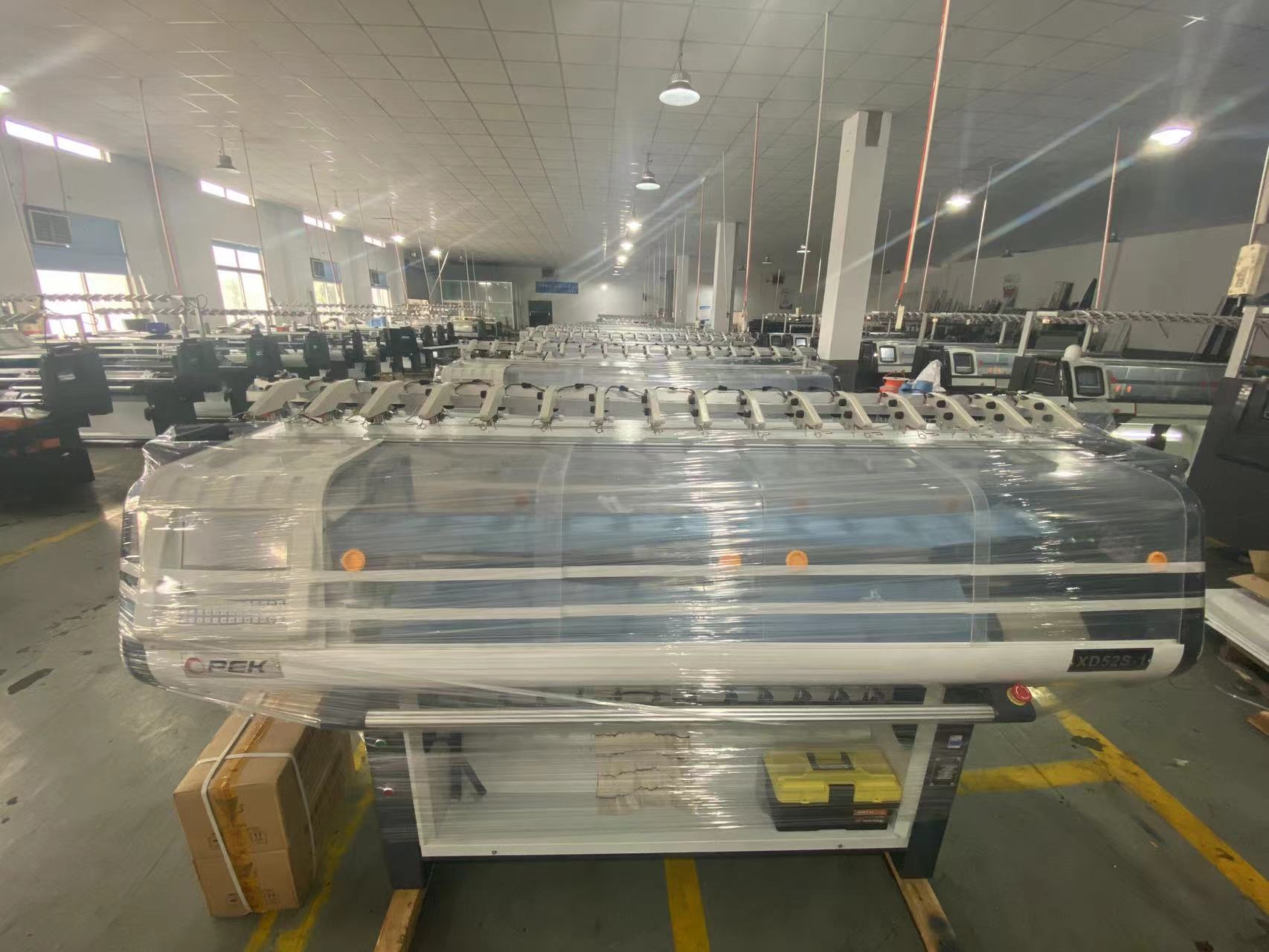

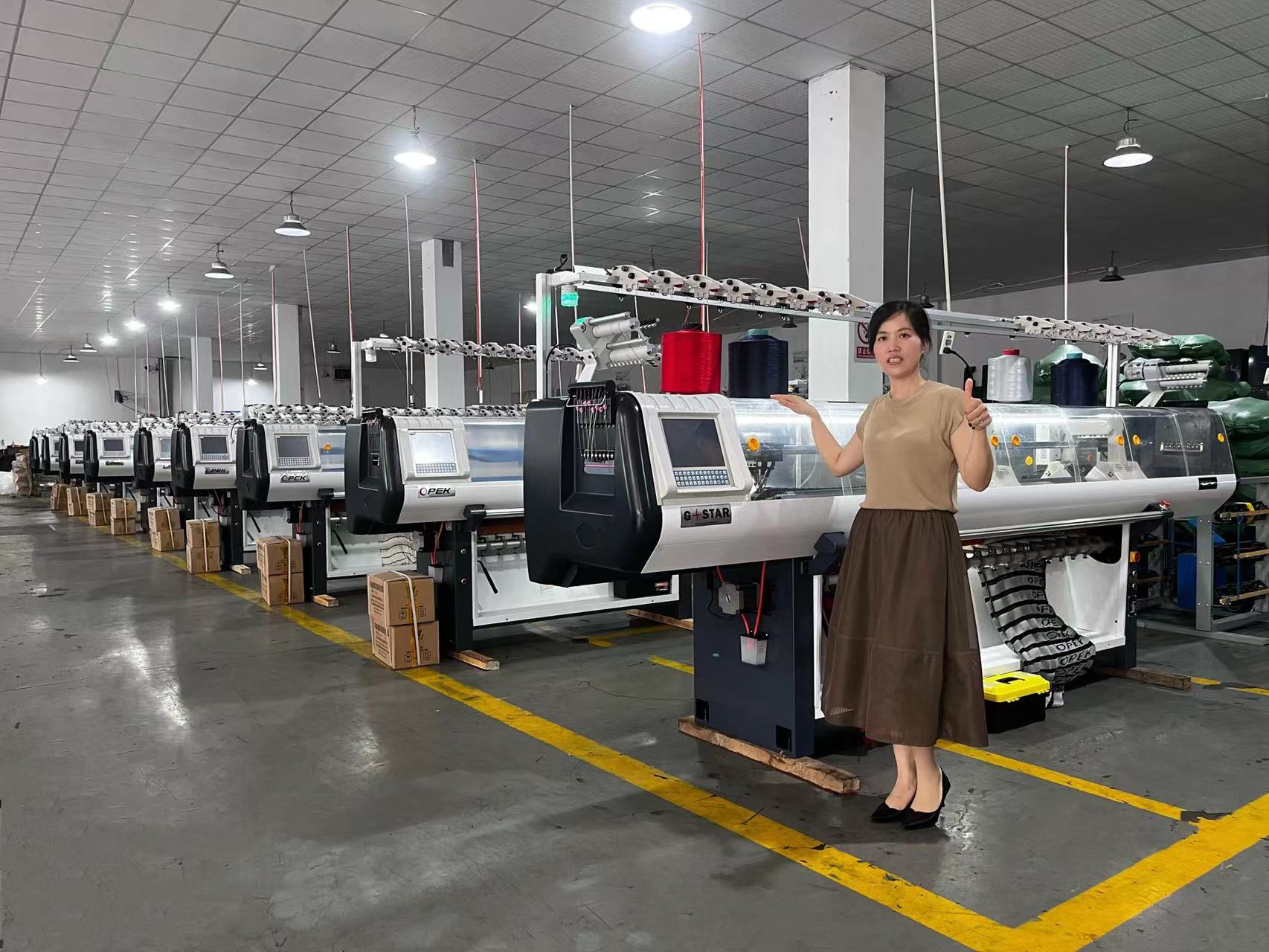

OPEK workshop
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production

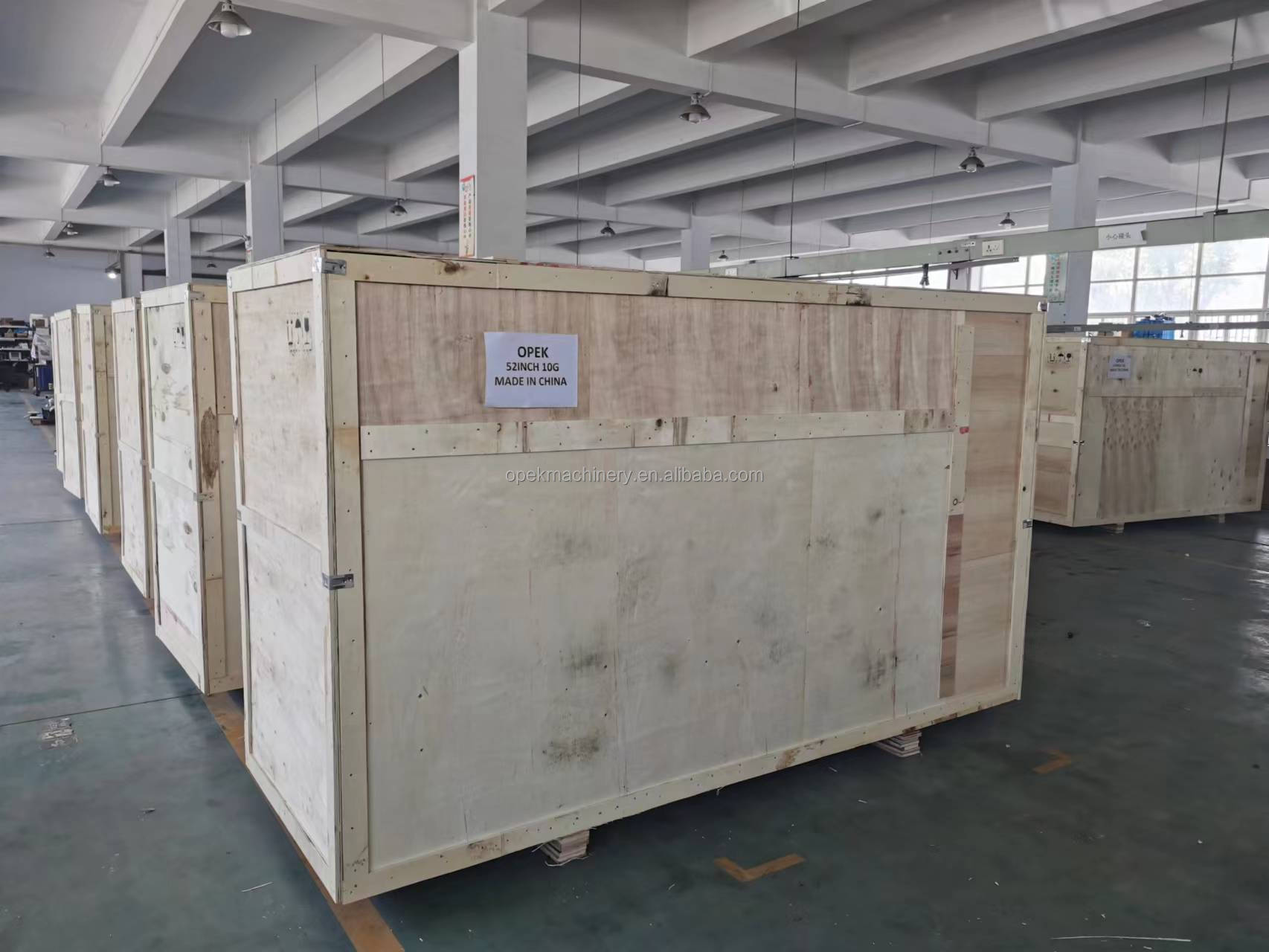

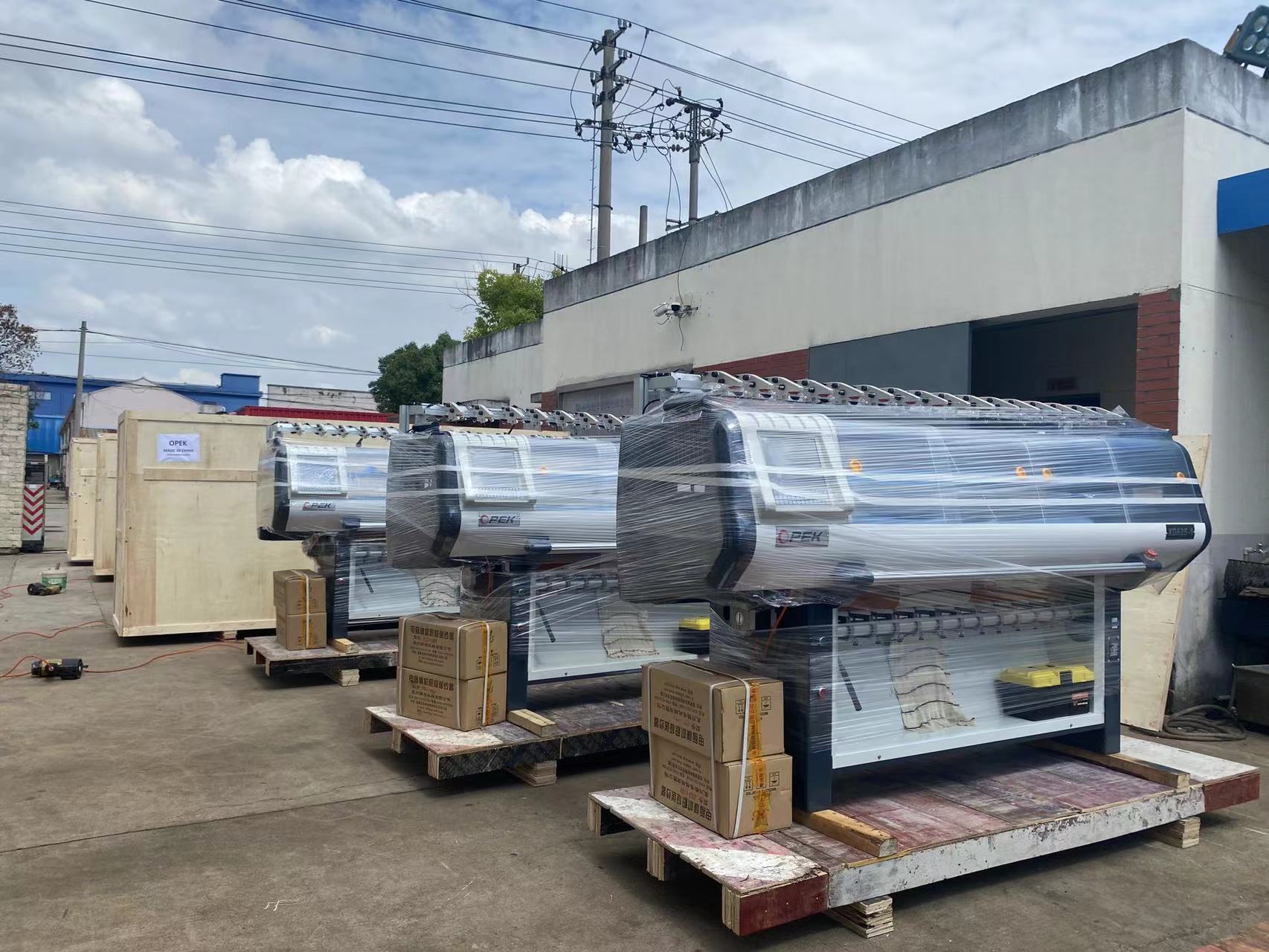

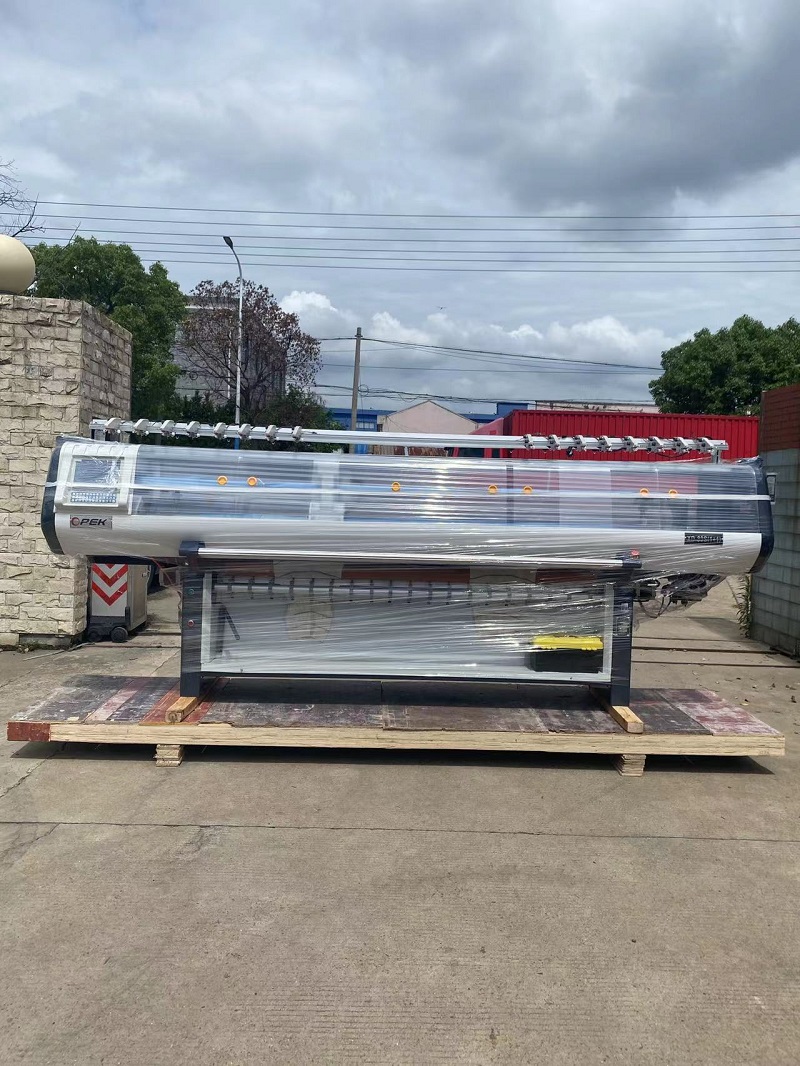

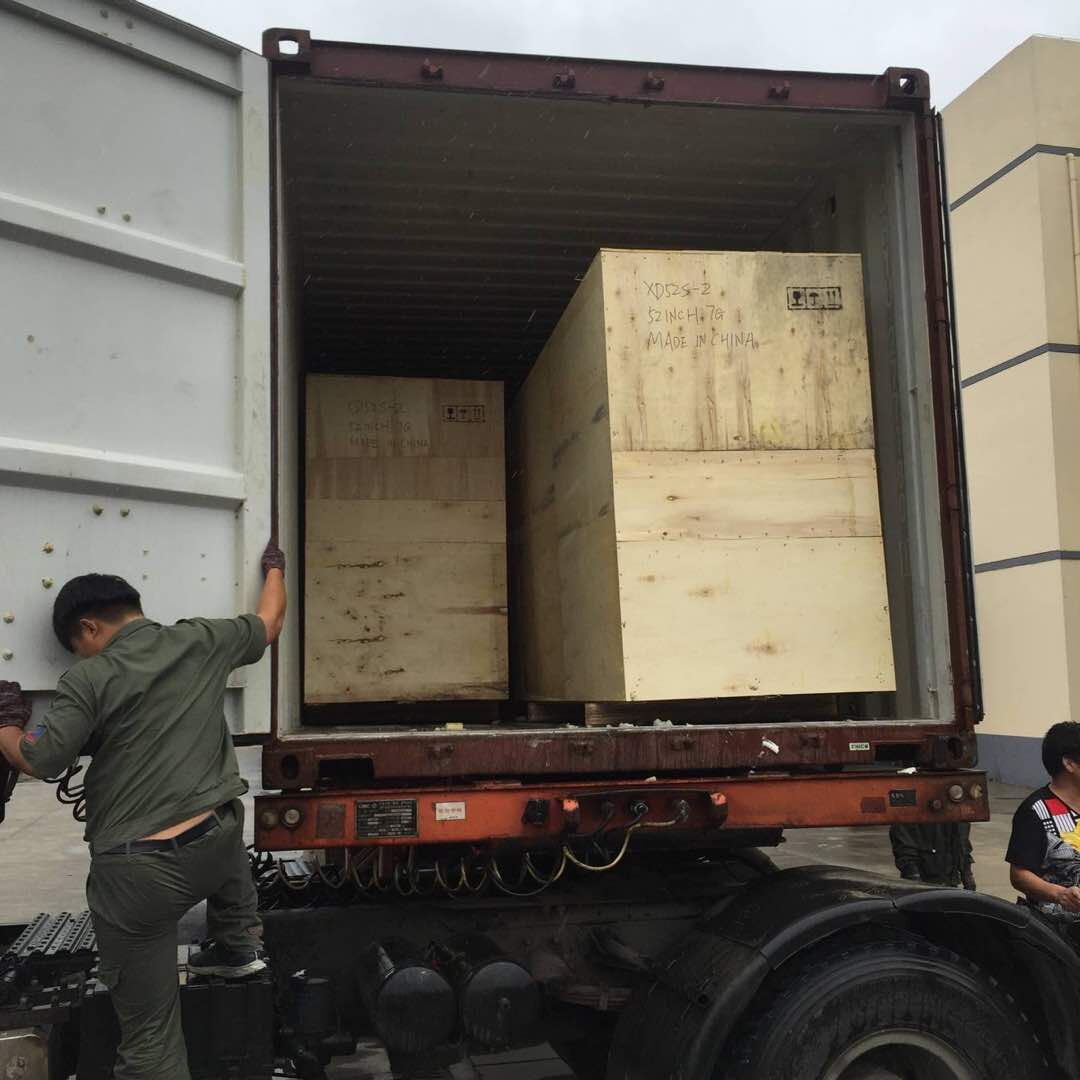

Packing & Delivery
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
Successful case
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
Certifications and Honor
16GG Fully Jacquard Flat Knitting Machine Double System 52inch for High Production
