Specifications
Applicable Industries :
Garment Shops, Manufacturing Plant, Farms, Retail, Advertising Company
Condition :
New
Product Type :
Hat, Scarf, SWEATER
Type :
jacquard
Production Capacity :
1.6m/S
Place of Origin :
Anhui, China
Brand Name :
OPEK
Power :
1000 W
Knitting Style :
flat
Knitting Method :
Double
Computerized :
Yes
Weight :
650 KG
Dimension(L*W*H) :
2500*850*1600mm
Warranty :
1 Year
Key Selling Points :
Low Maintenance Cost
Gauge :
1.5 GG, 3 GG, 12 GG, 14 GG, 2 GG, 16 GG, 9 GG, 5 GG, 10GG, 18GG, 16GG, 8GG, 3-5-7 multi-gauge, 2.5gg,3gg, ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 14gg
Knitting width :
52 inch
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2024
Warranty of core components :
1 Year
Core Components :
Motor, Gearbox
Product Name :
Chinese sweater computerized flat knitting machine
After-sales Service Provided :
Engineers available to service machinery overseas
Knitting system :
Single carriage with double system
Keywords :
computerized flat knitting machine
Knittind width :
52 inch((36-100 inch all available ))
Machine Type :
Fully Jacquard Flat Knitting Machine
Function :
Knititing Shoes Upper/sweater/hat
Speed :
Higher Speed
Price :
$8,300.00/sets 1-9 sets
Description
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters
Product Description & Specification

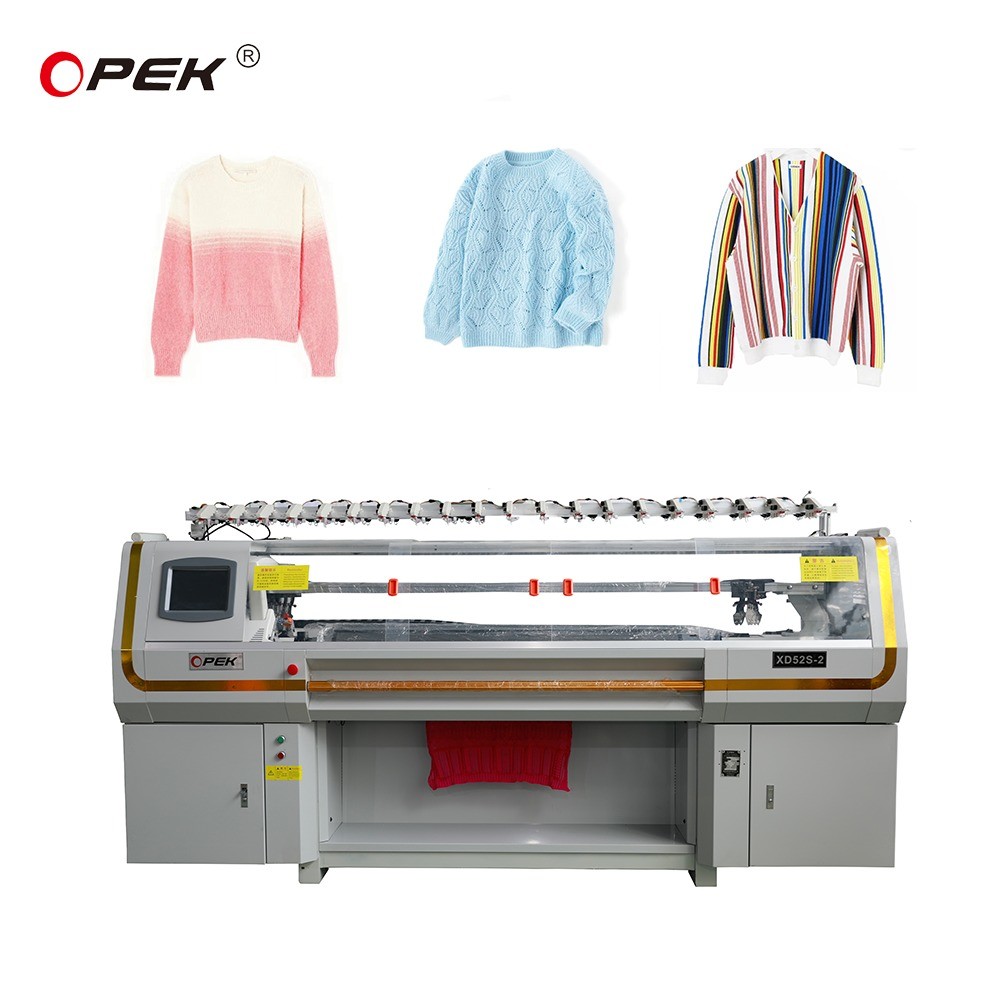

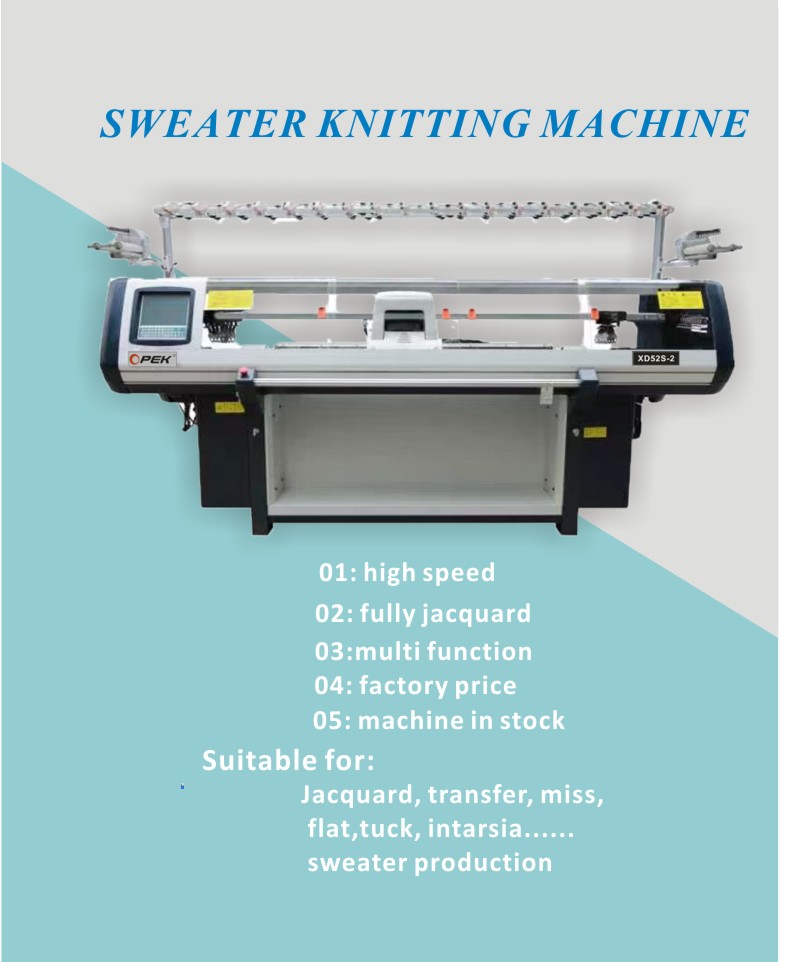

OPEK Brand XD52S-2 Double system Sweater Knitting Machine
Hefei Opeck Machinery Co.,Ltd company Double system machine has high roller, high-performance sinker, dynamic stitch, motor control reserving carriage,digital technology, high-speed and efficient, to achieve point, tuck, jacquard, intarsia, full needle jacquard, apparent shape, hidden shape, and other irregular patterns. suitable for wool, cashmere, cotton, chemical fiber, silk and all kinds of blended yarn, the production of sweaters, blanket, scarfs, gloves, hats and knitted apparel accessories.irregular multi-color jacquard,twist flowers weft organization,cord weave,racked stitch,cable,etc.
Model
Knitting Width
Machine size (mm)
Package size (mm)
Weight (kg)
XD36S-2
36 inch
2050X750X1750
2450X1000X1800
550
XD52S-2
52 inch
2450X750X1750
2850X1000X1800
650
XD60S-2
60 inch
2650X750X1750
3000X1000X1800
750
XD72S-2
72 inch
2950X750X1750
3000X1000X1800
950
XD80S-2
80 inch
3450X750X1750
3760X900X1440
1100
Certifications and Honor
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters

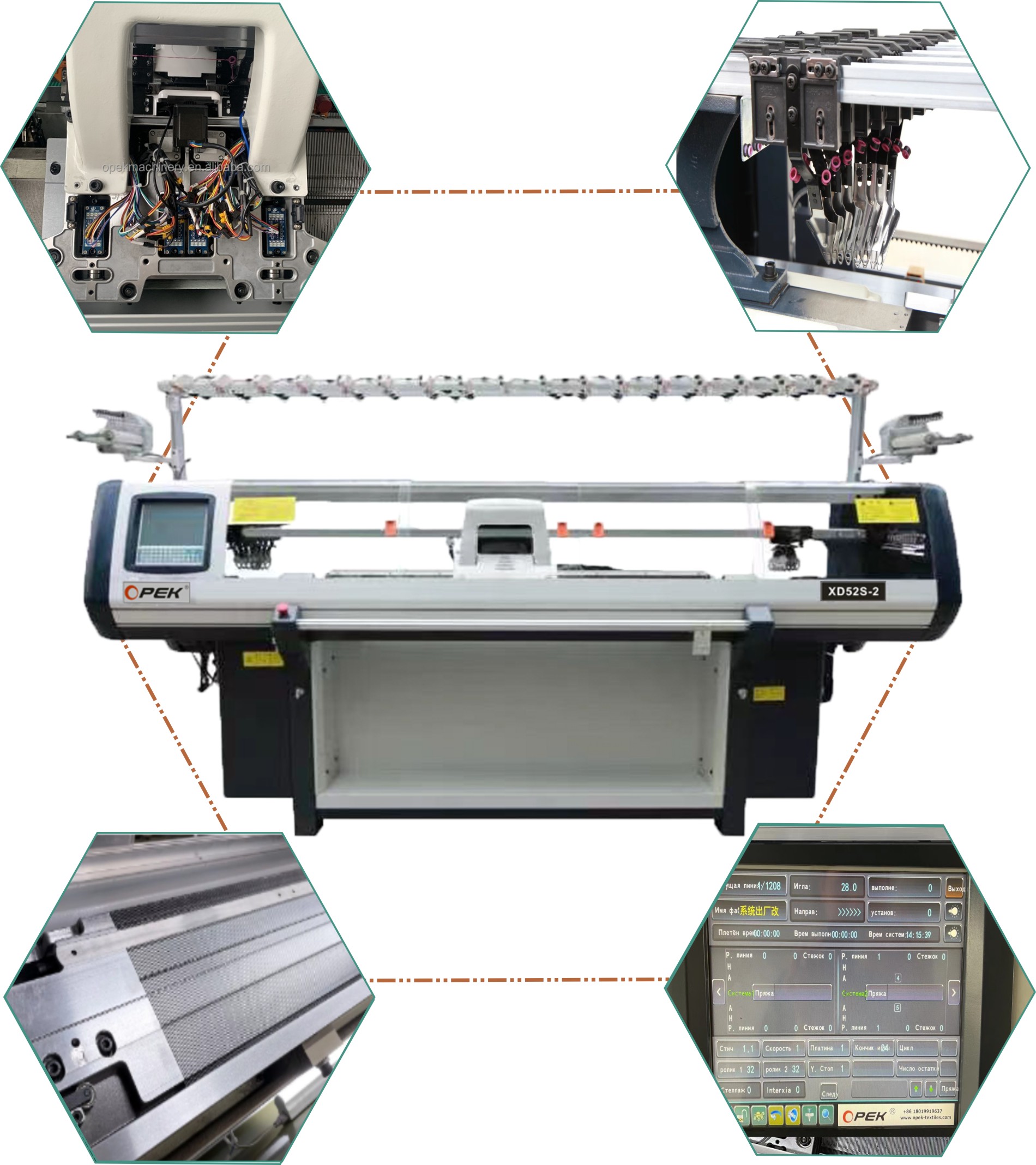

Product Parameters
Knitting system
single carriage with double systems
Machine Speed:
Controlled by servo-motor with 24 section optional ,max speed reach 1.2m/S. varies according to gauge and knitting condition
Knitting Function:
Knit ,miss, tuck ,transfer, pointel, intarsia, jacquard, hide or apparent shaping and other regular or irregular patterns
Stitch density:
Controlled by 32 section electricity, density adjustment driven by stepping motor, range: 0-650
Racking:
AC Servo Motor drive, the maximum racking within 2 inches
Needle actuator:
Replaceable segment needle bed
Roller System:
Main and sub roller devices,32 section automatic control, subsection adjustable
Yarn Carriers:
6 yarn carriers are arranged on the left and right sides of the 3 double side guide rails.
Transmission system:
Belt drive, High precision AC servo motor control.
Data input:
Input and output patterns via USB, PC and Internet
Take down roller
Programmed instruction ,controlled by marching motor ,changeable 24 levels and selectable scope 0-99.
Safety device:
The whole machine cover to reduce noise and dust, the protecting cover is equipped with stopping sensor, emergency
stopping and power off device
Power: Voltage:
AC 220V, Frequency: 50HZ/60HZ, Power:0.8KW
Knitting Samples
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters

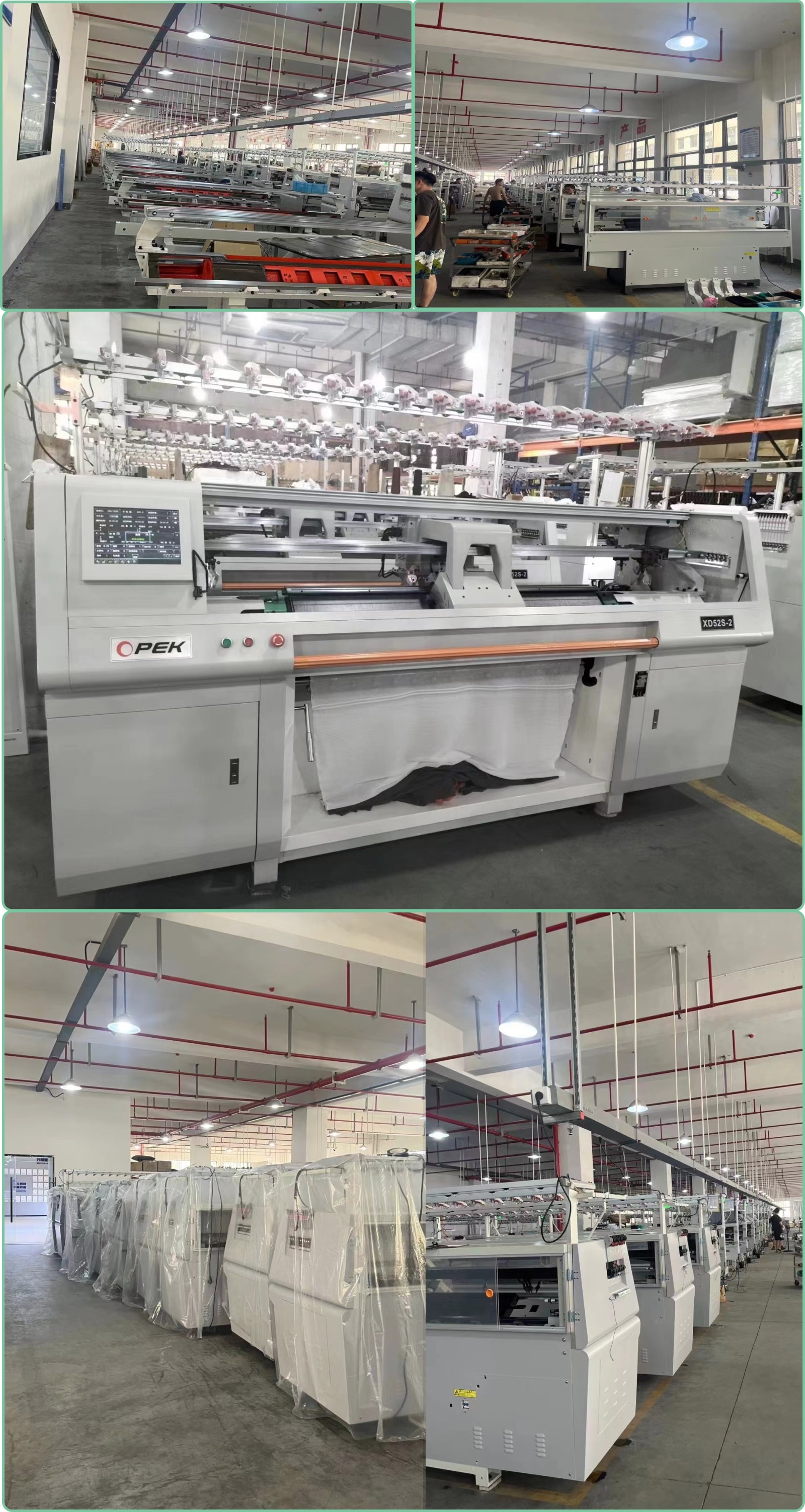

Flat Knitting Machine Workshop
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters
Successful case
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters

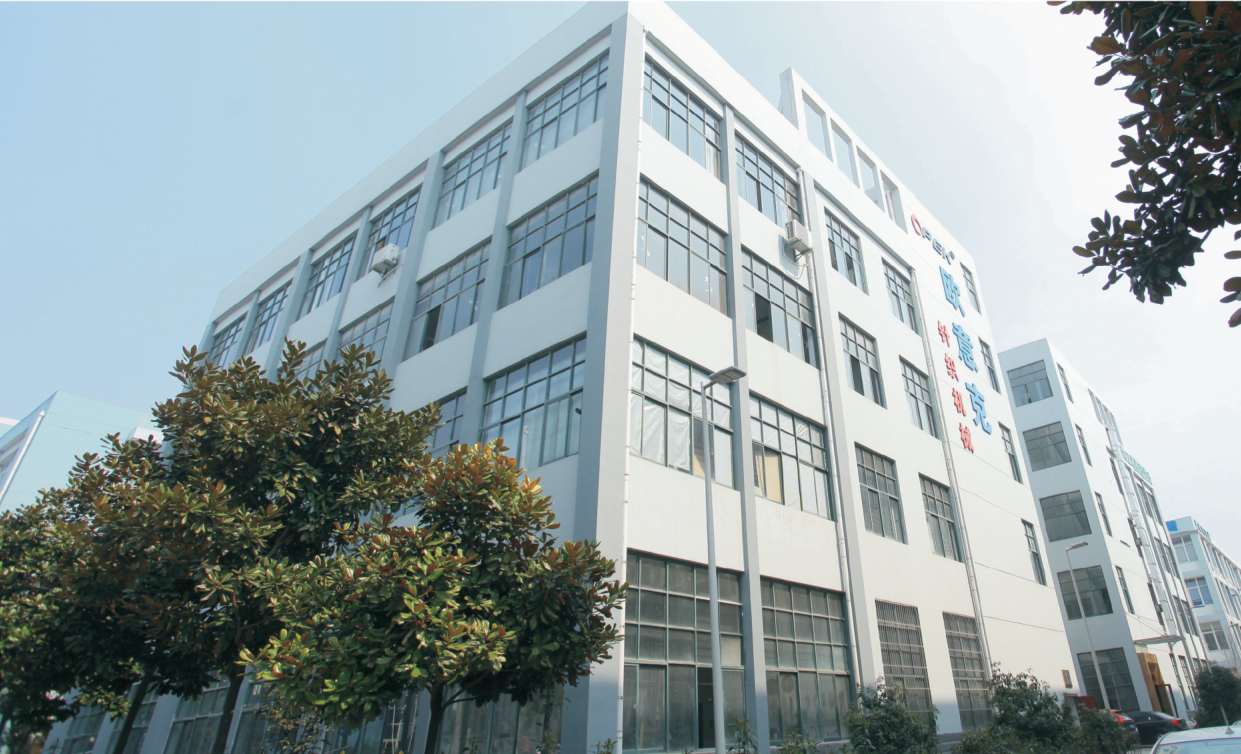

Company Introduction
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters

Hefei OPEK Machinery CO.,Ltd is a goverment approved high-tech enterprise specializing in OPEK" brand circular knitting machine. After many years development, Opek company has profession.al R&D team and experience after-sale service team. Opek machines have obtained CE and ETL certification. Opek high speed automatic jacquard hat &scarf knitting machines, rib hat knitting machines and automatic hat sewing machine have been successfully exported to more than 30 countries around of the world, such as Germany, France, UK, Russia,India, Brazil, USA and etc. Along with continuous development of Opek company, Opek team have strong confidence to have more brilliant future in global and domestic market. Opek company always insist on "Quality First,Customer Foremost, Win-win Cooperation, Common Development" . Driven by innovation and research, Opek will provide you with high quality and high-value-added products continually, as sincerity of OPEK team. Opek sincerely welcome new and regular clients to visit and common development.

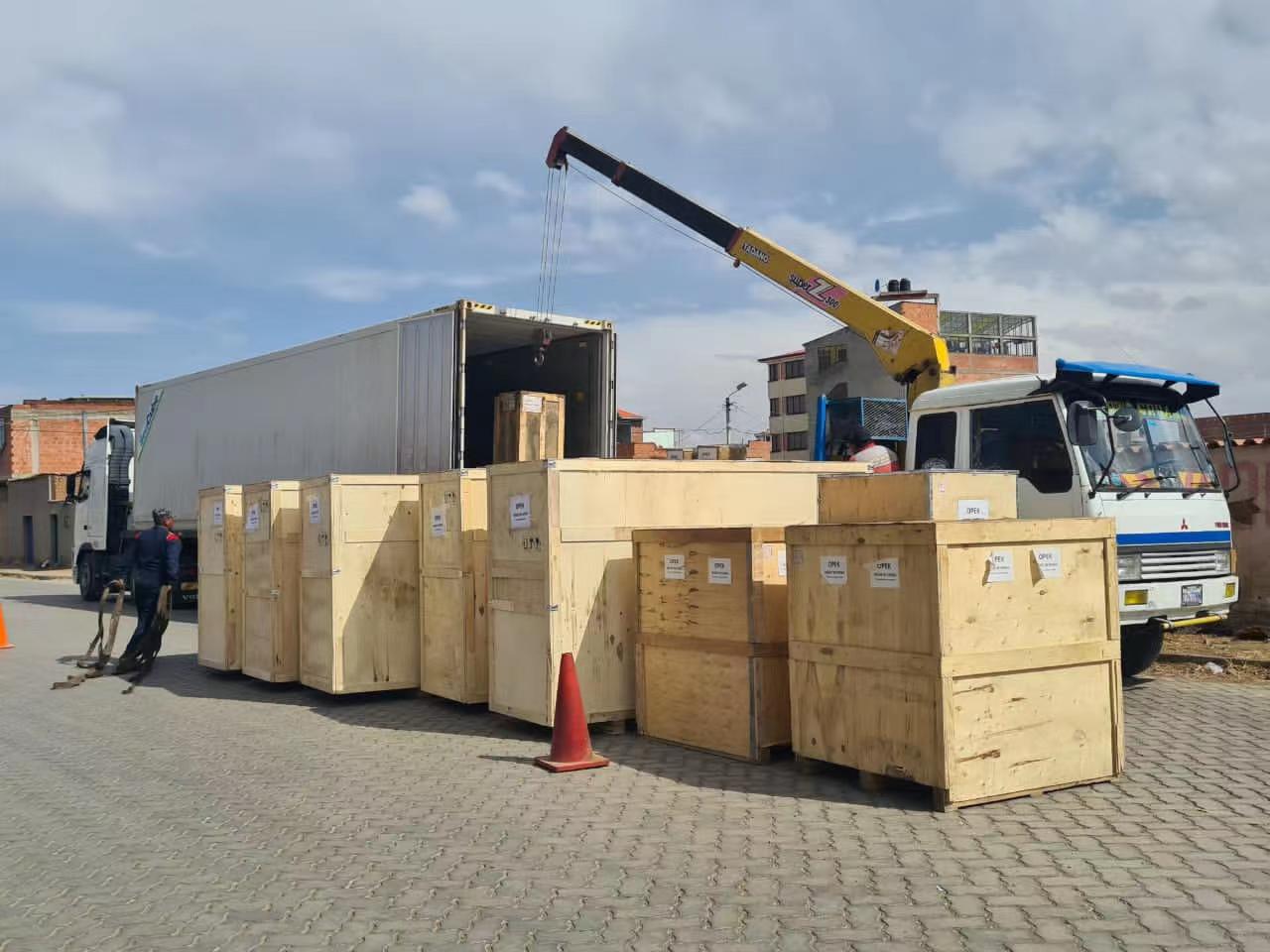

Packing and shipping
