Fashion Flat Double System 52 Inch Computerized Flat Knitting Machine

Specifications

product type :

SWEATER

production capacity :

1.2m/S

Place of Origin :

Anhui, China

Brand Name :

OPEK

power(w) :

1500 W

knitting style :

Warp

Knitting Method :

Double

Computerized :

Yes

dimension(l*w*h) :

2790*2010*940mm

Warranty :

1 Year

Key Selling Points :

High Productivity

gauge :

12 GG, 7 GG, 5 GG, 14 GG

knitting width :

52 Inch(132.08cm)

machinery test report :

Provided

video outgoing-inspection :

Provided

core components :

Motor

Weight (KG) :

1200

Knitting Style :

Flat

Product Name :

semi automatic flat knitting machine

Gauge :

2.5gg,3gg, ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 14gg

Knitting system :

Single carriage with three system system

Multi-gauge :

3-5-7 multi-gauge , 8-10-12 multi-gauge

Application :

Sweater knitting , fabric knitting , hat and scarf knitting

Keywords :

3 system computerized flat knitting machine

Knittind width :

52 inch

Name :

computerised flat knitted machine

System :

Double System Computerized Flat Knitting Machine

MOQ :

1 set

Price :

$7,500-8,200 / set

Description

Product descript

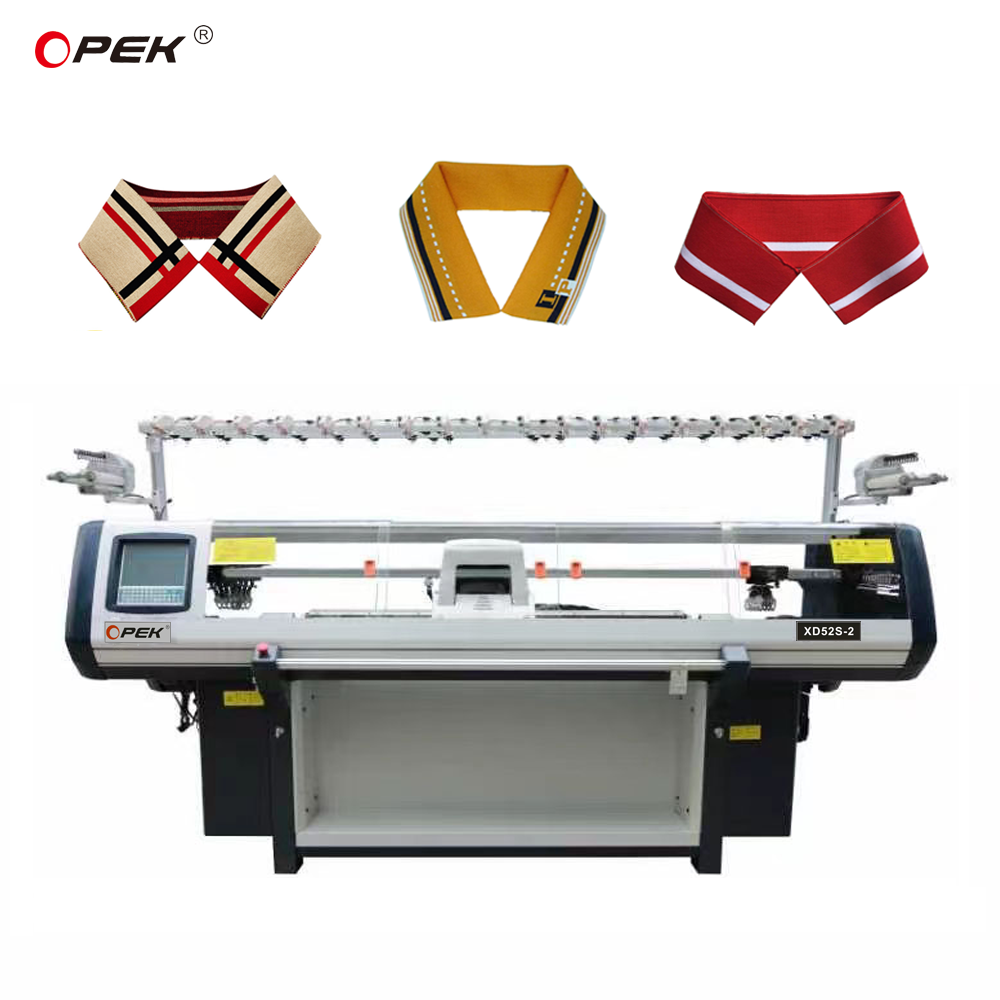

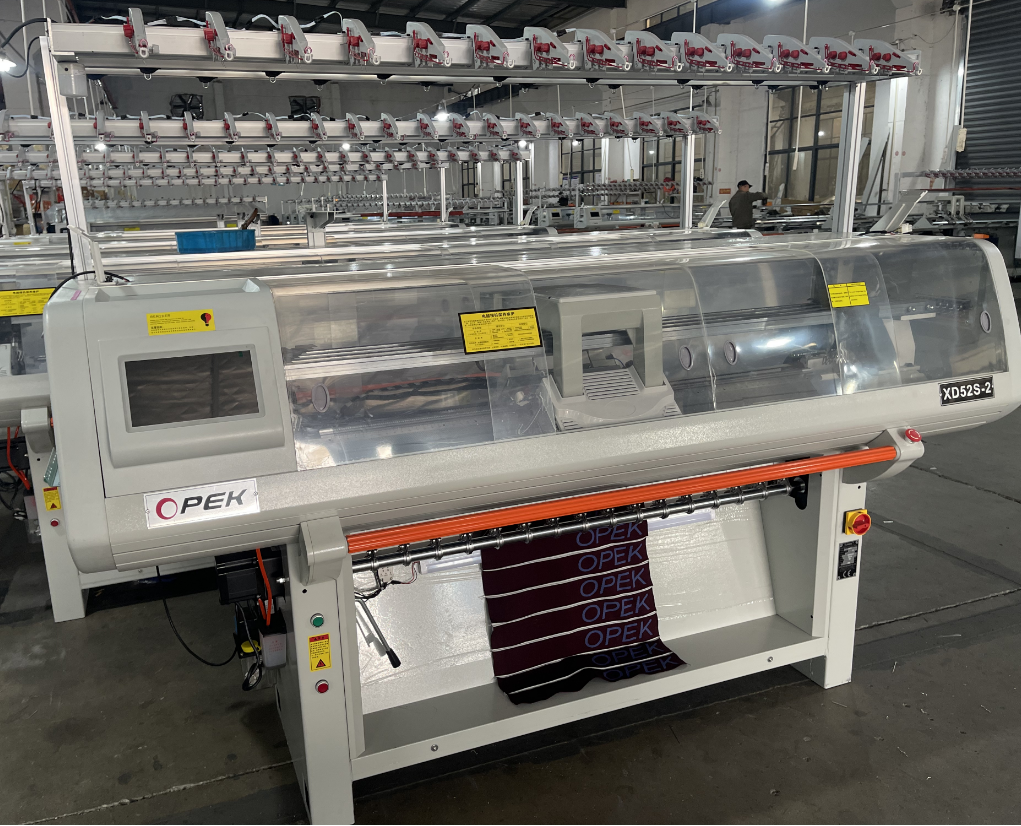

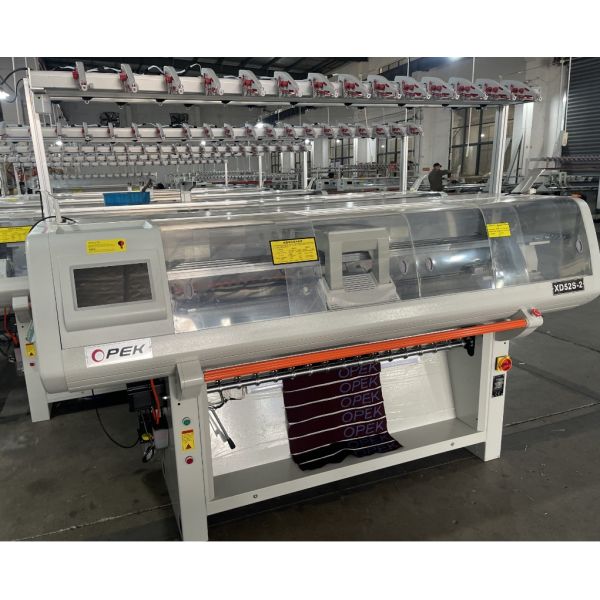

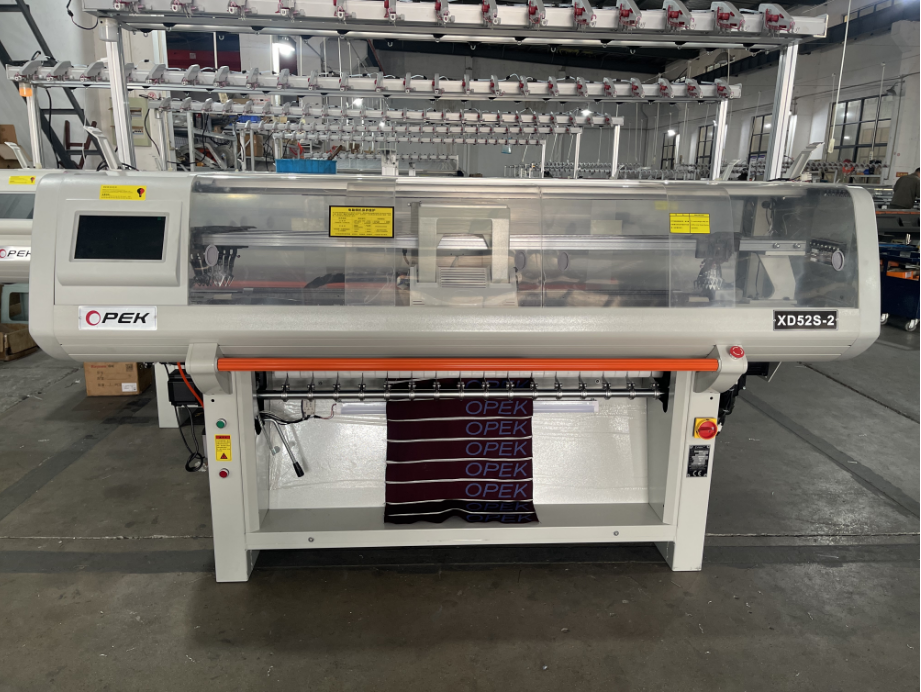

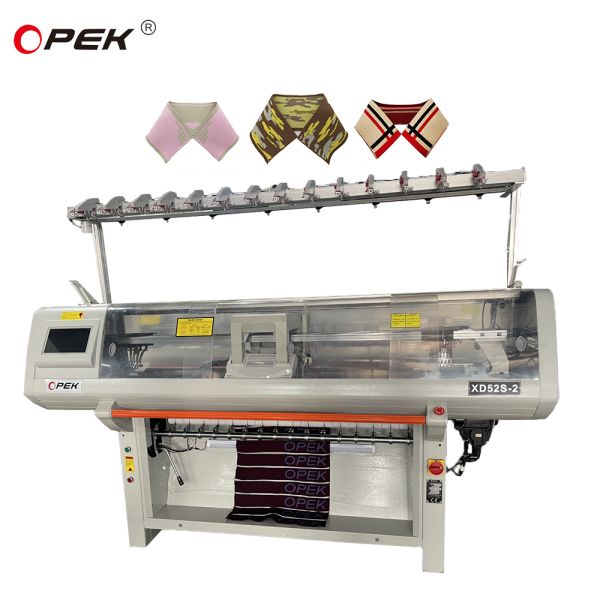

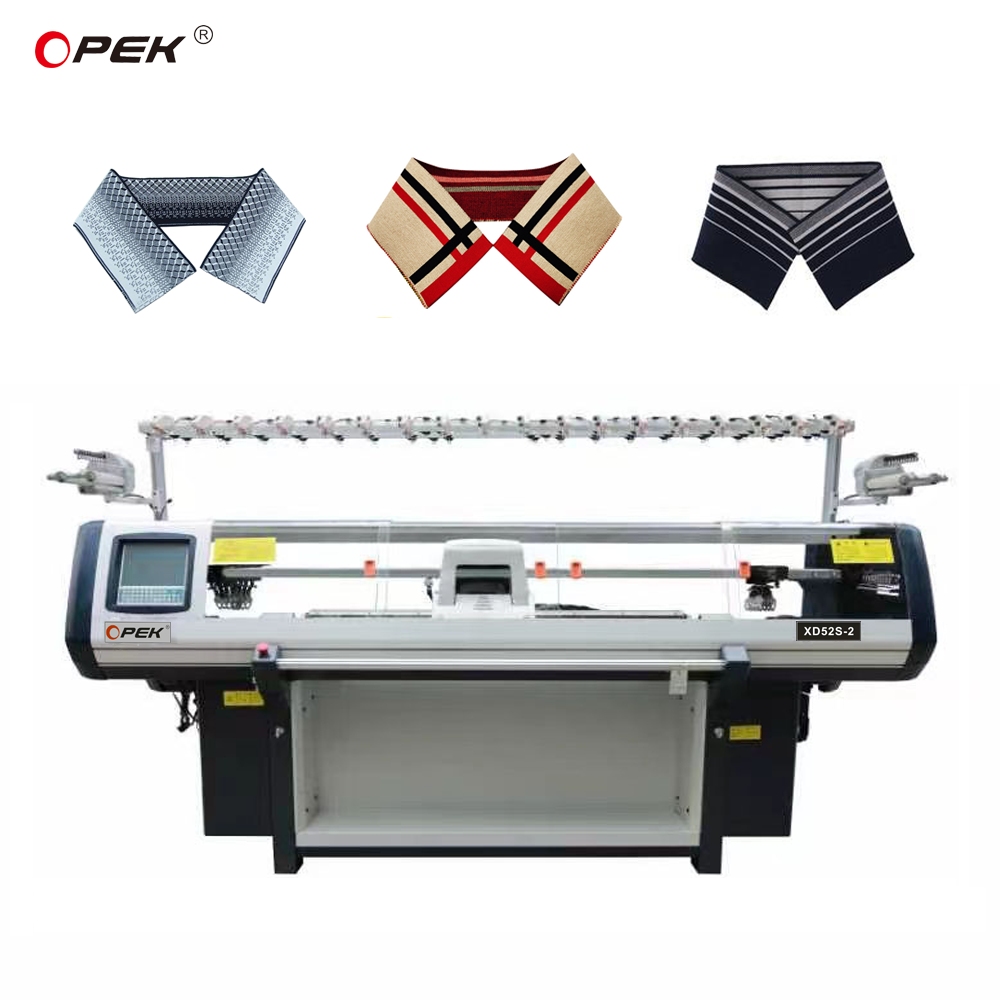

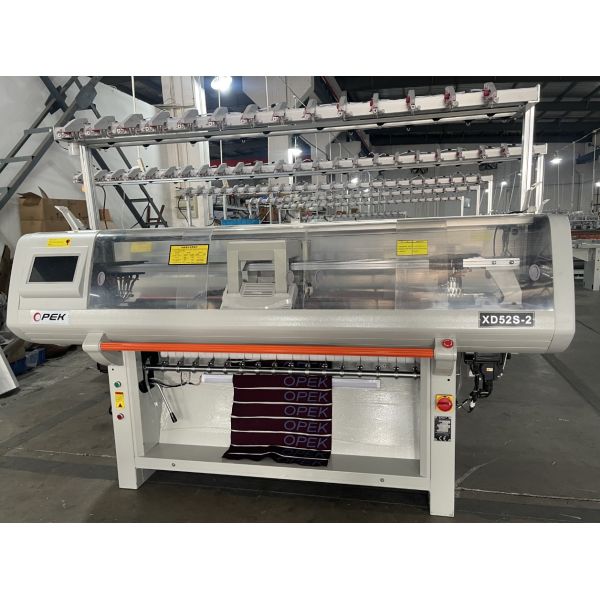

52inch single carriage double system computerized flat collar knitting machine

It adopts digital technology to realize the knitting functions transfer tuck,eyelet stitch,jacquard,apparent shape, hidden shape and other regular pattern knitting functions.

It can knit basic stitch like plain stitch,rib fabric,links and interlock stitch,etc.
Irregular multi-color jacquard,twisted flower weft organization,cord weave,racked stitch,cable,intarsia,etc.
It is suitable to use synthetic,wool,acrylic,mixed fiber,yarn material etc to knit ready-made sweater,collar ,vamp,hat,gloves,scarf and accessories of cloth. So as to achieve multi-functional all-in-one machine
Workshop assembly line after layer upon layer of strict testing to ensure the stable and efficient work of the machine

Mainly specification

Gauge :	12G,14G,16G special for collar /cuff
Knitting width :	52, 60, 80,100 ,120 inch
knitting function:	Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns.
Knitting speed:	Controlled by sevro-motor with 32 sections optional, max speed reach 1.4M/S
Knitting system:	single carriage double system
Take down roller:	Computer programs instruction,stepper motor control and 32-stagetension selection with an adjustable range between 0-100
Transfer:	Combined design, single or double cam system all can transfer together or separately. Also one cam do transfer, another cam system for knitting, which will achieve high production.
Racking:	Controlled by servo motor racking within 2 inches and with fine adjusting function.
Protection:	The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device.
Stitch system:	Controlled by stepping motor, 32 section stitch selectable, adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Needle selection	Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector.
Cutters and Grippers	Include 2 cutters and 4 grippers, controlled by 6 motors respectively(Optional)
Comb device	Grip or knock-over the yam reliably (Optional)
Color-changing sytem：	2×8 yarn feeders at the single side of 4 guide rails, shiftable on any needle position
Sinker system：	Controlled by stepping motor, adjustable to different knitwear, have various results of shaping and patterns.
Network	Has network interface,enable remote-monitoring via network,and connecting with ERP system.
Power:	Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop.
Controller:	1. Screen:Adopt LCD industrial screen and figure interface,input device:USB. Internal storage 32M.The latest system 1G. A great amount of design files can be stored at the same time and they can be fetched out for using at any time as per production requirements.
		2. Monitoring menu,each kind of operating parameter can be shown, and they can be adjusted at any time when the machine is running is visual and easy to understand and upgrade.
		3. Free design is visual and easy to understand and upgrade
		4.Multi language version :there are Chinese .English and Arabic etc. languages version ,the other language version set up shall according to customers requirement .
Volume and weight	Length×width×height: 2600×1100×1800mm Net weight :700kg

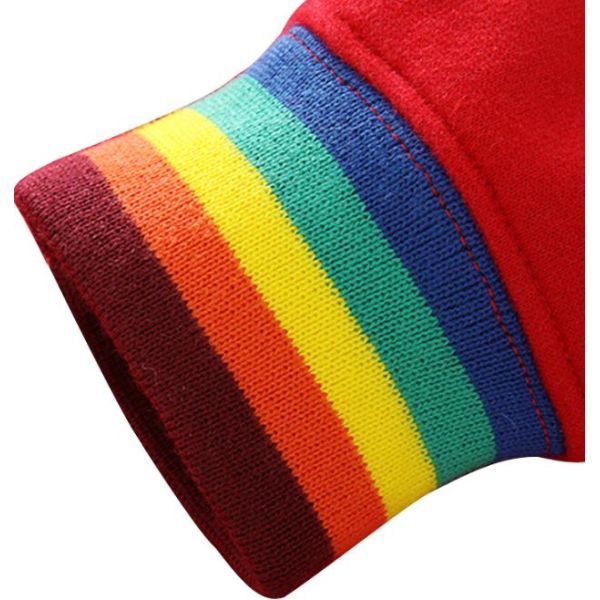

Knitting samples

OPEK Exihibition Showing

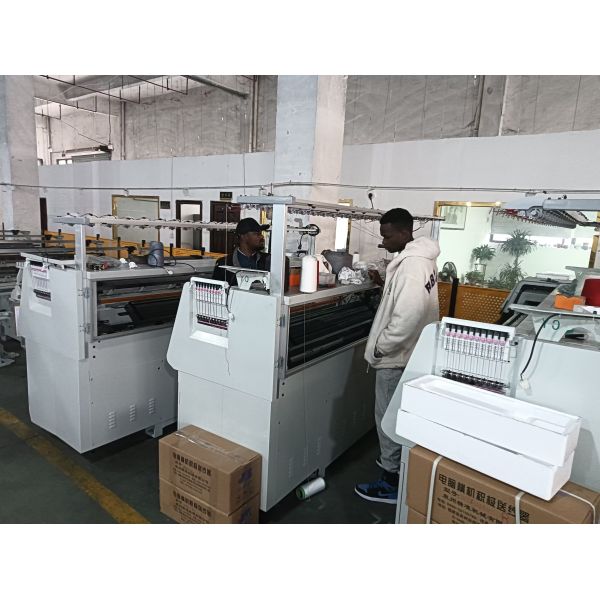

Company Show

After-sale guarantee

You will get free machine operation training & pattern-designing training as soon as you buy our machine now.
Mature and attentive service is Opek Factory hold as the principle of service,machine operation training for free and
pattern-designing training for free to free customers from all the worries.
One year warranty period
The warranty period is one year except for the wearing parts (knitting needle, brush, roller, mouth, seat).
Buy machines in bulk at competitive prices.
Our Hengqiang system also has service points overseas, which can help provide services and provide you with detailed help.

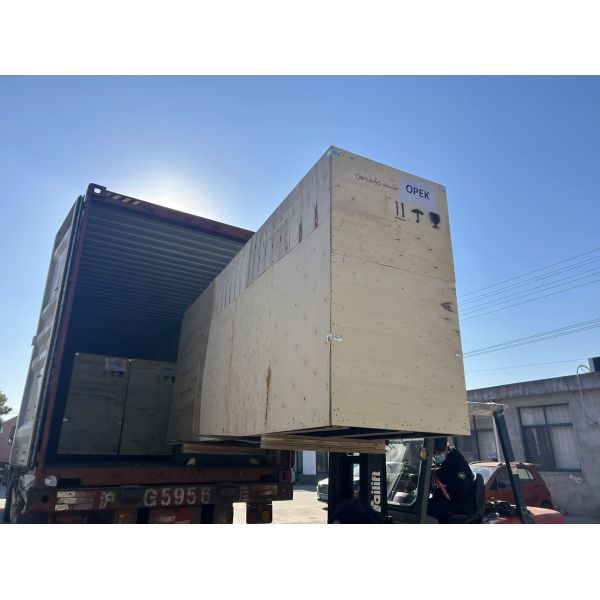

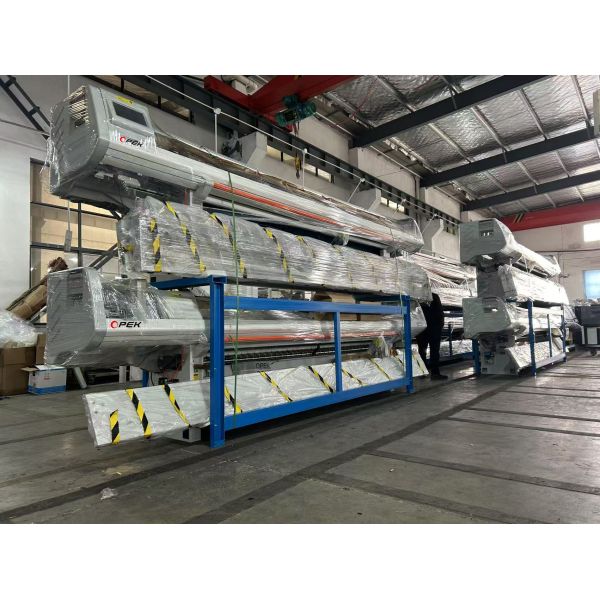

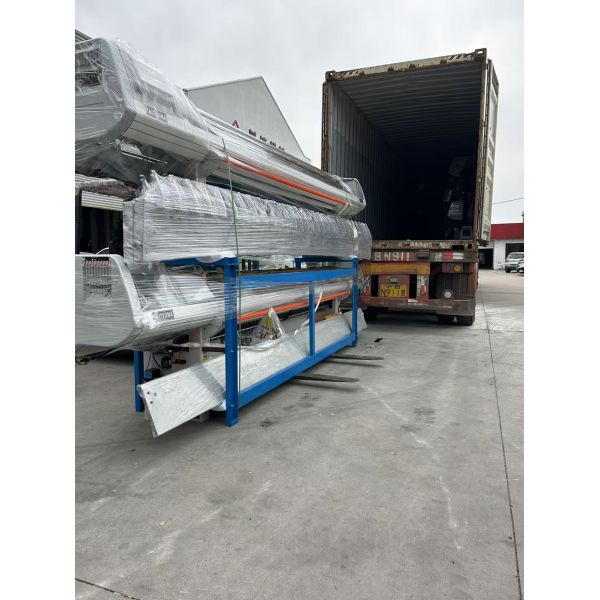

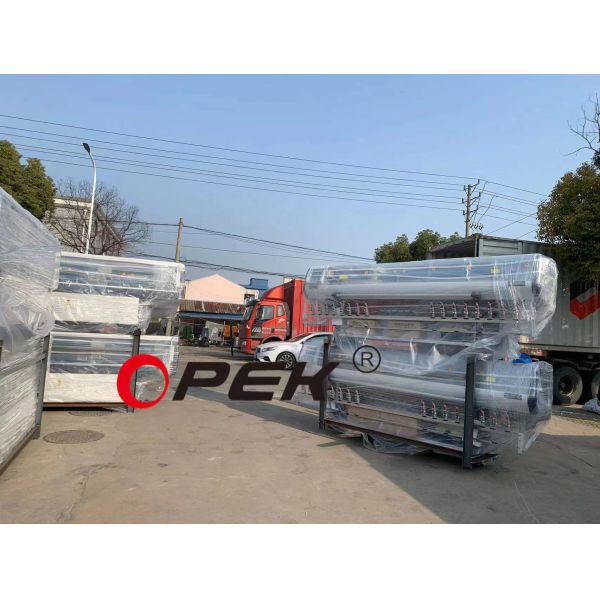

Packing & Delivery

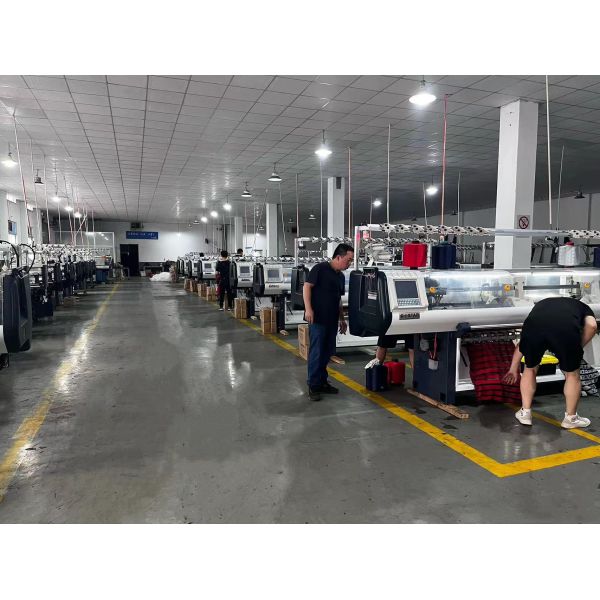

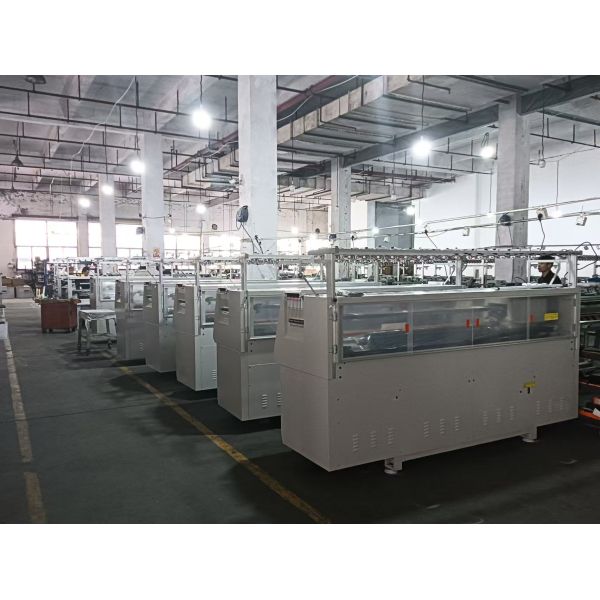

Our Workshop
