Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Specifications
product type :
SWEATER, Collar, shoe upper
production capacity :
1.2m/S
Place of Origin :
Anhui, China
Brand Name :
GSTAR
power(w) :
1.5 W
knitting style :
Warp
Knitting Method :
Three system
Computerized :
Yes
dimension(l*w*h) :
2790*2010*940mm
Warranty :
1 Year
Key Selling Points :
Automatic
gauge :
3-5-7 multi-gauge, 8-10-12 multi-gauge
knitting width :
80 inch(203.20cm)
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
Motor
Weight (KG) :
1100
Knitting Style :
Flat
After-sales Service Provided :
Engineers available to service machinery overseas
Gauge :
2.5gg,3gg, ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 14gg
Knitting system :
double carriage with single system
Multi-gauge :
3-5-7 multi-gauge , 8-10-12 multi-gauge
Application :
Sweater knitting , fabric knitting , hat and scarf knitting
Keywords :
single system computerized flat knitting machine
Machine Type :
High Speed Fully Computerized Jacquard Knitting Machine
Voltage :
220V/50HZ
Brand :
Opek
MOQ :
1 set
Price :
$7,500-8,600 / set
Description
Product Description

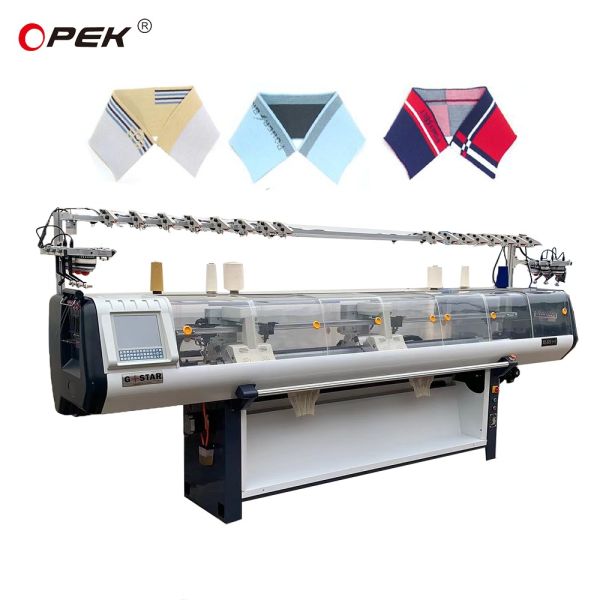

OPEK Automatic Flat Collar Knitting Machine
OPEK fully jacquard computerized flat knitting machine with single carriage double system. This series is economic type. It applies digital technology to achieve transfer, tuck, eyelet stitch, jacquard, apparent shape, hidden shape and other regular pattern knitting functions. It can knit basic stitch like plain stitch, rib fabric, links and links, interlock stitch, etc.
Irregular multicolor jacquard, twit flowers weft organization, cord weave, racked stitch, cable, etc. It is suitable to use synthetic , wool, acrylic, mixed fiber, yarn material etc to knit sweaters, scarves, hats, clothing accessories.
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm

COLLAR AND CUFF KNITTING MACHINE

1.Adopt main and sub roller to make the collar with good density and shape
2..Positive yarn storage could reduce resistance while the yarn in moving is suitable for fabric
with lack of elasticity and brittleness such as some yarn improve the efficiency of weaving
3 .Use 12 yarn feeders, which are special for collar Machine
4. Use an ultra-small editing head, which can increase the knitting speed by 5% and the knitting output by 10%
5.Use Grooved needle bed Sk5 materiel Needle bed,Best hardnees and more longer Use life
Slotting in the finishing center, high precision , tight needle
Unique pre-grinding process, 8 hours of magic washing before use
6.LCD touch screen Humanized design control interface large memory capacity, can store about 1000 patterns, for tens of thousands of
lines of complex patterns can also be read quickly without waiting. Stable performance make the operation more convenient, easy to learn
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Product descript

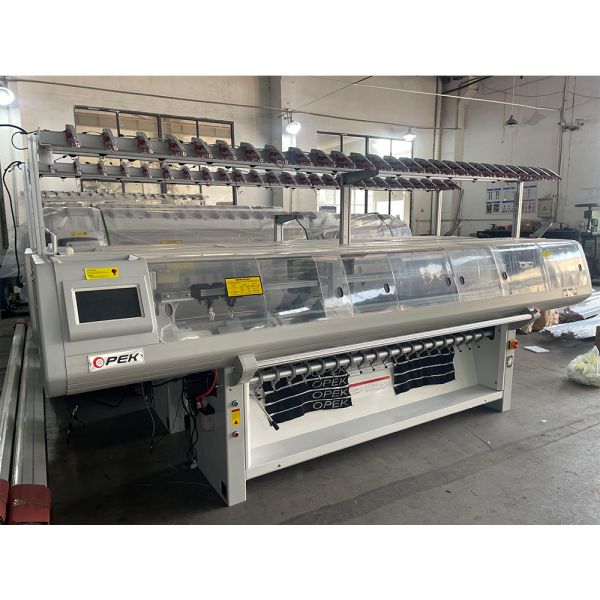

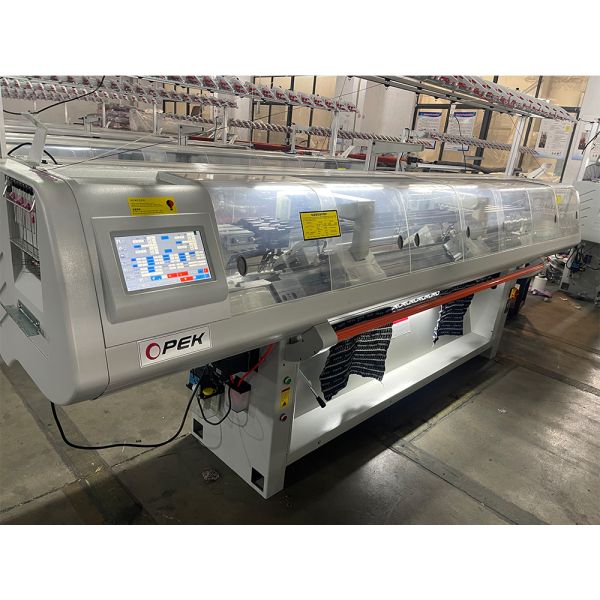

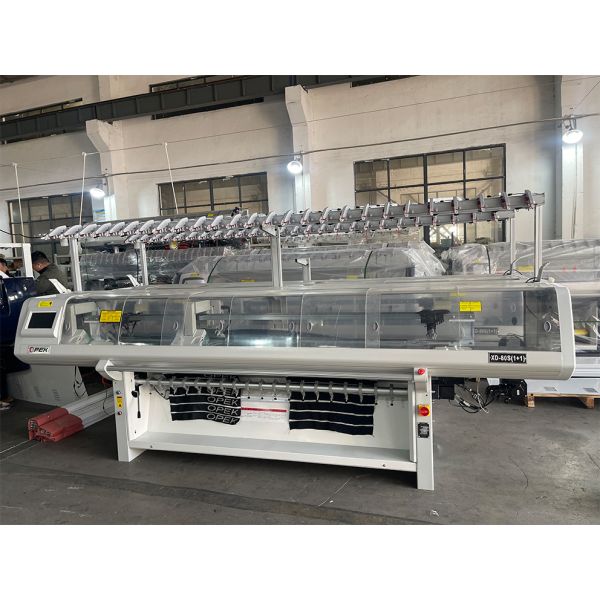

80inch double carriage single system computerized flat collar knitting machine

It adopts digital technology to realize the knitting functions transfer tuck,eyelet stitch,jacquard,apparent shape, hidden shape and other regular pattern knitting functions.

It can knit basic stitch like plain stitch,rib fabric,links and interlock stitch,etc.
Irregular multi-color jacquard,twisted flower weft organization,cord weave,racked stitch,cable,intarsia,etc.
It is suitable to use synthetic,wool,acrylic,mixed fiber,yarn material etc to knit ready-made sweater,collar ,vamp,hat,gloves,scarf and accessories of cloth. So as to achieve multi-functional all-in-one machine
Workshop assembly line after layer upon layer of strict testing to ensure the stable and efficient work of the machine

Mainly specification
Gauge :
12G,14G,16G special for collar /cuff
Knitting width :
52, 60, 80,100 ,120 inch
knitting function:
Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns.
Knitting speed:
Controlled by sevro-motor with 32 sections optional, max speed reach 1.4M/S
Knitting system:
double carriage(1+1) single system
Take down roller:
Computer programs instruction,step motor control and 32-stagetension selection with an adjustable range between 0-100
Transfer:
Combined design, single or double cam system all can transfer together or separately. Also one cam do transfer, another cam system
for knitting, which will achieve high production.
Racking:
Controlled by servo motor racking within 2 inches and with fine adjusting function.
Protection:
The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle
breakage, error programming occur, also set up the safety auto-lock protect device.
Stitch system:
Controlled by stepping motor, 32 section stitch selectable, adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Needle selection
Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width
jacquard needle selector.
Cutters and Grippers
Include 2 cutters and 4 grippers, controlled by 6 motors respectively(Optional)
Comb device
Grip or knock-over the yam reliably (Optional)
Color-changing sytem：
2×8 yarn feeders at the single side of 4 guide rails, shiftable on any needle position
Sinker system：
Controlled by stepping motor, adjustable to different knitwear, have various results of shaping and patterns.
Network
Has network interface,enable remote-monitoring via network,and connecting with ERP system.
Power:
Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop.




Controller:
1. Screen:Adopt LCD industrial screen and figure interface,input device:USB. Internal storage 32M.The latest system 1G. A great amount of design files can be stored at the same time and they can be fetched out for using at any time as per production requirements.
2. Monitoring menu,each kind of operating parameter can be shown, and they can be adjusted at any time when the machine is running is visual and easy to understand and upgrade.
3. Free design is visual and easy to understand and upgrade
4.Multi language version :there are Chinese .English and Arabic etc. languages version ,the other language version set up shall according to customers requirement .
Volume and weight
Length×width×height: 3000×1100×1800mm Net weight :1600kg
Knitting samples
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm

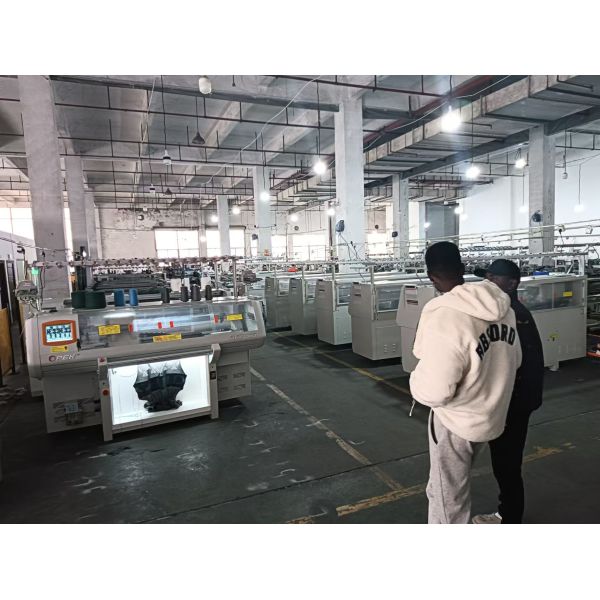

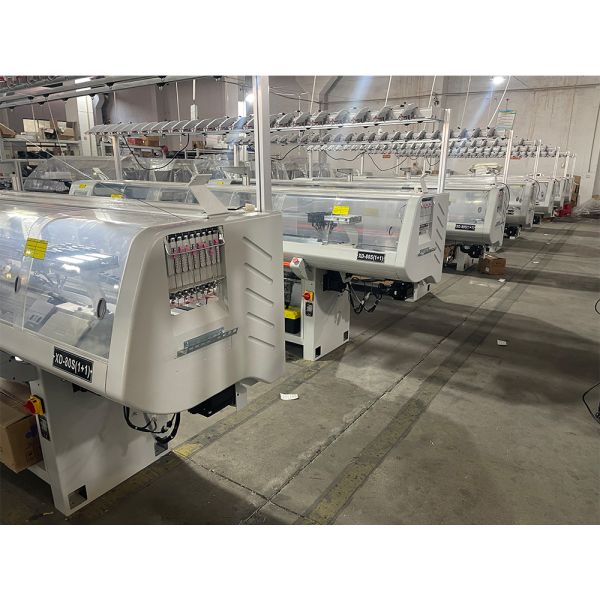

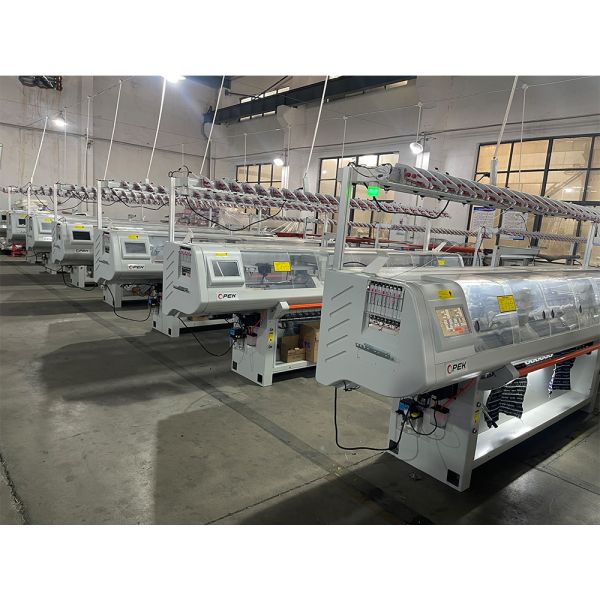

Company Show
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
After-sale guarantee
You will get free machine operation training & pattern-designing training as soon as you buy our machine now.
Mature and attentive service is Opek Factory hold as the principle of service,machine operation training for free and
pattern-designing training for free to free customers from all the worries.
One year warranty period
The warranty period is one year except for the wearing parts (knitting needle, brush, roller, mouth, seat).
Buy machines in bulk at competitive prices.
Our Hengqiang system also has service points overseas, which can help provide services and provide you with detailed help.

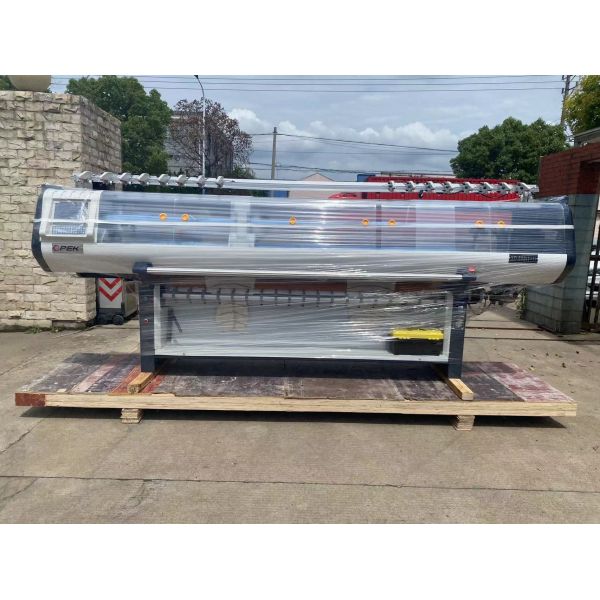

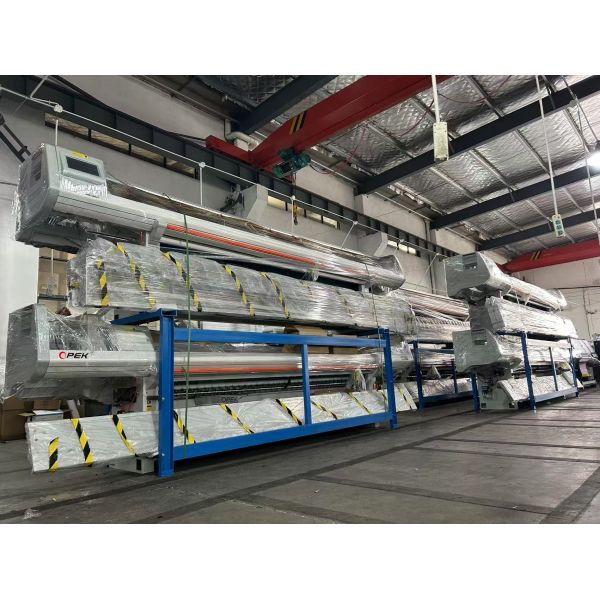

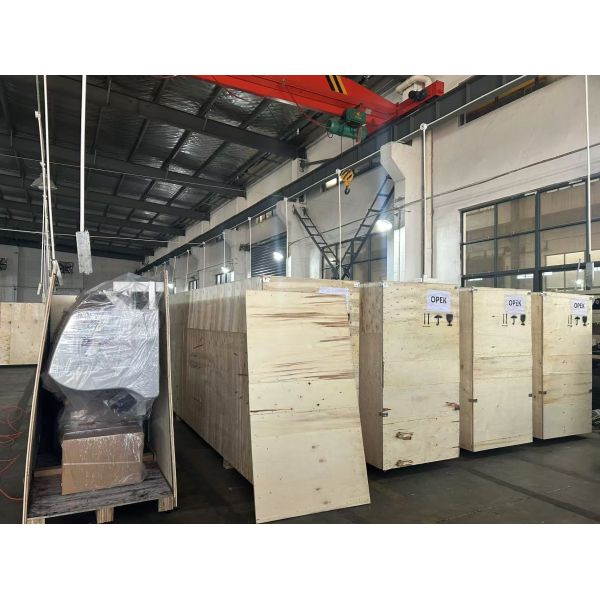

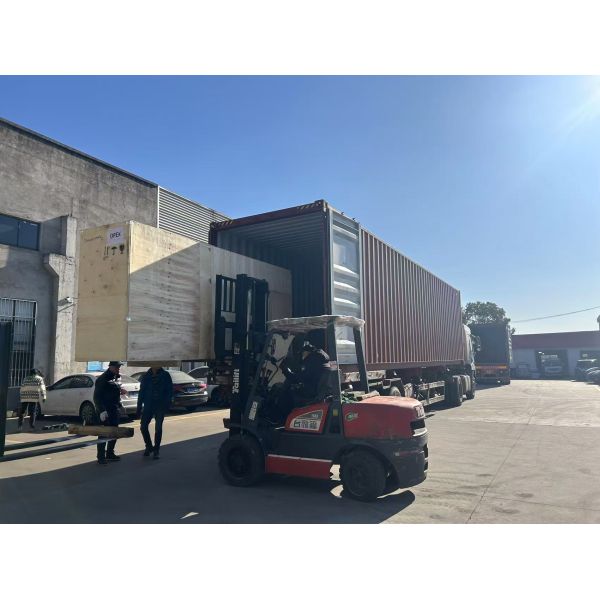

Packing & Delivery
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
Single system flat collar knitting machine with automatically alarm
