Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
G STAR
MOQ :
1 set
product type :
Collar
production capacity :
1.2m/S(3.94ft/s)
power(w) :
1.5 W(0hp)
Knitting Method :
Single
Computerized :
Yes
dimension(l*w*h) :
2790*2010*940mm(109.84*79.13*37.01in)
Warranty :
1 Year
Key Selling Points :
High Productivity
gauge :
12 GG, 14 GG, 16 GG, 9 GG, 10GG, 3-5-7 multi-gauge
knitting width :
80 inch
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
Bearing, Pump, Engine
After-sales Service Provided :
Engineers available to service machinery overseas
Product Name :
3 system computerized flat knitting machine
Gauge :
2.5gg,3gg, ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 14gg
Knitting system :
Single carriage with three system system
Multi-gauge :
3-5-7 multi-gauge , 8-10-12 multi-gauge
Application :
collar knitting , fabric knitting , hat and scarf knitting
Keywords :
2 system computerized flat knitting machine
Applicable Industries :
Garment Shops, Manufacturing Plant, Farms, Retail, Advertising Company
Condition :
New
Type :
Jacquard
Marketing Type :
Hot Product 2019
Warranty of core components :
2 Years
Weight :
900 KG(1984.16lb)
Description
Product descript

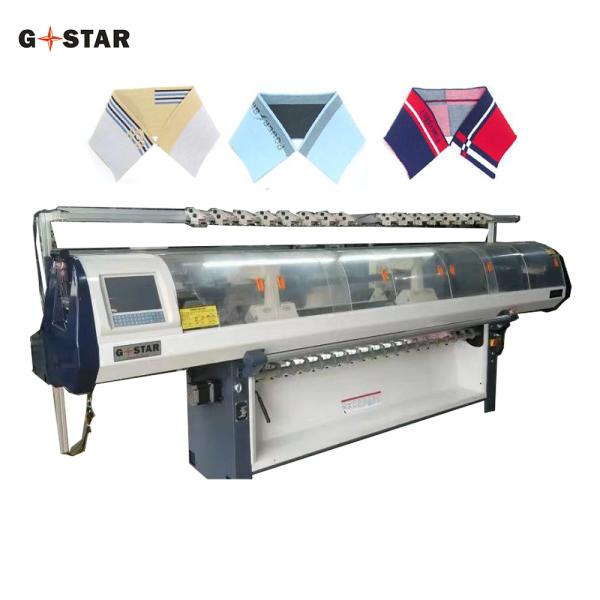

Professional Computerized Collar Flat Knitting Machine


Fully Jacquard Knitting Machine to Make Collars and Cuffs


Computerized Collar Flat Knitting Machine
1:High speed &high output
2:CE and ISO 9001:2008 certificate.
3:Easy operation,knitting system:Single carrier
4.Max speed:1.2m/s.

Main Characteristic

Single Carriage with three system , this S-Series computerized flat knitting machine are used digital technology to achieve the patterns of knit ,transfer , tuck , pointel , intarsia , jacquard ,apparent shape, hidden shape , and other regular or irregular patterns knitting functions , can knit basic single or double jersey plain fabric , irregular multi-color jacquard , intarsia , cable and pointel structure patterns , which suitable to knit by yarns of pure silk ,mixed silk , synthetic , wool ,acrylic ,mixed fiber material etc. knitted for shaping fabric and accessories of collar , cardigan ,rib, cuff, scarf ,pocket and trousers etc.


Mainly specification
Gauge :
2.5gg,3gg, 3-5-7 multi-guague ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg,
8-10-12 multi-gauge ,14gg,16gg ,18gg
Knitting bed width :
52 /56 /60/72/80 inch
knitting function:
Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns.
Knitting speed:
Controlled by servo motor, 24 sections speed optional, max 1.2M/S.varies according to gauge and knitting condition
Knitting system:
Single carriage with three system
Needle bed:
Replaceable segment needle bed ,flat needle bed
Take down roller:
Programmed instruction,controlled by marching motor, changeable 24 levels and selectable scope: 0-99.
Transfer:
Combined cam box single or double system can work independently and one system can transfer the stitch While the other system keeps knitting.
Racking:
Controlled by servo motor racking within 2 inches and with fine adjusting function.
Protection:
The machine will automatically alarm if yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur.
Stitch system:
Controlled by stepping motor, 24 section stitch selectable, adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Encoder:
Advanced encoder adopted.
Yam carrier:
2×8 Yarn carriers on each side of 4 guide rails, shiftable on any needle position(special instarsia carriers available).
Sinker system
Controlled by stepping motor, adjustable to different knitwear, have various results of shaping and patterns.
Power:
Singe-phase 220V, adopts advanced CMOS technology, having memorizing function at power shock stop.
Controller:
1. Screen:Adopt LCD industrial screen and figure interface,input device:USB. Internal storage 32M.The latest system 1G. A great amount of design files can be stored at the same time and they can be fetched out for using at any time as per production requirements.
2. Monitoring menu,each kind of operating parameter can be shown, and they can be adjusted at any time when the machine is running is visual and easy to understand and upgrade.
3. Free design is visual and easy to understand and upgrade
4.Multi language version :there are Chinese .English and Arabic etc. languages version ,the other language version set up shall according to customers requirement .
Volume and weight
Length×width×height: 2790×1100×1500mm Net weight :1280kg

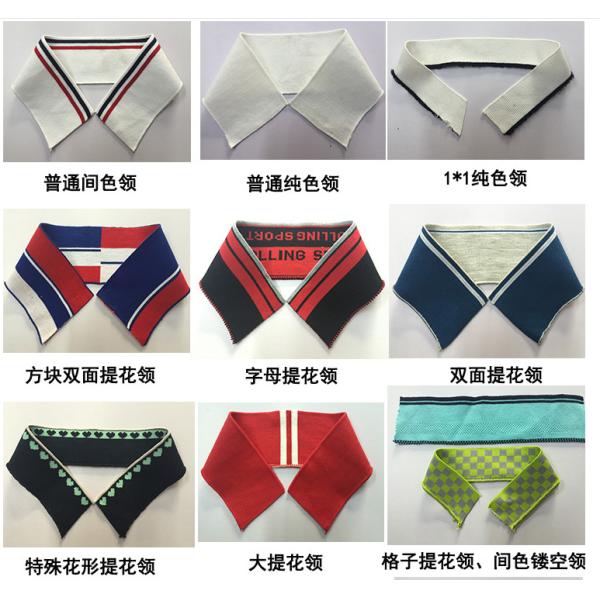

Knitting samples
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs

Shinestar flat knitting machine suit for

sweater knitting , caps knitting , scarf knitting , collar knitting ,shoe upper knitting .


Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Our Workshop
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Packing & Delivery
Fully Jacquard Knitting Machine to Make Collars and Cuffs
Fully Jacquard Knitting Machine to Make Collars and Cuffs
