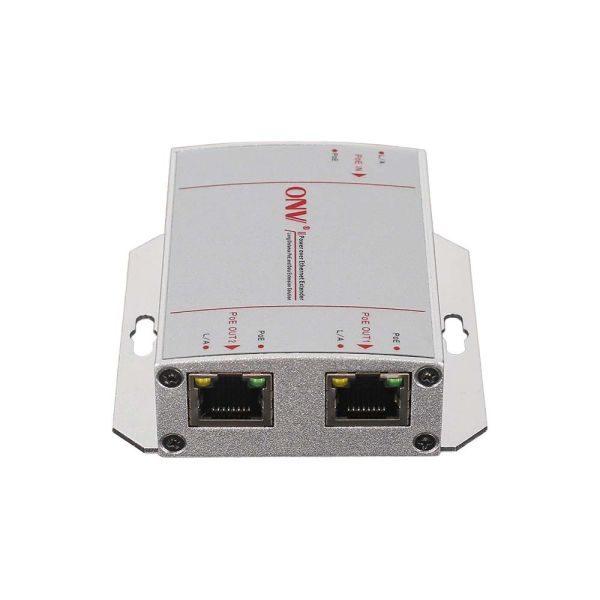

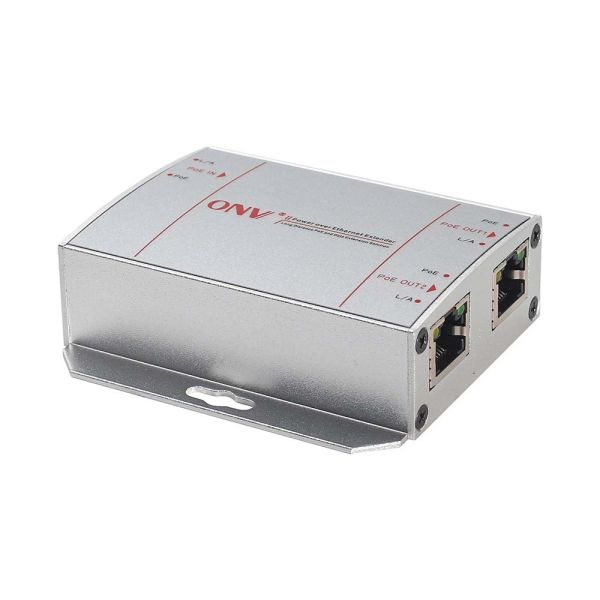

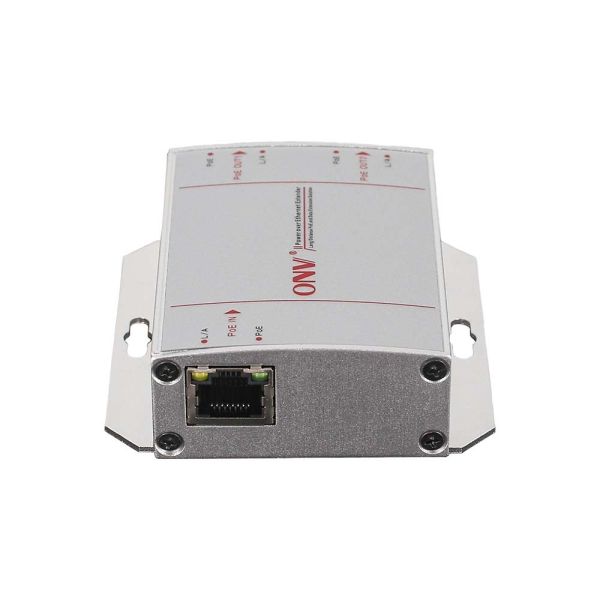

3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
Specifications
Payment Terms :
T/T,Western Union
Model Number :
ONV-PSE-PD3102
Ethernet Port :
Port 1-3 support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Buffer Memory :
98K
MAC :
1K
Max Power Per Port :
30W
Supply Ability :
500000 pcs/month
Certification :
CE, FCC, RoHS
Twisted Pair Transmission :
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters)
Packaging Details :
Packaging dimensions: 120*88*52mm, weight: 0.3kg, Carton dimensions: 480*430*352mm, 100 pcs/carton, weight: 31kg
Forwarding Rate :
0.45Mpps
Total Power :
24W
Power Consumption :
Standby<1W, full load<24W
MOQ :
1
Brand Name :
ONV
Fixed Port :
2*10/100Base-TX PoE ports (Data/Power) 1*10/100Base-TX uplink power receiving port (Data/Power)
Delivery Time :
2-8 work days
Place of Origin :
China
Switching Capacity :
1.6Gbps(non-blocking)
Description
3-port 10/100M PoE Extender
Overview

The ONV-PSE-PD3102 is a 10/100M PoE Extender featuring 2×10/100M PoE ports and 1×10/100M uplink RJ45 port. Ports 1-2 support IEEE 802.3af/at PoE standard with single-port PoE power output up to 30W. The uplink port serves as the power receiving port and requires input power greater than 24W to meet PoE power supply requirements for ports 1-2. This device automatically detects and identifies compliant powered devices, supplying power via Ethernet cable to PoE terminal devices including wireless APs, network cameras, VoIP phones, and video intercoms. Ideal for network environments requiring high-density PoE power supply, it provides lossless bandwidth for twisted-pair PoE transmission applications within a 200-meter range. Suitable for hotels, campuses, industrial parks, scenic areas, factory dormitories, and small-to-medium enterprises. Plug-and-play operation requires no configuration.

Technical Specifications
Model ONV-PSE-PD3102
Interface Characteristics
Fixed Port 2×10/100Base-TX PoE ports (Data/Power)
1×10/100Base-TX uplink power receiving port (Data/Power)
Ethernet Port Port 1-3 support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
Chip Parameter
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 1.6Gbps (non-blocking)
Forwarding Rate@64byte 0.45Mpps
MAC 1K
Buffer Memory 98K
LED Indicator Power: PWR (Green), POE: PoE (Green)
PoE & Power Supply
PoE Port Port 1-2
Power Supply Pin 1/2,4/5(+),3/6,7/8(-)
Max Power Per Port 30W
Total Power 24W
Power Consumption Standby <1W, full load <24W
Physical Parameter
Operation TEMP/Humidity -20°C~+55°C, 5%~90% RH non-condensing
Storage TEMP/Humidity -40°C~+80°C, 5%~95% RH non-condensing
Dimension (L×W×H) 80×76.5×27mm
Net /Gross Weight 0.2kg /0.3kg
Installation Desktop, wall-mounted
Certification & Warranty
Lightning Protection 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 3 years, lifelong maintenance
Key Features
  • 10/100M Access: Non-blocking wire-speed forwarding, full-duplex based on IEEE802.3x and half-duplex based on Backpressure. 3×10/100Base-TX RJ45 ports meet power supply and transmission requirements within 200 meters.
  • Intelligent PoE Power Supply: 2×10/100Base-TX RJ45 ports support PoE power supply for various security scenarios. Complies with IEEE 802.3af/at PoE standard, automatically identifies PoE devices without damaging non-PoE devices. Maximum PoE output power is 24W with single-port maximum of 30W.
  • Innovative Function: 24W power supply via repeater port, simultaneous use of 8 cores effectively reduces line loss and ensures PoE output power meets usage requirements. No external power supply required for PoE extender operation.
  • Stable and Reliable: CE, FCC, RoHS certified. Low power consumption, fanless quiet design, metal shell for excellent heat dissipation. Solves network cable transmission within 200 meters without external power supply.

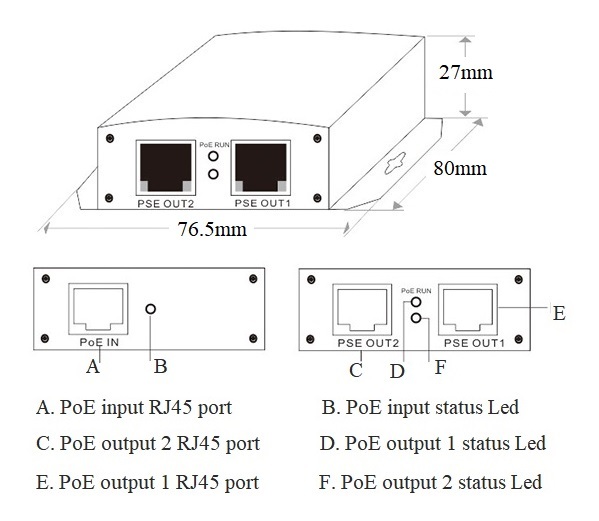

Dimensions
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation

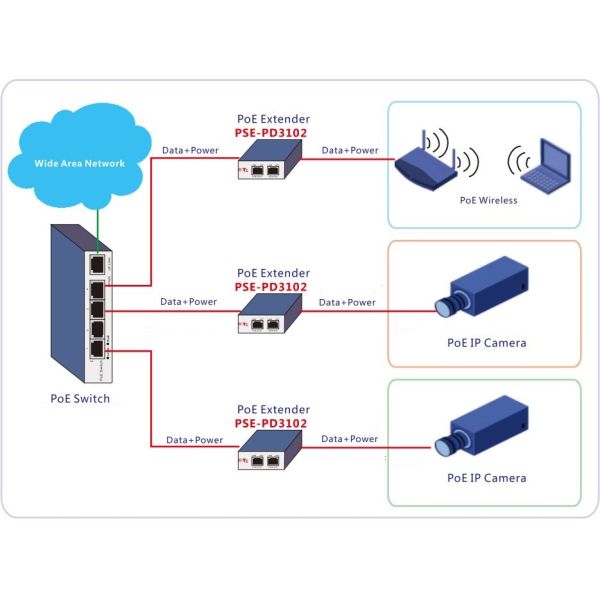

Application
3 Port 10/100M Poe Extender Repeater 30W 200 Meter Range Fanless Operation
Ordering Information
Model Description
ONV-PSE-PD3102 PoE extender with 2×10/100M RJ45 ports and 1×10/100M uplink RJ45 port. Port 1-2 support IEEE802.3af/at PoE standard, and the uplink port supports 24W PoE input.
Packing List
Packing List Qty Unit
3-port 10/100M PoE extender 1 Set
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Related Products
Model Description
ONV-PSE-PD3302 PoE extender with 2×10/100/1000M PoE ports and 1×10/100/1000M uplink PD RJ45 port. Port 1-2 support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Metal shell)
ONV-PSE-PD3121L PoE extender with 2×10/100M PoE ports and 1×10/100M uplink PD RJ45 port. Port 1-2 support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Plastic shell)
ONV-PSE-PD3321 PoE extender with 2×10/100/1000M PoE ports and 1×10/100/1000M uplink PD RJ45 port. Port 1-2 support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Plastic shell)
ONV-PSE-PD3304 PoE extender with 4×10/100/1000M PoE ports and 1×10/100M uplink PD RJ45 port. Port 1-4 support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Plastic shell)
