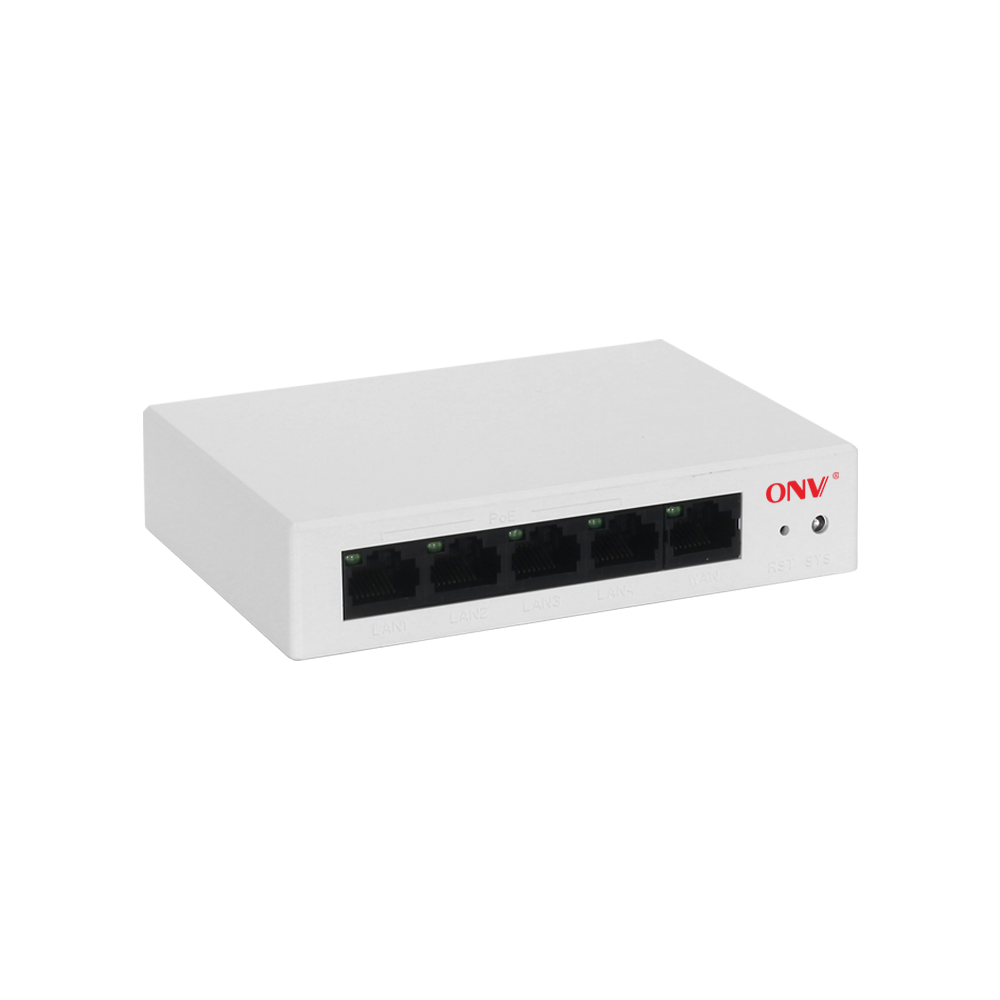

5 Port Gigabit AC Gateway wireless authentication gateway With Dual Core 880MHz CPU
5 Port Gigabit AC Gateway wireless authentication gateway With Dual Core 880MHz CPU
5 Port Gigabit AC Gateway wireless authentication gateway With Dual Core 880MHz CPU
5 Port Gigabit AC Gateway wireless authentication gateway With Dual Core 880MHz CPU
5 Port Gigabit AC Gateway wireless authentication gateway With Dual Core 880MHz CPU
5 Port Gigabit AC Gateway wireless authentication gateway With Dual Core 880MHz CPU
5 Port Gigabit AC Gateway wireless authentication gateway With Dual Core 880MHz CPU
5 Port Gigabit AC Gateway wireless authentication gateway With Dual Core 880MHz CPU
Specifications
CPU :
MTK MT7621 Dual-core 880MHz
MOQ :
1
Payment Terms :
T/T,Western Union
Delivery Time :
3-10 work days
PoE Output :
30W per port
Max Users :
128
Operating Power :
<65W
Flash Memory :
16MB
Supply Ability :
500000pcs/month
Max APs :
64
Dimensions :
114*82.5*25mm
Packaging Details :
Packaging dimensions: 242*150*50mm, weight: 0.445kg, Carton dimensions: 530*320*260mm, 20 pcs/carton, weight: 9.8kg
Net Weight :
0.124kg
Certification :
CE , FCC, RoHS
Interface :
1*10/100/1000M WAN, 4*10/100/1000M LAN
Brand Name :
ONV
RAM :
256MB
Model Number :
ONV-AC504GE
Place of Origin :
China
Description
5-port Gigabit AC Gateway

OVERVIEW
The ONV-AC504GE is a gigabit high-performance intelligent Wi-Fi authentication gateway. It integrates AC, gateway, and PoE power supply functions, enabling unified configuration and management of wireless APs and meeting the gateway needs of small and medium-sized enterprises. It is the optimal solution for wireless network deployment in chain hotels, enterprises, schools, shopping malls, restaurants, etc. It supports intelligent flow control, intelligently selecting priorities based on application type, easily solving the problem of various P2P programs consuming network bandwidth. It features high performance, high reliability, easy installation, and easy maintenance, significantly reducing the economic cost of network deployment.

Technical Specifications
Model ONV-AC504GE
Interface Supports PPPoE
1*DC 12V 0.5A
1*10/100/1000M adaptive WAN port
4*10/100/1000M adaptive LAN ports
Supports multiple authentication methods
Supports PoE power supply: max 30W per port
CPU MTK MT7621
Flash 16MB
Memory 256MB
Max Number of APs Supported for Management 64
Recommended Max Number of Users 100
Reset Button Reset button (press and hold for 10 seconds to restore factory default settings)
Status Indicator WAN port, LAN port
Operating Power <65W
Net/Gross Dimension 114*82.5*25mm/242*150.50
Net/Gross Weight 0.124kg/ 0.445kg
Operation Temp/Humidity -40°C~+65°C, 5%~95% (non-condensing)
Storage Temp/Humidity -40°C~+75°C, 5%~95% (non-condensing)
Key Features
  • 5 *1000Mbps RJ45 ports
  • MT7621 Dual-core 880MHz CPU
  • Supports up to 64 access points
  • LAN1-LAN4 PoE output functionality
  • Intelligent flow control, seamless roaming
  • Supports up to 100 Simultaneous Internet users
  • 256MB high-speed memory, 16MB flash memory
  • Supports Internet access behavior management for effective network monitoring
