4GE 2POTS WIFI USB GPON Dual Band ONU Echolife HG8245Q2 HG8245Q English Firmware
4GE 2POTS WIFI USB GPON Dual Band ONU Echolife HG8245Q2 HG8245Q English Firmware
4GE 2POTS WIFI USB GPON Dual Band ONU Echolife HG8245Q2 HG8245Q English Firmware
4GE 2POTS WIFI USB GPON Dual Band ONU Echolife HG8245Q2 HG8245Q English Firmware
4GE 2POTS WIFI USB GPON Dual Band ONU Echolife HG8245Q2 HG8245Q English Firmware
4GE 2POTS WIFI USB GPON Dual Band ONU Echolife HG8245Q2 HG8245Q English Firmware
4GE 2POTS WIFI USB GPON Dual Band ONU Echolife HG8245Q2 HG8245Q English Firmware
4GE 2POTS WIFI USB GPON Dual Band ONU Echolife HG8245Q2 HG8245Q English Firmware
4GE 2POTS WIFI USB GPON Dual Band ONU Echolife HG8245Q2 HG8245Q English Firmware
4GE 2POTS WIFI USB GPON Dual Band ONU Echolife HG8245Q2 HG8245Q English Firmware
4GE 2POTS WIFI USB GPON Dual Band ONU Echolife HG8245Q2 HG8245Q English Firmware
4GE 2POTS WIFI USB GPON Dual Band ONU Echolife HG8245Q2 HG8245Q English Firmware
Specifications
Brand Name :
huawei
Model Number :
hg8245q2
Certification :
CE ROHS Anatel
Place of Origin :
China
MOQ :
50pcs
Price :
Negociatable
Payment Terms :
T/T,Western Union
Supply Ability :
10000pcs/Week
Delivery Time :
7-15days
Packaging Details :
Carton Box
Pon type :
GPON EPON XPON
WiFi :
AC WiFi 2.4g 5.0g
WLAN(2.4G) :
802.11 b/g/n(2.4G)
WLAN(5G) :
802.11 a/n/ac(5G)
Air Interface Rate :
300Mbit/s(2.4G) 1300Mbits/s(5G)
Ports :
Dual Band Wifi + 4GE+2TEL+USB
Power supply :
EU Power / US Power/ UK Power optional
Description
HG8245Q2 GPON ONT dual band WiFi AC1200 GPON ONU 4GE 2TEL 2.4G 5G WiFi

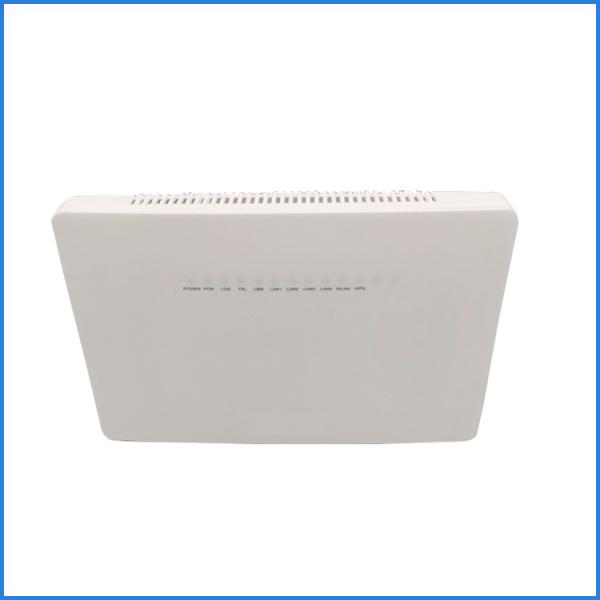

The Echo Life HG8245Q2 GPON ONU, an optical network terminal (ONT), is a high-end home in FTTH solution.

By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8245Q2 provides 2 POTS port, 4GE Ethernet ports,1USB port and dual band wireless,2.4G/5G,featuring high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and IPTV services.

Overview

Quick Details

Model Number: HG8245Q2
Type: Gpon/ Epon , ONT ONU
Place of Origin: Guangdong, China
Brand Name: Huawei
Use: Terminal
Warranty Time: 1 year
Name: Huawei Onu HG8245Q2
Condition: Original and Brand New
Antenna: External antenna
Ports: 4GE+1Tel+2USB+2WIFI(2.4G/5G)
Optical connecto: SC/UPC, SC/APC
Color: White
Gross Weight: About 500g
MOQ: 50 SET
Single-Mode Fiber: SMF
Application: FTTH FTTB FTTX Network
Specification
Brand Name
Huawei
Place of Origin
China
Model Number
HG8245Q2 ONU
Condition
Original and Brand New
Fiber interface
SC/UPC/APC Dual mode/Singal mode
Dimension
25X19X3.5 cm
Single gross weight
0.5 kg ±
Stock Situation
Ready stock

Product Descript
XPON GPON
Optical interface SC/UPC
UNI 1POTS+4GE+2USB+2.4G&5G Wi-Fi
WiFi standard 2.4GHz: 2 x 2 MIMO 802.11b/g/n
5GHz: 2 x 3 MIMO 802.11a/n/ac
Antenna gain 2dBi
Dimensions(Width×Depth×Height) 265mm x 176mm x 82mm
Box Dimensions(Width×Depth×Height) 290mm x 230mm x 95mm
Box Weight(kg) 0.85kg
Power supply Power supply: 11-14V DC, 1A
Input power: 100-240V AC, 50/60HZ
Operating temperature and operating humidity 0ºC to 40ºC
5% to 95%, non-condensing
Cooling Passive cooling
Maximum number of MAC addresses learned 1024
L2 forwarding capability 200 Mbit/s downstream (with any length packets)
200 Mbit/s upstream (with any length packets)
IPv4 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
IPv6 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
Configuration method NMS, Web, or TR069
Voice protocol SIP, H.248
