Specifications
Brand Name :
huawei
Model Number :
X2CS
Certification :
CE ROHS Anatel
Place of Origin :
GUANGDONG
MOQ :
10pcs
Price :
Negociatable
Payment Terms :
L/C, T/T
Supply Ability :
20000pcs/Week
Delivery Time :
10-15 days
Packaging Details :
carton box
Model :
X2CS
Port :
2 10GE Uplink Ports
Pluggable Module :
SFP+ Module
Corresponding Control Board :
SCUF/SCUN/SCUL/SCUH
Description

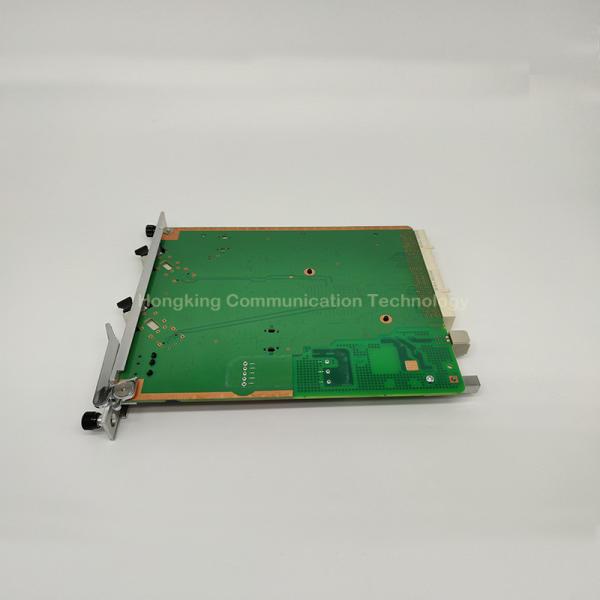

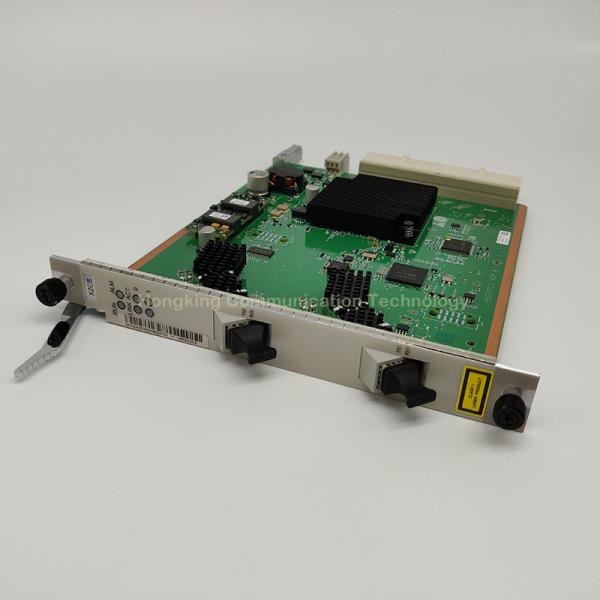

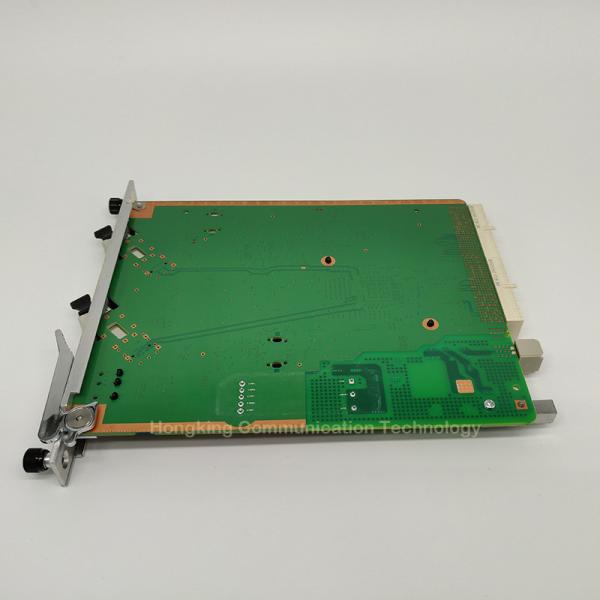

Huawei X2CS uplink board Product Overview

Huawei X2CS uplink board is a 2 port 10GE uplink optical uplink card of Huawei OLT.This card offers upstream or cascading optical ports. Without 10GE SFP+ module equipped as default.

The OLT product is positioned as an optical access device OLT, which supports GPON, 10G GPON, EPON, 10G EPON, and P2P access modes, and provides services such as Internet access, voice, and video. As a large, medium and small series of products, several products have a total of software platforms and business boards.

  • Large size equipment MA5680T
  • Medium specification equipment MA5683T
  • Small size equipment MA5608T

Huawei X2CS uplink board Product Features

  1. The interface module provides two 10GE external interfaces.
  2. The synchronous Ethernet clock module extracts the clock signal from the 10GE signal and synchronizes it to the 8K clock of the main control board.
  3. The power module provides working power for each functional module in the board.
  4. The clock module provides working clocks for each function module in the board.
  5. The control module is used to report the status information of the board and the manufacturing information, and provide interface information. In addition, the control module also has the function of managing and alarming the information of each module in the board.
