Specifications
Place of Origin :
Jiangsu, China
Brand Name :
SUMA or OEM
MOQ :
1
Torque Capacity :
39200 N.m
Drag Torque :
34.4 N.m
Grease Quantity :
0.23 kg
Precision Grade :
P6
Material :
GCr15
Max Overrunning Speed :
350 r/min
Inner Race Diameter :
180 mm
Outer Diameter :
360 mm
Width :
175 mm
PCD Diameter :
315 mm
Flange Diameter :
220 mm
Bolt Size :
M20 ×P2.5×10
Grease Filler Hole :
PT 1/4
Bolt Pitch :
2.5 mm
Bolt Quantity :
10
Description

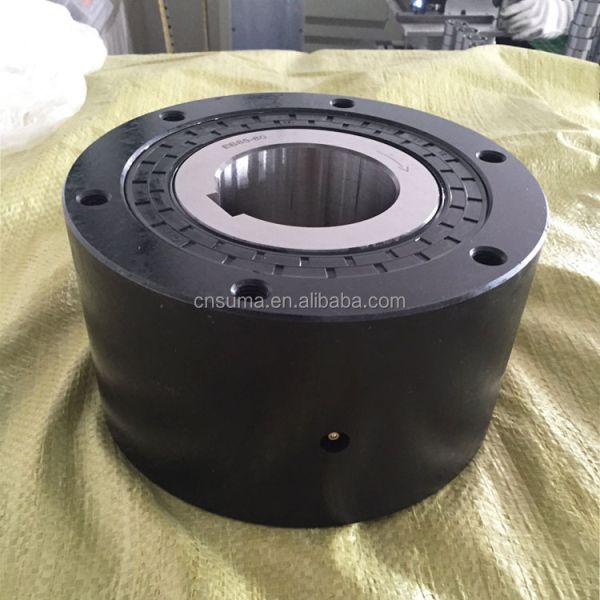

BS160HS One way Clutch bearing

Product Description

BS160HS One Way Clutch Bearing 39200N.m Torque for Conveyors

The BS series Cam Clutches are intended for applications where reverse rotation of the slow speed conveyor

head shaft is to prevented (backstopping).

MODELS BS30 TO BS135

BS160HS One Way Clutch Bearing 39200N.m Torque for Conveyors

The BS-HS series offer higher torque and speed not found in convention models.

MODELS BS160HS TO BS450HSBS160HS One Way Clutch Bearing 39200N.m Torque for Conveyors

BS160HS One Way Clutch Bearing 39200N.m Torque for Conveyors

Dimensions and Capacities dimensions in mm

ModelTorque
Capacity
(N·m)		Max.
Overrunning
(r/min)
Inner Race		Drag
Torque
(N·m)		ABC

PCD

D

ESH-M Size× Pitch
× No.of Tapped HoleS		Grease
Filler Hole
(Size)		Q’ty
Grease
(kg)
BS302943500.58649064804513M6 ×P1.0×4--
BS507843000.9867125671107016M8 ×P1.25×4--
BS6515703403.9290160851409020M10 ×P1.5×6--
BS7524503005.88901708515010020M10 ×P1.5×6--
BS8558803007.8411521011018511530M12 ×P1.75×6--
BS9578402509.811523011020013030M14 ×P2.0×6--
BS1101080025014.711527011022015030M16 ×P2.0×6--
BS1351570020019.613532013028018030M16 ×P2.0×8--
BS160HS3920035034.318036017531522040M20 ×P2.5×10PT 1/40.23
BS200HS6170025044.120543020038026040M22 ×P2.5×8PT 1/40.31
BS220HS10200020073.533050032542029040M20 ×P2.5×16PT 1/41.3
BS250HS14700017093.137060036553033050M24 ×P3.0×16PT 1/41.7
BS270HS2040001609838565038057537050M24 ×P3.0×16PT 1/42
BS300HS29400015010842578042069047060M30 ×P3.5×16PT 1/43.6
BS350HS39200011015744093048081553570M36 ×P4.0×16PT 1/44.1
BS425HS73500085216570103058094063570M36 ×P4.0×18PT 1/46.9
BS450HS98000080245570109060099064580M42 ×P4.5×18PT 1/47.2

Bore Keyway , Weight
