ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed
ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed
Specifications
Model Number :
ASK
Place of Origin :
Jiangsu, China
MOQ :
1
Precision Rating :
P0
Number of Row :
Single row
Material :
Gcr15
Inner diameter :
40-60 mm
Outer diameter :
68-95 mm
Width :
15-18 mm
Weight :
0.25-0.5 kg
Structure :
Deep Groove
Type :
BALL
Bore Size :
40 - 60 mm
Seals Type :
Sealed
Dynamic Load :
16-25.3 kN
Static Load :
20.6-35.1 kN
Max Speed :
1800-3500 min-1
Drag Torque :
15-25 Ncm
Description

China Bearing Manufacturer One Way Clutch Indexing clutch ASK

Product Description

ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed

Product Model: ASK
Type ASK is a roller type freewheel bearing supported by two rows of roller bearings. It is a self-contained dust protected unit, delivered grease lubricated.
Nominal outside dimensions are the same as a 60...Series bearing. Torque transmission must be ensured by a press fit on both the inner and outer race. Because of this press fit, the standard radial clearance is C4. The interference tolerances are on the freewheel dimensions, allowing a direct mounting in a standard series 60...Bearing location: Shaft tolerance should be h6 or j6 The Outer race should be pressed into a rigid housing to K6 tolerance.
Radial bearing load capacities are given in the table. Type ASK freewheels can not accept axial loading. In cases of such loads, thrust bearings must be provided.

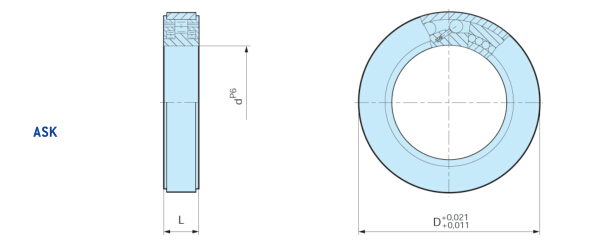

ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed

Type

Size

Bearing Series

Outside Diameter

Height

Bearing loads

Weight

Drag torque

Dynamic

static

ASK

Dp6

(mm)

TKN1)

(Nm)

nmax

(min-1)

D

(mm)

L

(mm)

C

(kN)

C0

(kN)

(kg)

TR

(Ncm)

40

6008

72

3500

68

15

16

20.6

0.25

15

50

6010

125

2200

80

16

19.6

23.5

0.34

20

60

6012

250

1800

95

18

25.3

35.1

0.5

25

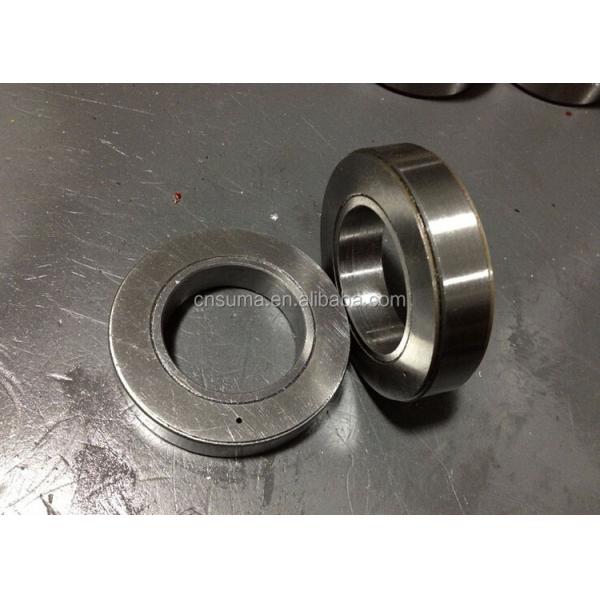

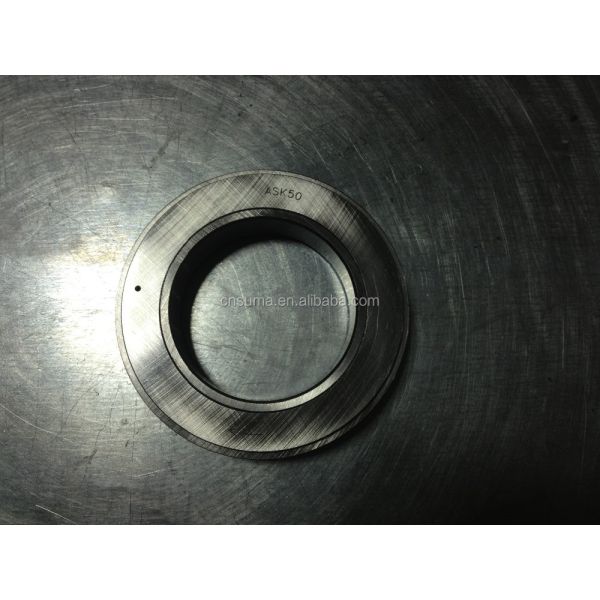

Detailed Image

ASK Series One Way Clutch Bearing 40-60mm Inner Dia SealedASK Series One Way Clutch Bearing 40-60mm Inner Dia SealedASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed
