Specifications
Brand Name :
SUMA
Model Number :
LD07
Place of Origin :
Jiangsu, China
MOQ :
2
Type :
LD Series
Precision Rating :
P0, P6
Seals Type :
seales
Thickness :
24mm
Weight :
0.55kg
Torque Capacity :
29.4Nm
Drag Torque :
0.39Nm
Max Overrunning Speed :
200r/min
Max Indexing Speed :
100cycle/min
Max Radial Load :
70kgf
Bore Size :
25mm
Inner Race Diameter :
19.5mm
Outer Race Keyway :
7x4
Keyway Size :
7x3
Outer Race Diameter :
72mm
Description

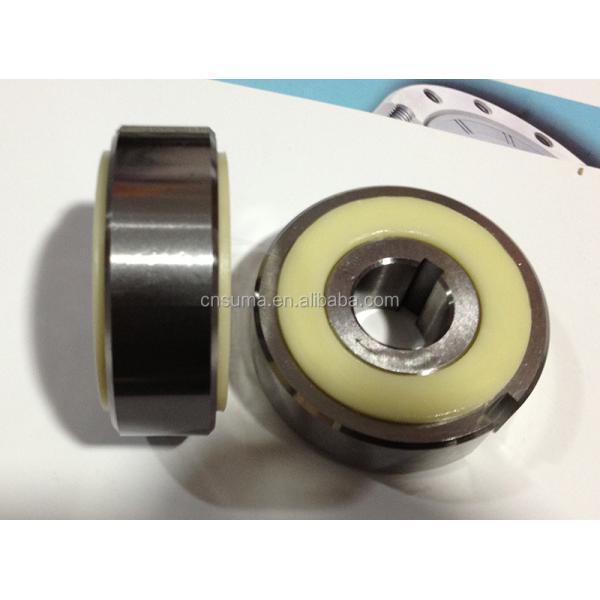

Free Wheel One-way Clutch Bearing LD07

LD07 One Way Clutch Bearing 24mm 29.4Nm Torque

Product Description

Description of Free Wheel One-way Clutch Bearing LD07

Product Model: LD04-LD08
Installation and Usage
1. LD Series Cam Clutch is prelubricated with special grease and are ready for use.
No additional lubricant is required.
2. When installing the clutch on the shaft, press the clutch inner race slightly with a soft hammer to prevent the clutch Outer race from slipping away from the inner race.
3. Be sure to attach the plate. This prevents the outer race from slipping away from the inner race. See recommended Dimensions of the plate listed on the right.
4. For lubrication, coat the plate and thrust metal with grease.
5. Never apply thrust loads to the clutch. Other devices should be provided to take up thrust loads applied to the clutch.
6. Key should be in accordance with JIS B1301-1959.
7. The bores of the pulley, sprocket, etc., should have a tolerance of H6 or H7.

Parameter of Free Wheel One-way Clutch Bearing LD07

LD07 One Way Clutch Bearing 24mm 29.4Nm Torque



Model


Torque
Capacity
(N@m)


Drag
Torque
(N@m)

Max.
Overrunning
(r/min)


Max.
indexing
(cycle/min)


Max.Radial
Load When
Overrunning
(kgf)


Bore Size




A




B




C




D




E




Outer Race
Keyway



Weight
( kg )

Inner Race

Dia.
(H7)

Keyway

LD04

5.88

0.2

300

100

20

10

4x1.5

19.5

23.9

24

47 -0.014
-0.039

40

5x3

0.25

LD05

9.8

0.29

300

100

30

14

5x2

19.5

23.9

24

52 -0.017
-0.042

45

5x3

0.3

LD06

19.6

0.29

200

100

50

20

5x2

19.5

23.9

24

62 -0.017
-0.042

52

7x4

0.4

LD07

29.4

0.39

200

100

70

25

7x3

19.5

23.9

24

72 -0.017
-0.042

62

7x4

0.55

LD08

49

0.49

200

100

80

30

7x3

19.5

23.9

24

82 -0.017
-0.042

70

10x4.5

0.65

Certifications

LD07 One Way Clutch Bearing 24mm 29.4Nm Torque

LD07 One Way Clutch Bearing 24mm 29.4Nm Torque

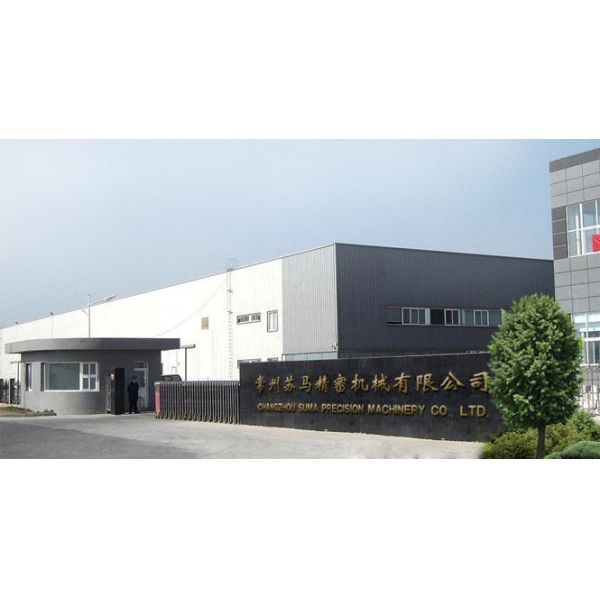

Company Information

Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology

LD07 One Way Clutch Bearing 24mm 29.4Nm Torque

LD07 One Way Clutch Bearing 24mm 29.4Nm Torque

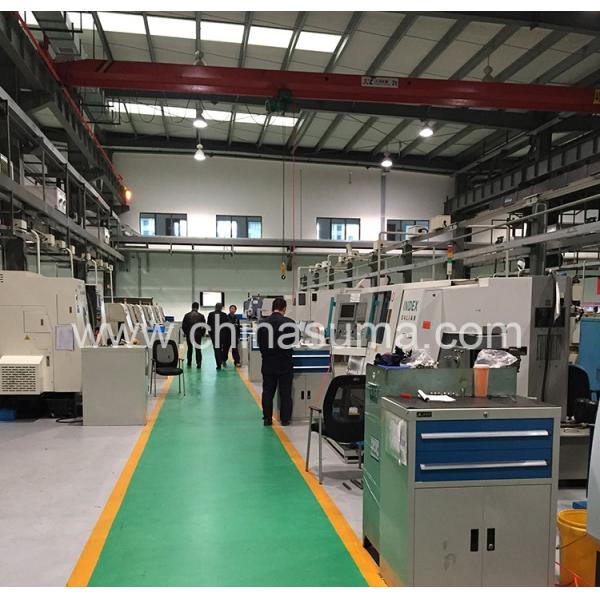

Production and Test
