GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque
GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque
GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque
GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque
GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque
GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque
GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque
GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque
GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque
GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque
GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque
GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque
Specifications
Brand Name :
SUMA
Model Number :
GFK 35
Place of Origin :
Jiangsu, China
MOQ :
2
Price :
$42-58
Type :
sprag
Precision Rating :
P0
Seals Type :
sealed
Material :
GCr15 Steel
Thickness :
27mm
Torque capacity :
204Nm
Weight :
0.2kg
Inner diameter :
35mm
Outer diameter :
55mm
Bearing type :
Sprag bearing
Structure :
Sprag type
Overrunning speeds :
4600 min-1 (dynamic), 3200 min-1 (static)
Dynamic load :
8200N (rollers), 8500N (balls)
Static load :
5200N (rollers), 5700N (balls)
Bearing series :
5907
Description

5907 Bearing GFK35 Ball Bearing Sprag Type Clutch GFK 35

Product Description

Features of Sprag Type Clutch

Type GF, GFK is a sprag freewheel integrated into a 59. series ball bearing.

The dedign provides high torque capacity for minimal outside diameter.

Product name

Sprag Type Clutch

Model

GFK35

Torque capacity

204Nm

Inner diameter

35mm

Outer diameter

55mm

Material

GCr15

Thickness

27mm

Weight

0.2kg

Package

Carton Box / Wooden box or customized

Payment terms

TT, L/C, D/A, D/P, Western Union

Delivery time

5-7 days after order confirmed if no stock

Installation instruction of Sprag Type Clutch

Torque transmission must be ensured by a press fits assembly into a rigid outer housing with R6 tolerance, and onto a shaft with P5 tolerance.

Catalogue of Sprag Type Clutch for your choice

GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque

Type

Size

Overrunningspeeds

Bearing

series

Loads

Weight

Rollers

dyn.

Balls

dyn.

Rollers

stat.

Balls

stat.






GFK

d

TKN1)

n imax2)

n amax3)

C

C

C0

C0

D

L

r

[mm]

[Nm]

[min-1]

[min-1]

[N]

[N]

[N]

[N]

[mm]

[mm]

[mm]

[kg]

20

51

5500

4000

5904

5600

4400

2900

2750

37

23

0.5

0.09

25

65

5300

3800

5905

6300

5300

3450

3350

42

23

0.5

0.11

30

95

5000

3500

5906

7700

5500

4600

3650

47

23

0.5

0.13

35

204

4600

3200

5907

8200

8500

5200

5700

55

27

1

0.2

40

315

4200

3000

5908

8650

9300

5750

6700

62

30

1

0.3

45

370

3800

2500

5909

9200

9700

6350

7300

68

30

1

0.34

50

460

3400

2200

5910

9650

10000

6950

7800

72

30

1

0.36

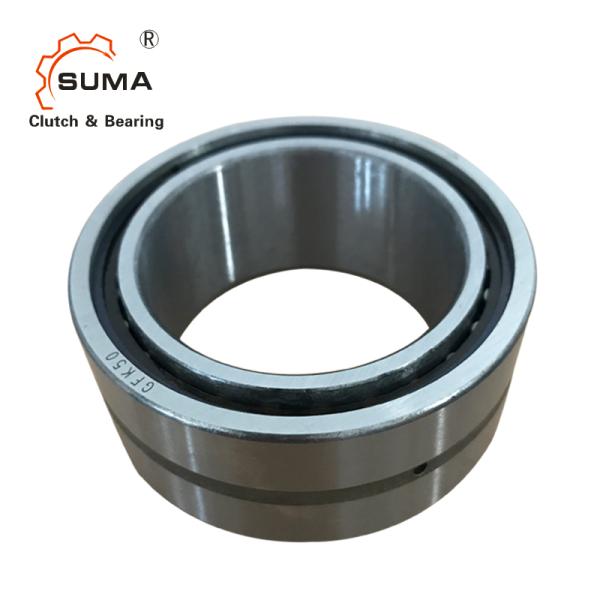

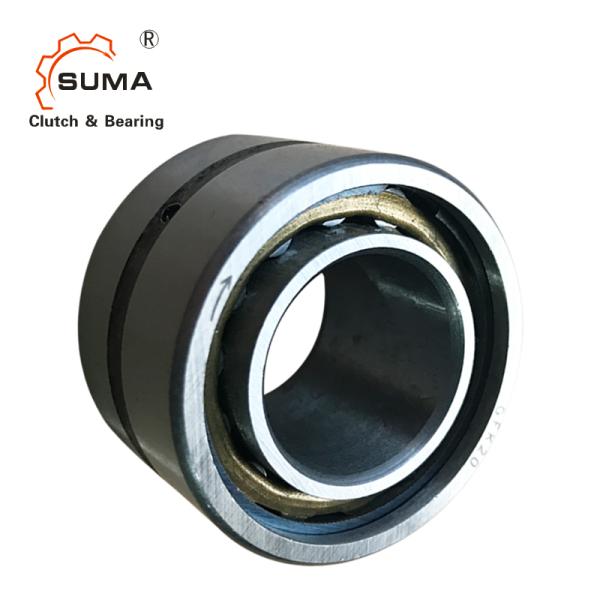

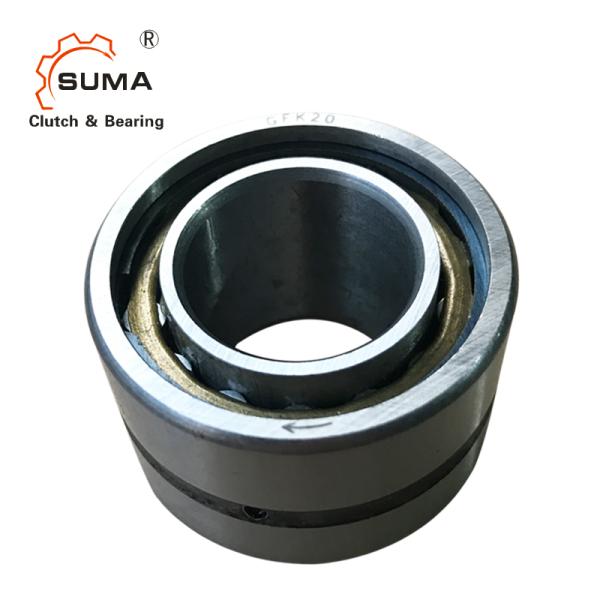

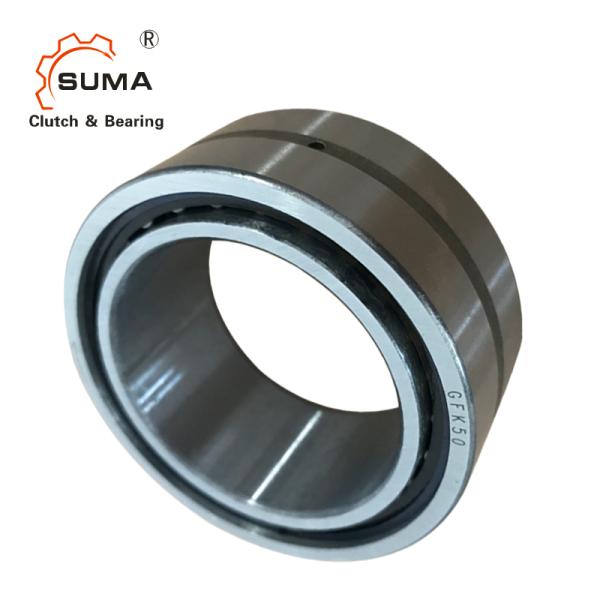

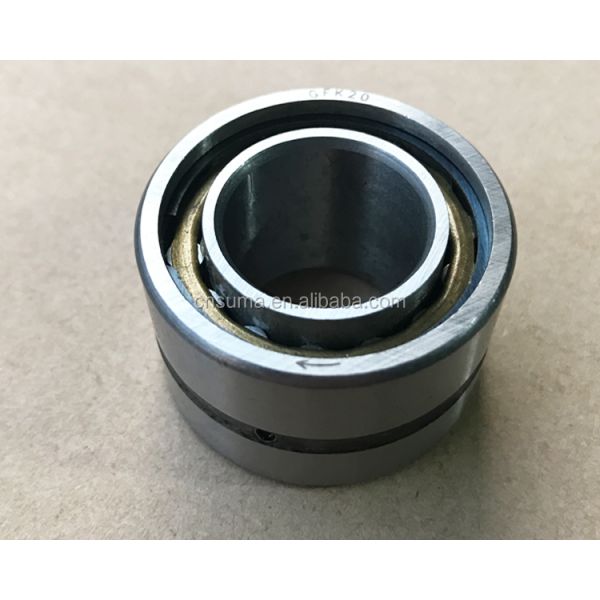

Detailed Images

GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm TorqueGFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm TorqueGFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque

GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm TorqueGFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm TorqueGFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque

FAQ

Q: How do you pack the goods?

  • Small Items:

Each in small white box or Roll Pack or Tube pack - in 19x18x9CM carton box - 29*28*19CM carton box - Wooden box / Wooden pallet

  • Medium Items: 29*28*19cm carton box + Wooden box /Wooden pallet
  • Heavy Items: Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
