CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID
CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID
CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID
CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID
CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID
CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID
CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID
CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID
CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID
CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID
CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID
CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID
Specifications
Place of Origin :
China
MOQ :
10
Price :
$8-9.50
Type :
Sprag
Precision Rating :
P0
Material :
Steel, GCr15
Weight :
0.6kgs
Inner Diameter :
8-40MM
Outer Diameter :
22-80MM
Dynamic Load :
3.28-15.54kN
Static Load :
0.86-12.25kN
Max Speed :
15000 min-1
Drag Torque :
0.5-10 Ncm
Bearing Series :
6200-6207
Length :
9-22mm
Torque Capacity :
2.5-325 Nm
Structure :
Sprag type
Bearing Width :
2-12mm
Description

Sprag Clutch CSK40-2RS One Way Clutch Ball Bearing for Belt Pulley CSK40 2RS

Product Description

CSK series are sprag type one way freewheel bearings.

MODEL CSK / CSK...2RS / CSK...P / CSK...PP / CSK...P-2RS / CSK...PP-2RS
Structure Sprag type
Available Size ID 8-40MM, OD 22-80MM
Delivery time In stock
Package Tube / Carton - 19*14.5*7.5cm Box - 29*28*19 Box - Pallet or Customized
Payment Terms TT, D/P, D/A, Western Union, Paypal, Bank
Shipping Way By air ( TNT/ FEDEX / UPS / DHL) , By sea
Warranty 1 Year

CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID

SPECIFICATIONS

Type Size Bearing series Dimension Bearing loads Weight Drag torque
dynamic static
CSK(KK) d TKN1) N max Outer Dia. Length C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [kN] [kN] [kg] [Ncm]
8* – 2.5 15000 22 9 3.28 0.86 0.015 0.5
10 6200 6.8 13000 30 9 4.5 1.56 0.032 0.36
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 15.54 12.25 0.5 7

Type Size Bearing series Bearing loads Weight

Drag

torque
dynamic static
CSK..P d TKN1) nmax D L b t C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 15.54 12.25 0.5 7
CSK..PP 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 10 3 15.54 12.25 0.5 7
45 _ 218 1600 85 19 12 2.5 18.36 15.35 0.44 9.3
50 _ 230 1500 90 20 12 2.5 19.53 17.68 0.49
CSK..P-2RS 12 – 9.3 10000 32 14 6.1 2.77 0.05 3
15 – 17 8400 35 16 7.4 3.42 0.07 4
17 – 30 7350 40 17 7.9 3.8 0.09 5.6
20 – 50 6000 47 19 9.4 4.46 0.145 6
25 – 85 5200 52 20 10.7 5.46 0.175 6
30 – 138 4200 62 21 11.7 6.45 0.27 7.5
35 – 175 3600 72 22 12.6 7.28 0.4 8.2
40 – 325 3000 80 27 15.54 12.25 0.6 10

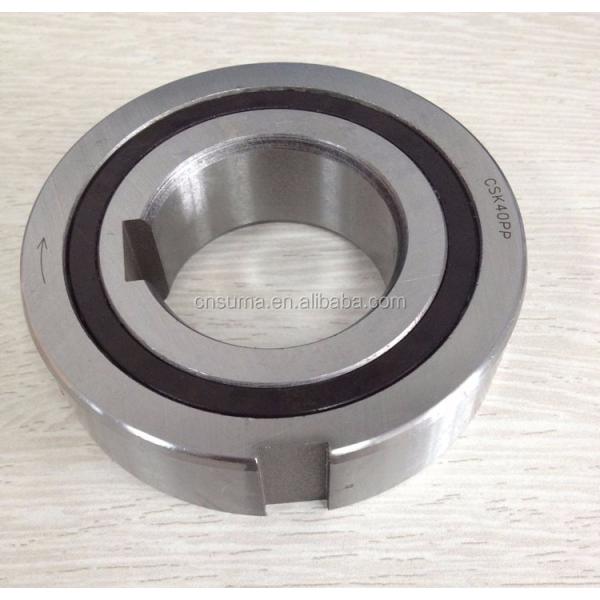

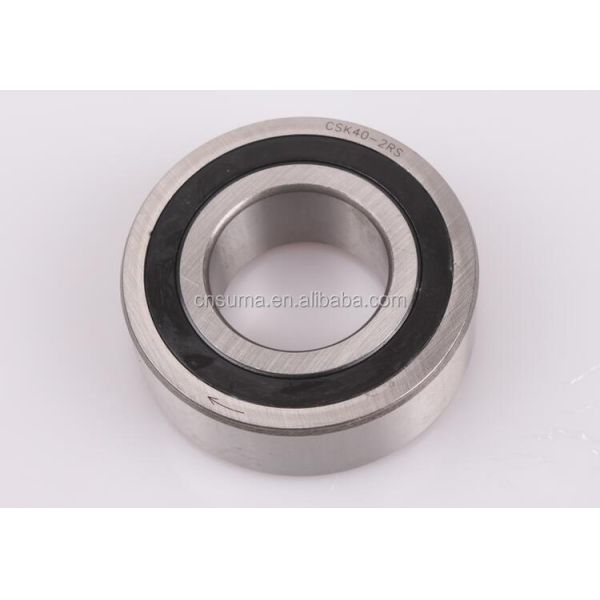

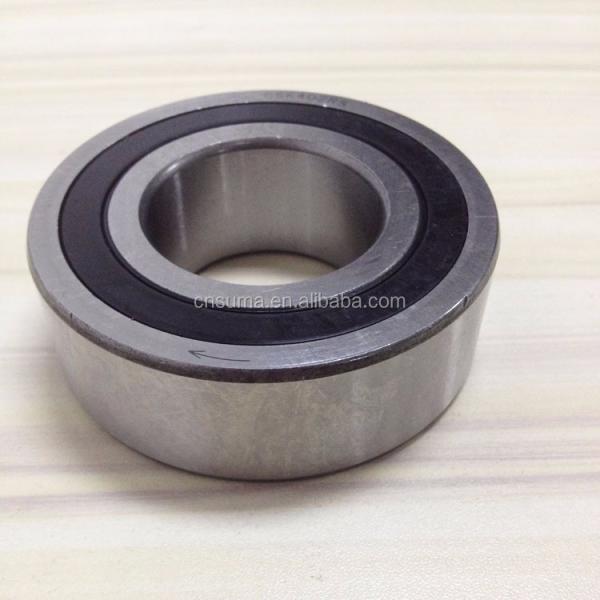

Detail Images

CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm IDCSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID

CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID

CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID

Company Information

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Clients Visit

CSK40-2RS Sprag Clutch Bearing for Belt Pulley 40mm ID

FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
