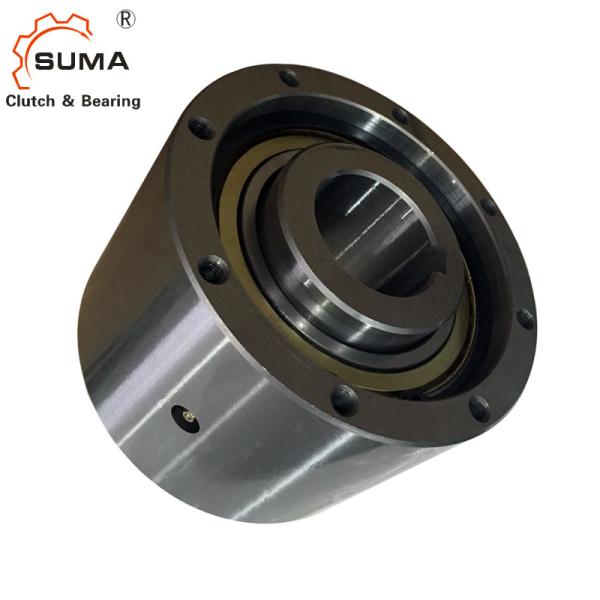

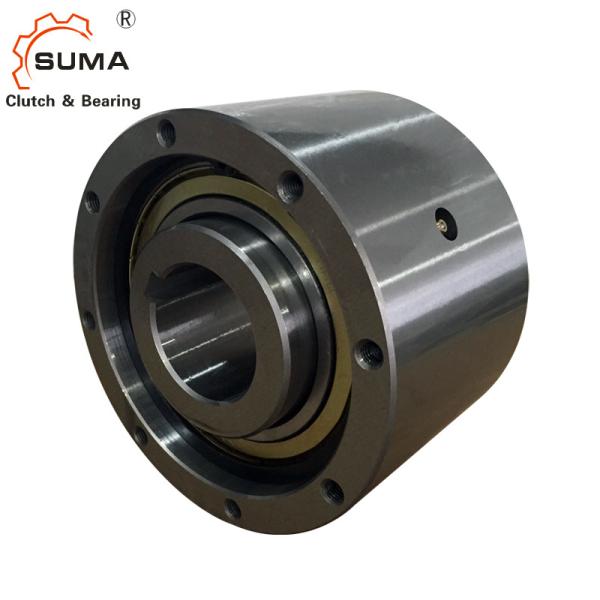

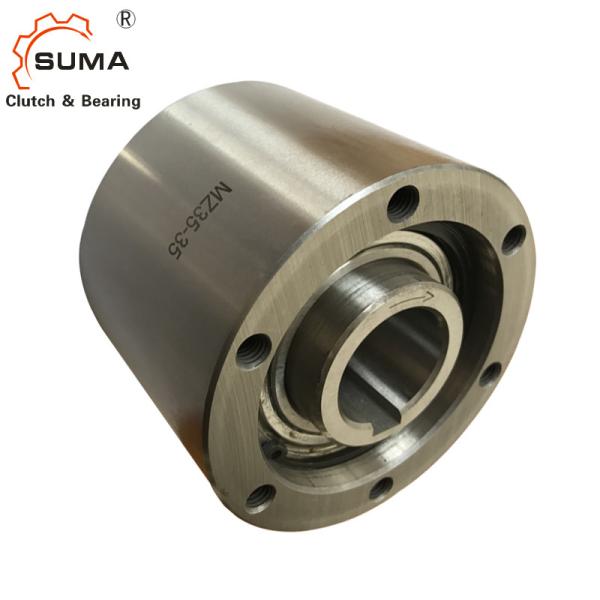

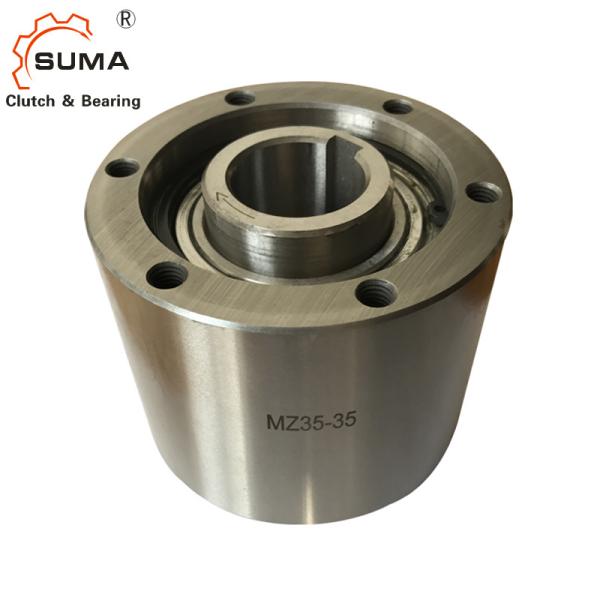

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
Specifications
Model Number :
MX35
Brand Name :
SUMA
Place of Origin :
Jiangsu, China
MOQ :
1
Precision Rating :
P0
Seals Type :
Sealed
Type :
CAM
Torque Capacity :
235 Nm
Max Indexing :
1200 cycle/min
Drag Torque :
1.36
Weight :
6.4 kg
Bore size :
35 mm
Outer race :
125 mm
Press fit tolerance :
0.025 mm
Hub bore tolerance :
H6 or H7
Model :
MX35
Installation method :
Press fit
Keyway clearance :
Tight fit with top clearance
Mounting pressure :
Inner race end only
Description

MX35 One Way Roller Clutch Cam Clutch

Product Description

MODEL : MX35 Cam Clutch

Item MX35
Precision P0
Type cam
Bore size (mm) 35
Outer race (mm) 125
Torque Capacity(Nm) 235
Max.Indexing(cycle/min) 1200
Weight (kg) 6.4
Application Elevator , industrial machine and so on

Installation and Usage

1. For installation, insert the clutch into the hub bore of a pulley, a gear, or a torque arm and screw the bolts (high tension) into the tapped holes in the end face of the clutch.

2. A press fit is required for MX Series clutches for indexing applications, but do not exceed

0.025 mm when press fitting.

3. Adjust the side of the key to fit the keyway tightly, but allow a clearance between the top of key and keyway.

4. When mounting the clutch on a shaft, apply pressure to the clutch inner race end, but never

to the outer race.

5. Proper selection of the Cam Clutch provides accurate indexing performance. A braking

device and a backstopping device may also be required for more accurate performance.

6. The tolerance of the hub bore should be H6 or H7.

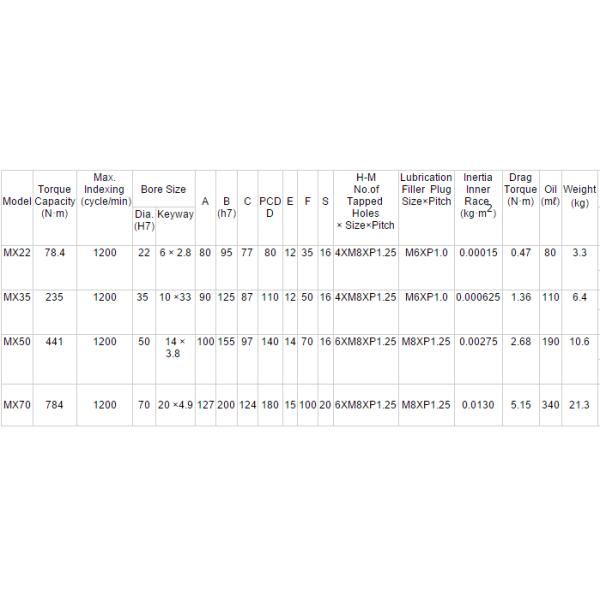

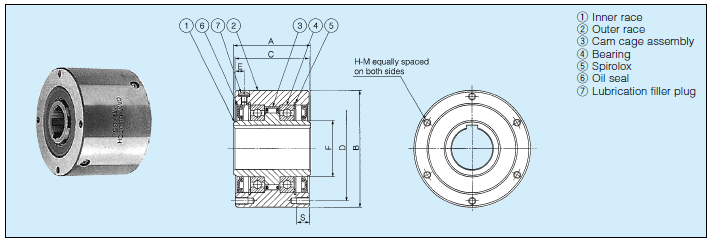

PARAMETERS LIST

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity

Packaging

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity

Company Information

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity

FAQ

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
