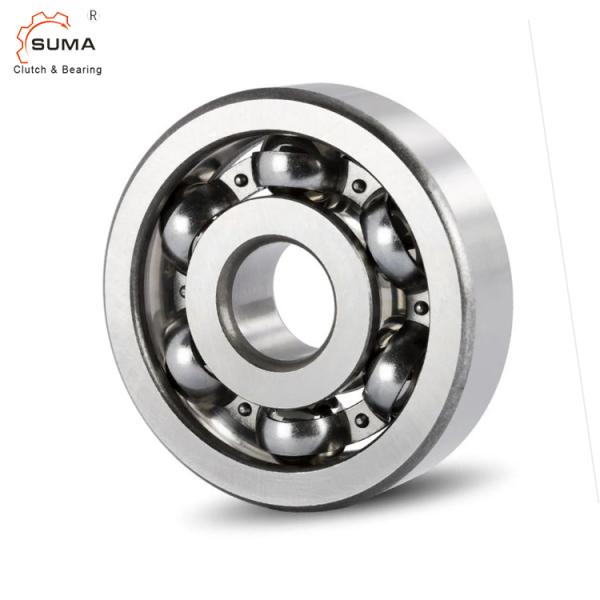

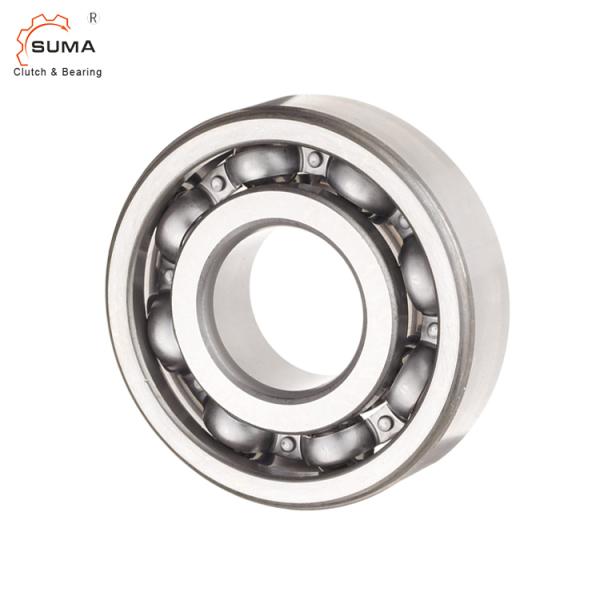

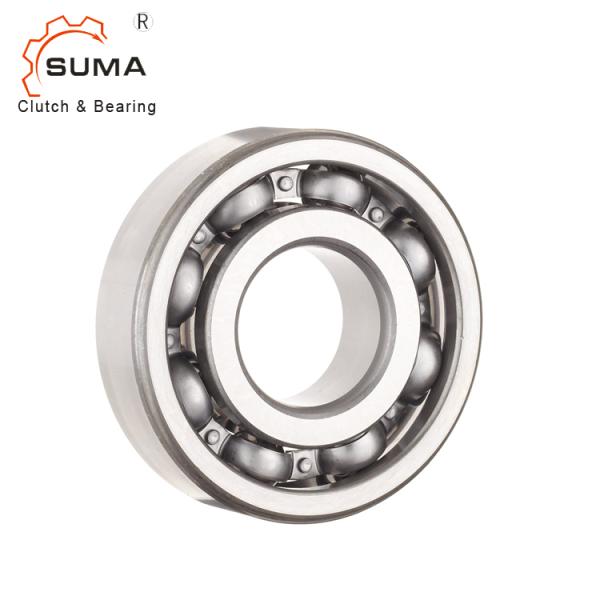

6201-6208 Open Type Deep Groove Ball Bearings 10-40mm ID
6201-6208 Open Type Deep Groove Ball Bearings 10-40mm ID
6201-6208 Open Type Deep Groove Ball Bearings 10-40mm ID
6201-6208 Open Type Deep Groove Ball Bearings 10-40mm ID
6201-6208 Open Type Deep Groove Ball Bearings 10-40mm ID
6201-6208 Open Type Deep Groove Ball Bearings 10-40mm ID
Specifications
Place of Origin :
Jiangsu, China
Model Number :
6000 Series
MOQ :
10
Price :
$0.14-0.20
Number of Row :
Double row
Precision Rating :
Z1 Z2 Z3
ID Dia. :
10-40mm
Thickness :
8-27mm
Bearing type :
Ball Bearing
Structure :
Deep Groove
Type :
Ball
Bore Size :
12 - 40 mm
Seals Type :
OPEN
Load Capacity Cr :
4.60 - 63.70 kN
Load Capacity Co :
2.00 - 34.60 kN
Rotation Speed Grease :
7800 - 26000 RPM
Rotation Speed Oil :
11000 - 38000 RPM
Weight :
0.02 - 1.25 kg
Dimensions d :
10 - 40 mm
Description

6201 6202 6203 6204 6205 6206 6207 6208 Open Type

Geep Groove Ball Bearings

Product Description

Features of Deep Groove Ball Bearings

Deep groove ball bearings are the most widely used bearing type and are particularly versatile.

They have low friction and are optimized for low noise and low vibration which enables high rotational speeds.

They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types.

Catalogue of Deep Groove Ball Bearings

6201-6208 Open Type Deep Groove Ball Bearings 10-40mm ID

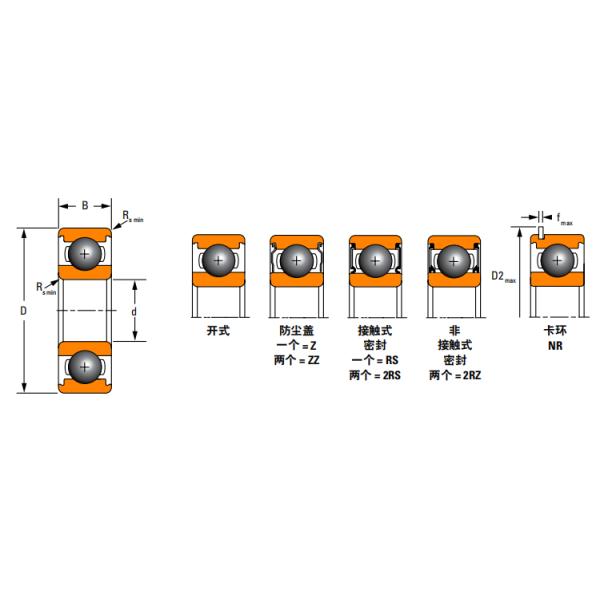

Bearing
No		 Dimensions ( mm ) Load Capacity ( kN ) Rotation Speed ( RPM ) Weight
d D B RSMIN D2Max fMax Cr Co Grease Oil kg
6000 10 26 8 0.3 29.2 0.7 4.60 2.00 26000 38000 0.02
6200 10 30 9 0.6 34.7 1.12 5.10 2.40 22000 32000 0.03
6300 10 35 11 0.6 39.7 1.12 8.10 3.50 20000 29000 0.05
6001 12 28 8 0.3 30.8 0.85 5.10 2.40 23000 33000 0.02
6201 12 32 10 0.6 36.7 1.12 6.80 3.00 21000 30000 0.04
6301 12 37 12 1.0 41.3 1.12 9.70 4.20 19000 27000 0.06
6002 15 32 9 0.3 36.7 1.12 5.60 2.80 20000 30000 0.03
6202 15 35 11 0.6 39.7 1.12 7.60 3.70 19000 28000 0.05
6302 15 42 13 1.0 46.3 1.12 11.40 5.40 16000 24000 0.08
6003 17 35 10 0.3 39.7 1.12 6.00 3.30 19000 28000 0.04
6203 17 40 12 0.6 44.6 1.12 9.60 4.80 17000 25000 0.07
6303 17 47 14 1.0 52.7 1.12 13.60 6.60 15000 22000 0.12
6004 20 42 12 0.3 46.3 1.12 9.40 5.00 17000 25000 0.07
6204 20 47 14 0.6 52.7 1.12 12.80 6.60 15000 22000 0.1
6304 20 52 15 1.0 57.9 1.12 15.90 7.80 13000 20000 0.14
6005 25 47 12 0.6 52.7 1.12 10.10 5.80 14000 21000 0.08
6205 25 52 15 1.0 57.9 1.12 14.00 7.90 14000 20000 0.13
6305 25 62 17 1.1 67.7 1.7 20.60 11.20 12000 17000 0.22
6405 25 80 21 1.5 86.6 1.7 36.10 18.80 10000 15000 0.53
6006 30 55 13 1.0 60.7 1.12 13.20 8.30 12000 18000 0.11
6206 30 62 16 1.0 67.7 1.7 19.50 11.30 11000 16000 0.2
6306 30 72 19 1.1 78.6 1.7 26.60 15.00 10000 15000 0.35
6406 30 90 23 1.5 96.5 2.46 47.30 24.50 9300 13000 0.74
6007 35 62 14 1.0 67.7 1.7 15.90 10.30 11000 16000 0.15
6207 35 72 17 1.1 78.6 1.7 25.70 15.30 10000 14000 0.29
6307 35 80 21 1.5 86.6 1.7 33.40 19.20 9300 13000 0.45
6407 35 100 25 1.5 -- -- 55.50 29.40 8500 12000 0.95
6008 40 68 15 1 74.6 1.7 16.80 11.50 10000 15000 0.19
6208 40 80 18 1.1 86.6 1.7 29.50 18.10 8800 13000 0.37
6308 40 90 23 1.5 96.5 2.46 40.70 24.00 8500 12000 0.64
6408 40 110 27 2 116.6 2.46 63.70 34.60 7800 11000 1.25

Production Flow 1

6201-6208 Open Type Deep Groove Ball Bearings 10-40mm ID6201-6208 Open Type Deep Groove Ball Bearings 10-40mm ID

FAQ

Q: How do you pack the goods?

  • Small Items:

In Tube box - in 19x18x9CM carton box - 29*28*19CM carton box - Wooden box / pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small Qty: In stock.
  • Medium Qty: 10-15 Days
  • Big Qty: 20-25 Days
