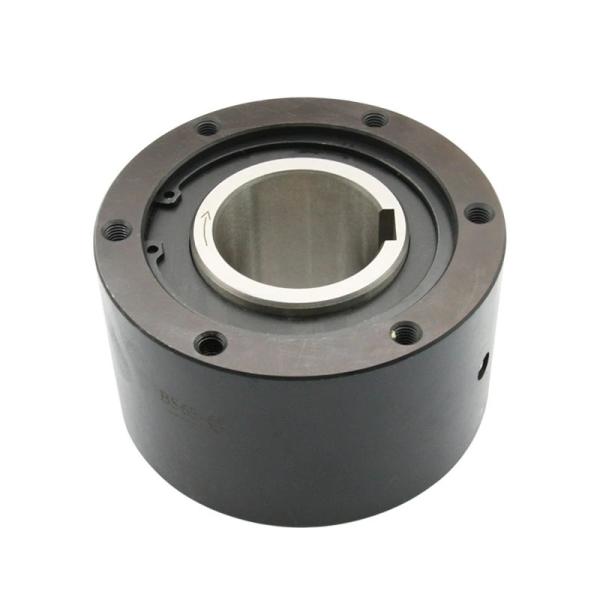

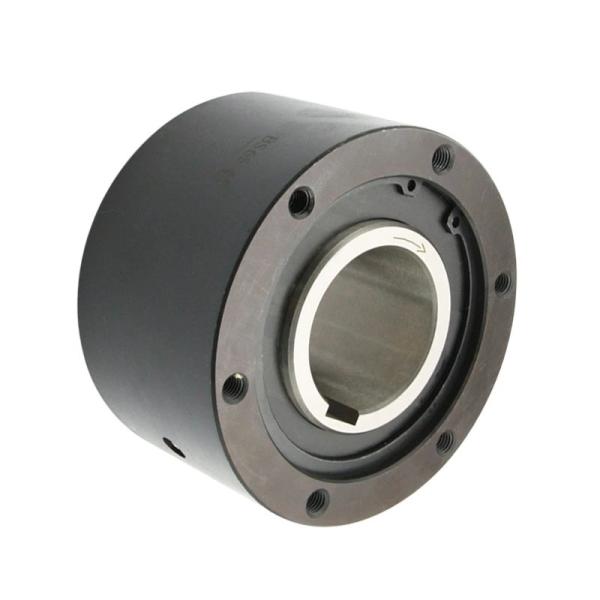

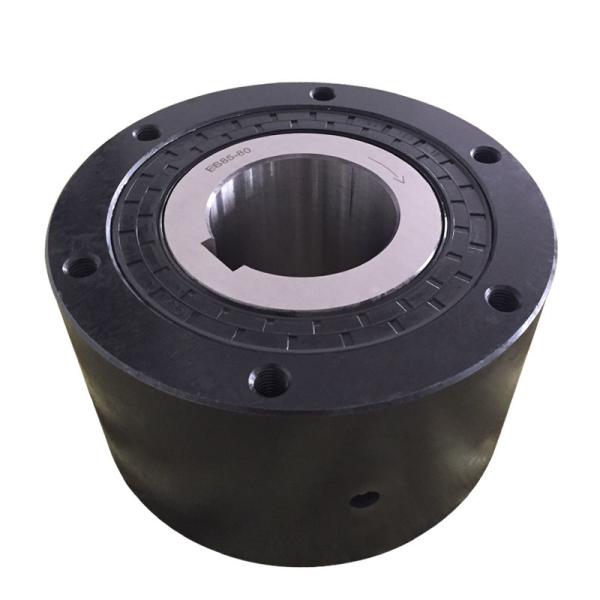

BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
Specifications
Model Number :
BS 75
Brand Name :
SUMA
Place of Origin :
Jiangsu, China
MOQ :
2
Price :
$160
Precision Rating :
P0
Seals Type :
SEALED
Type :
Cam
Torque Capacity :
2450Nm
Max overrunning speed :
300 r/min
Width :
90 mm
Drag Torque :
5.88 N*m
Inner Race :
90 mm
Outer Race :
170 mm
PCD Diameter :
150 mm
Bolt Hole Size :
M10 × P1.5 × 6
Weight :
13.1 kg
Bore Diameter Range :
100 to 160 mm
Grease Filler Hole :
PT 1/4
Quantity Grease :
0.12 kg
Description
Product Overviews

BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width

Description of One Way Lock Clutch Bearing BS75 Power Transmission Parts

BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width

Introduction of BS series backstop cam clutch bearings

The BS series Cam Clutches are intended for applications where reverse rotation of the slow speed conveyor head shaft is to prevented (backstopping).

Parameter of BS series backstop cam clutch bearings

MODELS BS30 TO BS135

BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width

Model Torque
Capacity
(N·m)		 Max.
Overrunning
(r/min)
Inner Race		 Drag
Torque
(N·m)		 A B C

PCD

D

 E S H-M Size× Pitch
× No.of Tapped HoleS		 Grease
Filler Hole
(Size)		 Q’ty
Grease
(kg)		 Weight (Kg)
BS30 294 350 0.58 64 90 64 80 45 13 M6 ×P1.0×4 - - 21
BS50 784 300 0.98 67 125 67 110 70 16 M8 ×P1.25×4 - - 4.0
BS65 1570 340 3.92 90 160 85 140 90 20 M10 ×P1.5×6 - - 11.5
BS75 2450 300 5.88 90 170 85 150 100 20 M10 ×P1.5×6 - - 13.1
BS85 5880 300 7.84 115 210 110 185 115 30 M12 ×P1.75×6 - - 24.7
BS95 7840 250 9.8 115 230 110 200 130 30 M14 ×P2.0×6 - - 29.4
BS110 10800 250 14.7 115 270 110 220 150 30 M16 ×P2.0×6 - - 34.2
BS135 15700 200 19.6 135 320 130 280 180 30 M16 ×P2.0×8 - - 68

MODELS BS160 TO BS450

BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width

BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width



Model


Torque
Capacity
(N·m)

Max.
Overrunning
(r/min)
Inner Race


Drag
Torque
(N·m)



A



B



C



PCD
D



E



S


H-M
Size× Pitch
× No.of

Tapped

Holes



Grease
Filler Hole
(Size)



Q’ty of
Grease
(kg)


Bore
Diameter
Range
(mm)



W. Max

kg



W. Min

kg

BS160

24,500

100

33.1

130

360

130

315

220

40

M20 × P2.5 ×10

PT 1/4

0.12

100 to 160

98.1

85.6

BS200

37,200

100

44.1

150

430

145

380

265

40

M22 × P2.5 × 8

PT 1/4

0.14

100 to 200

167

140

BS220

49,000

80

73.5

235

500

230

420

290

40

M20 × P2.5 ×16

PT 1/4

0.8

150 to 220

301

264

BS250

88,200

50

93.1

295

600

290

530

330

50

M24 × P3.0 ×16

PT 1/4

1.1

175 to 250

580

523

BS270

123,000

50

98

295

650

290

575

370

50

M24 × P3.0 ×16

PT 1/4

1.2

200 to 270

620

562

BS300

176,000

50

108

295

780

290

690

470

60

M30 × P3.5 ×16

PT 1/4

1.3

230 to 300

952

885

BS335

265,000

50

137

305

850

320

750

495

70

M36 × P4.0 ×16

PT 1/4

1.4

250 to 335

1,140

1,040

BS350

314,000

50

157

320

930

360

815

535

70

M36 × P4.0×16

PT 1/4

1.5

250 to 350

1,600

1,470

BS425

510,000

50

216

440

1,030

450

940

635

70

M36 ×P4.0 ×18

-

Oil 6,000ml

325 to 425

2,450

2,240

BS450

686,000

50

245

450

1,090

480

990

645

80

M42 × P4.5 ×18

-

Oil 7,000ml

350 to 450

2,820

2,580

W. Min Weight at Minimum Bore

W. Max Weight at Maximum Bore

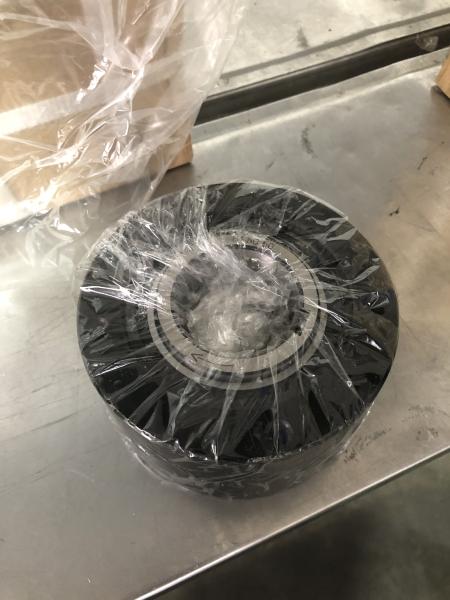

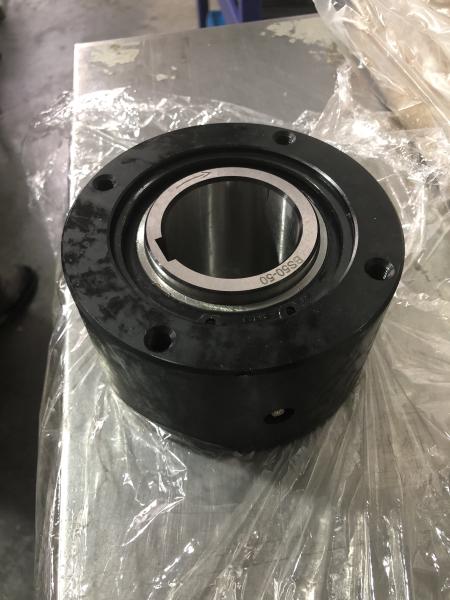

Packaging

BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
