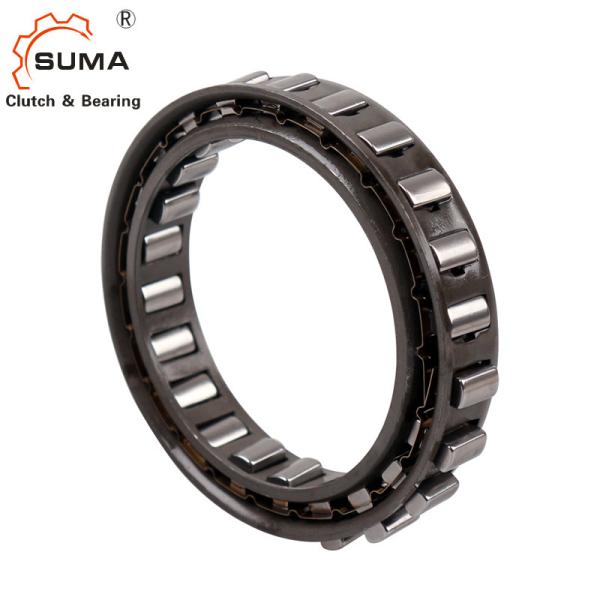

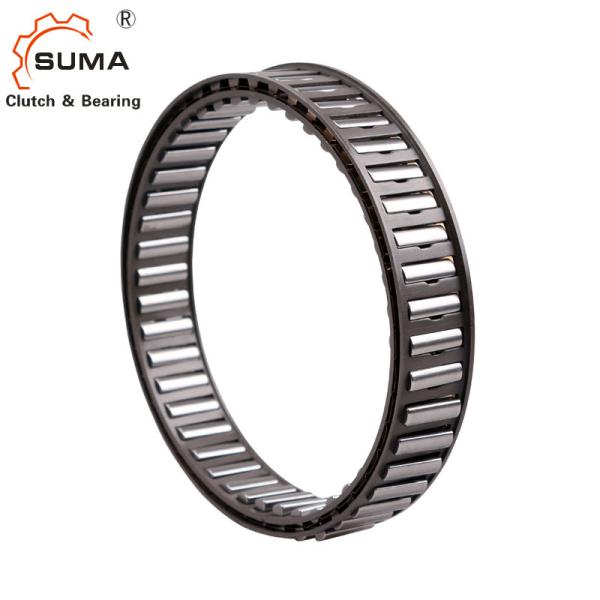

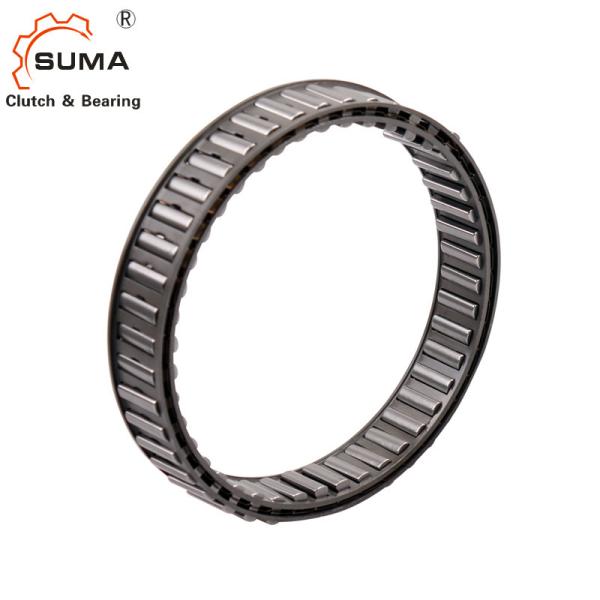

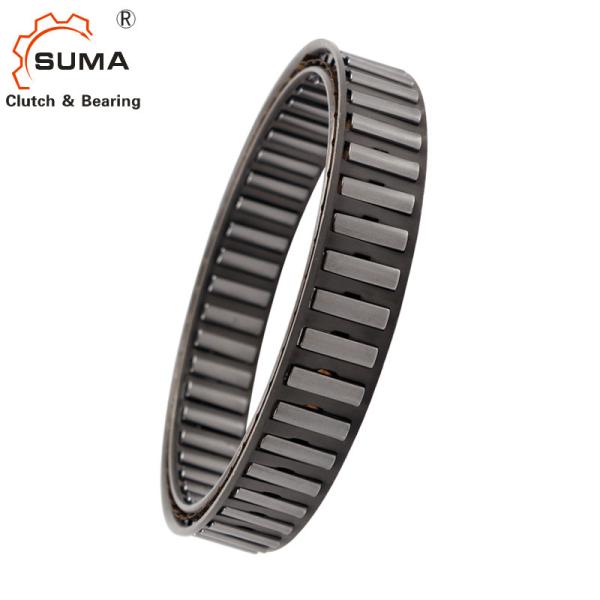

DC5476 BW13214 Centrifugal Backstop Cam Clutch
DC5476 BW13214 Centrifugal Backstop Cam Clutch
DC5476 BW13214 Centrifugal Backstop Cam Clutch
DC5476 BW13214 Centrifugal Backstop Cam Clutch
DC5476 BW13214 Centrifugal Backstop Cam Clutch
DC5476 BW13214 Centrifugal Backstop Cam Clutch
DC5476 BW13214 Centrifugal Backstop Cam Clutch
DC5476 BW13214 Centrifugal Backstop Cam Clutch
Specifications
Brand Name :
SUMA
Model Number :
BW13214 DC5476
Certification :
ISO SGS
Place of Origin :
CHINA
MOQ :
1
Price :
USD260-USD350 PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
1000PCS Per Month
Delivery Time :
7-10 Days
Packaging Details :
Wooden Case
Product Name :
Sprag Clutch Bearing X-135006
Material :
GCr15 Bearing Steel
Size :
54.765*71.427*15.9mm
Torque Capacity :
199Nm
Warranty :
1 Year
Bore diameter :
54.575mm
OEM :
Accept
Package :
Carton Box or Wooden Case
Description

DC5476 BW13214 Centrifugal Backstop Cam Clutch

Features

Description: sprag freewheel clutches
Material: Chrome Steel GCr15
Structure: Single row sprag type freewheel without inner or outer races
Surface hadrness: HRC60 to 62, for a depth of 0.6mm minimum
Core hardness: HRC35 to 45
Sample: accept
Application: Truck / Hydraulic Forklift
Payment terms: TT, L/C, D/A, D/P, Western Union, Paypal


Type DC BWC BWX is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.

Dimension and Capacity


DC5476 BW13214 Centrifugal Backstop Cam ClutchDC5476 BW13214 Centrifugal Backstop Cam Clutch

Type Inside shaft Diameter Outside Shaft Diameter Maximum Width Rated Drag Torque
Di Sprag Space De Sprag Space B N.M (kgf.m)
x-135006 54.572 +0.008-0.005 71.211 ±0.013 20.5 799 (81.5)
BW-13231

54.765

—

71.427

—

 13.5 402 (41.0)
BW-13214 15.9 363 (37.0)
BW-13167 15.9 569 (58.0)
BW-13209

57.760

—

74.427

—

 13.5 554 (56.5)
BWC-13239B 15.9 711 (72.5)
BW-13238 21.0 1050 (107)
X-133401 59.538 — 76.200 — 25.4 1350 (138)
BW-13243

72.217

—

88.882

—

 13.5 637 (65.0)
BWC-13168 21.0 1510 (154)
BWC-13229 21.6 1325 (135)
BW-13255 26.7 1920 (196)
X-133614C 83.596 ±0.013 102.555 — 25.4 3040 (310)
X-133402 85.776 — 104.775 — 25.4 3090 (315)
BWC-13251

103.231

—

119.944

—

 15.4 789 (80.5)
BWC-13261 15.4 1580 (161)
X-133639 103.231 — 122.230 — 25.4 4410 (450)
X-133403 123.881 — 142.880 — 25.4 5740 (585)

Pictures

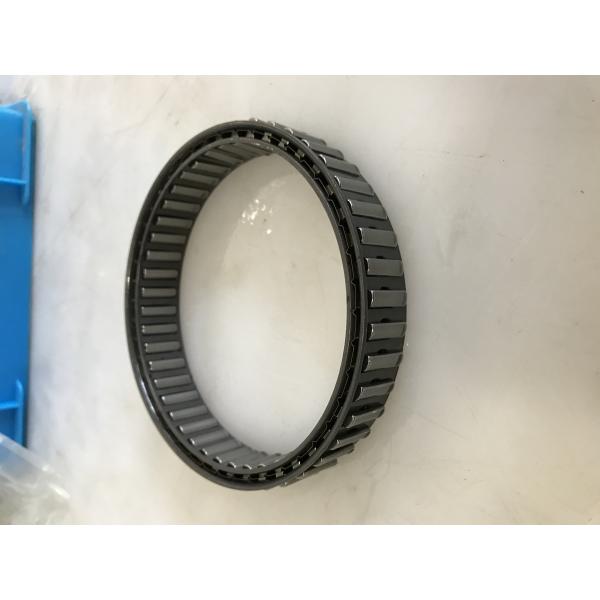

DC5476 BW13214 Centrifugal Backstop Cam Clutch
